Paralleling relay – type HAS-111DG
The HAS-111DG synchroniser is applied to check the synchronisation conditions. It can be used in installations requiring manual or semi-automatic synchronisation (e.g. tie breakers).
Features include
> Synchronisation of generator to busbar
> Setting of phase angle difference
> Setting of frequency and voltage difference
> LED indication of status
> LED for synchronising signal
> 35 mm DIN rail or base-mounting
The paralleling relay transmits a synchronisation pulse when the phase angle, frequency and voltage deviations are within the set limits. Moreover, the HAS-111DG is equipped with 2 analogue outputs. These outputs can be used for regulating purposes together with DEIF A/S Load Sharing Units
|
|
control of generators, and is primarily designed for marine applications.
Back RELATED PRODUCTS
EQ Analogue Instruments
DOCUMENTATION
Application Notes
Differential current relays
Interfacing DEIF equipment to gover...
Uni-line
Installation Instruction
Approval/Certification
ABS - 04-LD438860/1
BV - 07644/B0 BV
CCS - GB07T0023-04
CNK No. TA05255M
DNV - A-10824
GL - 11 349-98 HH
KRS - CPH06107-AC002
LR - 98/20022
PRS - TE/1696/880465/07
RINA ELE/35201CS1
UL file 233044
GOST-R 9031803900
Marine Approval - RRR 432-4.4.3-06
RS - 04.10094.262
Type Certificate
Data Sheets
Table of Products
|
|
Differential current relay - type RMC-131D
Differential current relays protect the generator against short circuits and leakage currents in the windings of the generator.
Features include
> Measurement of 3-phase currents
> Non-stabilised measurement
> LED indication of fault condition
> Timer-controlled tripping
> LED indication for activated relay
> Extra change-over relay contact for signalling
> 35 mm DIN rail or base-mounting
The protective differential current relay type RMC-131D forms part of a complete DEIF series of relays for protection and control of generators, and is primarily designed for marine applications.
|
|
|
|
|
|
Multi-Differential Relay – MDR-2 – digital speed and accuracy, maximum reliability
The MDR-2 is a differential current relay intended for protection of a generator against internal short circuits (leaking currents). It is based on a 16-bit digital signal processor providing maximum performance and reliability.
Features include
> Response time 50 ms
> 3-phase detection of current on primary and secondary side of the generator
> Active, adjustable compensation of non-balanced current measurements
> Measuring accuracy 1%
> Stress-free configuration and operation via clear and simple menu structure
> DIN-rail or base-mounting with remote mountable display
> Approved according to LR, GL, etc.
All measured and calculated values are shown in clear text and numbers on the large LCD display (allowing significant savings on purchase and wiring of external meters).
Available options include a block (generator + step-up transformer) protection option and a short-circuit and overcurrent protection option.
|
|
RGU-10 (earth leakage protection relay)
- Instant current leakage and pre-alarm display
- Small size. Just 3 modules
- Type A super-immunized earth-leakage protection, suitable for the new industrial environment
- High frequency current filtering
- Programmable sensitivity and delay times
- Integration into the energy control system of the installation, using RS-485 communications
- Option for earth-leakage reclosing and overload/short circuit protection
CBS-4 (multipoint earth leakage scanning sytem)
- 4 RGU-10 in one single equipment
- Small size. Just 3 modules
- Reduces occupied space and wiring time
- RS-485 Communications
|
|
Product Features:
- To be used with CT-1 transformers.
- Modular size. DIN rail mounting .
- Sealable front cover
|
|
RGU-10 / CBS-4 Family. Inteligent protection
RGU-10
-Instant current leakage and pre-alarm display
- Type A super-immunized earth-leakage protection, suitable for the new industrial environment
- High frequency current filtering
- Programmable sensitivity and delay times
- Small size. Just 3 modules
- Integration into the energy control system of the installation, using RS-485 communications
- Option for earth-leakage reclosing and overload/short circuit protection
CBS-4
- 4 RGU-10 in one single equipment
- Small size. Just 3 modules
- Reduces occupied space and wiring time
|
|
|
|
|
|
RED615, member of ABB's 615 product series, is a phase-segregated two-end line differential protection and control IED perfectly harmonized for utility and industrial power systems, including looped and meshed distribution networks with or without decentralized power generation. Re-engineered from the ground up, the new 615 series has been designed to unleash the full potential of the IEC 61850 standard for communication and interoperability of substation automation equipment.
RED615 provides phase-segregated high speed, longitudinal differential protection for overhead line and cable feeders in distribution networks. Two RED615s interconnected over a communication link form an absolutely selective unit protection scheme. Protection of ring-type and meshed distribution networks generally requires unit protection solutions, also applied in radial networks containing distributed power generation.
Due to the ready-made adaptation of RED615 for the line differential protection, the IED can be rapidly set up and commissioned, once it has been given the application-specific IED settings. If the IED needs to be adapted to the special requirements of the intended application, the flexibility of the RED615 allows the IED's standard signal configuration to be adjusted.
|
|
MIB High Impedance Busbar Differential Relay
MIB High Impedance Busbar Differential Relay
The MIB, a member of the M II family of economical and highly functional digital protection relays, is a microprocessor based relay that provides three phase high impedance differential protection for Substation Bus-bars of any voltage level.
Use the MIB also to protect electrical machines like transformers, generators or motors against restricted earth faults.
Basic protection functions features include a high impedance differential protection unit with a tripping time of 1 1/2 cycles. Stability against external faults is guaranteed thanks to the use of a stabilizing resistor. The unit includes a set of MOVs (Metal Oxide Varistors) provided to clamp the secondary peak voltage below 2kV during fault conditions.
The relay includes open CT detection which provides an alarm when it detects sustained current unbalance conditions, issuing a warning signal and blocking the operation of the unit.
|
|
|
|
|
|
SIPROTEC 4 7UT6 are used for fast and selective fault clearing of short-circuits in transformers of all voltage levels and also in rotating electric machines like motors and generators, for short lines and busbars. The protection relay can be parameterized for use with three-phase and single-phase transformers.
Differential protection for
• 2- up to 5-winding transformers (3-/1-phase)
• motors and generators
• short 2 up to 5 terminal lines
• busbars up to 12 feeders (phase-segregated or with summation CT)
Protection functions
• Differential protection with phase-segregated measurement
• Sensitivemeasuring for low-fault currents
• Fast tripping for high-fault currents
• Restraint against inrush of transformer
• Phase/earth overcurrent protection
• Overload protection with or without temperature measurement
• Negative-sequence protection
• Breaker failure protection
• Low/high-impedance restricted earth fault (REF)
• Voltage protection functions (7UT613/633)
Flexible communication interface, eg. IEC 61850 Ethernet protocol.
|
|
|
The L90, a member of the UR family of protection relays, is a digital current differential relay system which provides protection for transmission lines. It may be applied on or adjacent to series compensated lines for three phase tripping. The L90 utilizes an innovative current differential scheme with adaptive restraint that allows the relay to operate correctly even when fault currents are distorted by harmonics or CT saturation. Models are available for application on transmission lines with 2 or 3 terminals. The relay may be used as a standalone device or as a component of an automated substation control system.
|
|
High-performance protection relays for the protection of distribution systems and HV/MV substations
Description
Range of digital protection relays, ready-to-use, providing all the functions required by an application:
complete protection against internal transformer faults
restricted earth fault protection included
simple implementation due to the use of neural networks
metering
alarms and indication
control monitoring and diagnosis
communication
Two applications:
D32:three-winding differential protection for public and industrial distribution network.
D31: three-winding differential protection for HV/MV substations.
|
|
|
|
|
|

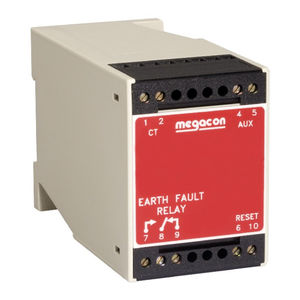

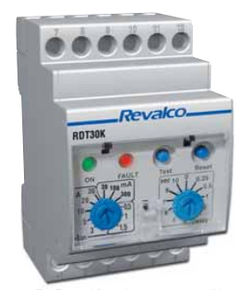

Earth Leakage Relays
TemProtect Earth Leakage Relays are used to monitor earth fault current with a view to protect electrical equipment and personnel against the dangers of such faults.
Owing to the wide range of applications for the use of earth leakage protection, TemProtect has been designed to be as flexible as possible. The range includes relays suitable for installations with DIN rail, Panel or Base Mounting. All relays are suitable for use on a.c. systems and will be unaffected by d.c. components which may be present.
A range of combined relay and toroidal current transformer is also readily available.
The relays filter circuit inputs to safeguard against external disturbances in the system and offer the additional advantage of integral Test and Reset buttons, as well as integral Indication of Power and Trip.
All the Earth Leakage Relays which have separate toroidal transformers constantly monitor the connection to the toroid and will trip should an open circuit occur. They also offer the choice of automatic, manual or remote resetting after a fault has occurred.
All the relays comply to international standards including IEC 255.
|
|

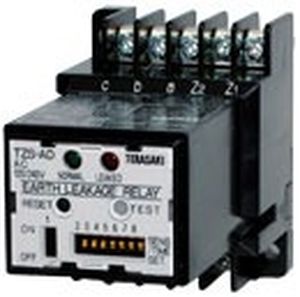

TZS Series Earth Leakage Relays:
These seperate type relays offer flexible selectivity coordination for earth leakage currents.
|
|
|
|
|
|
The 7SD60 relay is a numerical current differential protection relay, simple to set, operating in conjunction with the remote station via a two pilot-wire link. It is connected to the primary current transformers via an external summation current transformer. The primary field of application of the relay is protection of short overhead lines and cables with two line ends. However, transformers and reactors may be located within the protection zone.
Function overview
• Current differential protection with external summation current transformer 4AM49
• Suitable for use for distances of 12 km max. via two pilot-wires
• Differential protection can be combined with overcurrent release
• Pilot-wire monitoring function
• Bidirectional remote tripping
• Circuit-breaker intertripping at the remote station
• Seal-in of the TRIP command until manual reset (Lockout function)
• Minimal current transformer requirements due to integrated saturation detector
• Restraint against inrush / undelayed trip for high differential fault currents
• Emergency overcurrent protection
Operational measured values
• Local and remote current
• Differential current
• Restraint current
|
|
The 7SD610 relay is a differential protection relay suitable for all types of applications and incorporating all those functions required for differential protection of lines, cables, transformers and busbars. Transformers and compensation coils within the differential protection zone are protected by means of integrated functions, which were previously to be found only in transformer differential protection. It is also well-suited for complex applications such as series and parallel compensation of lines and cables.
It is designed to provide protection for all voltage levels and types of networks; two line ends may lie within the protection zone. The relay features very high-speed and phase-selective short-circuit measurement. The unit is thus suitable for single-phase and three-phase fault clearance.
Digital data communication for differential current measurement is effected via fiber-optic cables, networks or pilot wires connections, so that the line ends can be quite far apart.
|
|
|
|
|
|
7SD5 relay provides full scheme differential protection and incorporates all functions usually required for the protection of power lines. It is designed for all power and distribution levels and protects lines with two up to six line ends, to provide high-speed and phase-selective fault clearance.
Application
• Differential protection with phase-segregated measurement
• Sensitive measuring stage for high-resistance faults
• Non-switched distance protection with 6 measuring systems
• High resistance ground (earth)-fault protection for 1 and 3-pole tripping
• Phase-selective intertripping
• Tele (pilot) protection
• Weak-infeed protection
• Fault locator
• Power swing detection/tripping
• 3-stage overcurrent protection
• STUB bus protection
• Switch-onto-fault protection
• Over/undervoltage protection
• Over/underfrequency protection
• Auto-reclosure
• Synchro-check
• Breaker failure protection
• Overload protection
• Lockout function
Digital communication via
• fiber-optic cables
• digital communication networks
• pilot wires or ISDN connections
|
|
