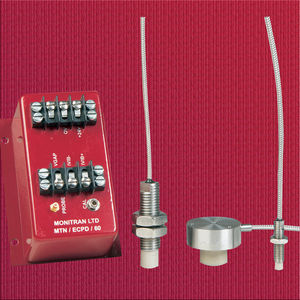

Non-contact displacement sensors using eddy current technology measure distances, displacements, or positions of any electrically-conductive target. These objects may have both ferromagnetic and non-ferromagnetic properties. Due to the high insensitivity to oil, dirt, dust, moisture, interference fields, etc. the eddy current principle is ideally suited to applications in harsh industrial environments. Eddy current transducers designed for industrial use in factory automation, for machine monitoring, for inspection and for measuring and testing.
Measure without contact of metal displacements of objects in beaches of 0-2 mm to 0-12 mm
Linearity 1% of the measurement bracket
Frequency of measurement up to 10 Khz allowing the observation of vibratory phenomena
Stainless steel construction, sealing IP 65
Operating temperature of -30°C with +180°C
Analogical exit in tension or running
The MTI Instruments Apex Series Eddy current probes offer superior performance at an economical price. flexible in design, these systems allow custom configurations to match your process needs. With linear measurement ranges from 0.5 mm to 50 mm and frequency response of up to 10 kHz, they are ideal for displacement and vibration applications that require high-speed, rugged sensors. Eddy current detection have unique advantages over other non-contact measurement technologies in that they are unaffected by water, oil or other contaminants in the measurement area.
The MIZ-21B offers all of the technology, packaging, and user interface enhancements of the MIZ-21SR. It incorporates the power of dual-frequency testing, digital conductivity testing, and nonconductive coating thickness measurement. Its industry standard 50-ohm probe drive provides the optimum balance between probe input and instrument output. Yet it's priced to provide excellent value when you need a dedicated eddy current instrument.
