wall mounted stainless steel junction box, and Smart cabinets with a single front door in finely polished Aisi 304 EN-1.4301 stainless steel.
Its monobloc manufacture allows protection up to IP66 with a maximum resistance of IK10 complying with EN-60529 and EN-50102 standards and Nema 4x by UL. A drainage channel prevents any liquid contact with the polyurethene joint or hidden hinges.
Complies with all EC regulations.
• Specially designed for placing switches, machine controls, meters and other cases where a high quality and a high resistance are required while keeping an attractive appearance
• Officially approved for food, chemical, pharmaceutical, transformer and telecommunication industries for both inside and outside use due to the advantages of its high resistance to chemical agents and its durability
• delvalle serves to order any measurements required, including custom built holes and cut outs both for door and case.
• All models in stock for immedate delivery.
Special solutions:
• Built to individual requirements
• Stainless steel plinths
• Metal legs
• Window door
• Manufactured in Aisi 316 EN-14401 stainless steel
• Top quality electromagnetic EMC protection between frame and contact surfaces, guaranteeing a perfect electrical connection following EEC regulation 89/336.
|
|
Proline
- Industrial cabinet with type of protection IP 55
- Welded steel frame
- Static load-carrying capacity 600 kg
- Also available as EMC version
eurorack
- Type of protection up to IP 40
- Static load-carrying capacity 400 kg
- Frame dividable
- EMC versions also available
minirack
- Type of protection up to IP 20
- Side with built in handle
- Static load-carrying capacity 200 kg
Cabinet control system s-guard
- Stand alone and flexible security system for remote control, control and message all safety values of climate and operation of networking devices
Socket strips
- socket strips: SCHUKO, UTE, IEC and US
|
|
|
|
|
|
ELECTRICAL CABINET AND BOX
Smart 1.5mm. stainless Monobloc IP66 single-door wall cabinet, with ample mounting space.
Its Monobloc design and seamless polyurethane joints provide IP66 protection and impact resistance IK10 in accordance with EN-60529 and EN-50102 standards. Channel flashing prevents liquids coming into contact with polyurethane joint and concealed hinges. Bolts included, 130º door opening. To open the doors a standard 5 mm double bit is fitted.
Built in compliance with CE regulations. UL Nema 4.12 and 13. compliant.
• Specially designed for applications where controllers, meters, heating, air conditioning, control systems are fitted.
• Standard Epoxy-Polyester Textured Ral 7032 or 7035 paint.
• delvalle can make any measurement to order on request , including holes, shaped channelling, both on the door and the housing, in addition to any other colour of paint required.
Special solutions:
• Customised to your measurements.
• Plinths
• Roof to protect from sun, rain, etc.
• Metal feet.
• Cable pass through lower cover.
• Transparent polycarbonate door.
• Manufactured in stainless steel AISI 304 or 316. EN 14401.
• Insulating mounting plate (Bakelite) or painted steel.
• EMC protection joint between the frame and the contact surfaces. Ensuring perfect electrical connection. CEE 89/336 standard.
|
|
- principal design based on extremely strong, chamfered and welded sheet steel construction
- 1.5 mm body, 2.0 mm door and back plane sheet steel
- zinced mounting plate, 3 mm zinced sheet steel
- powder coated, RAL 7032 structure
- earthing for body, door, and mounting plate
- foamed PU door gasket / high protection class (>IP 55, EN 60529 / double door model: IP 54)
- hinges open 120°
- sash fastener with 3 mm double bit
- removable back plane
- sturdy two-piece bottom plates
- auxiliary components like plinths, wall mounting lugs, transport units, different locking systems and other accessories available as listed in Accessories for Floor Standing Enclosures, System Accessories, and on request
|
|
|
|
|
|

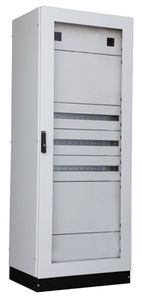

FLOOR STANDING CABINETS
The Floor-Standing Cabinets of the Argenta–Plus series comprise a set of industrial metal enclosures designed
to contain any type of electrical devices and equipment necessary for the supply, distribution and conversion
of electricity, and suitable for control and automation equipment for plants and machine tools.
This range of cabinets has been designed for maximum versatility, so that the installer can implement their
own arrangements depending on the needs of the installation. Functionality is high thanks to the various
possibilities for linking cabinets together, the possibility of installing any type of electrical devices, and the
complete range of accessories available for this series.
Intended for the most professional sector, the range is available in two versions: COMBINABLE, supplied
ready-assembled and COMPACT. Both are available in opaque-and transparent-door versions. They are made
from high-quality materials, in cold-rolled steel sheeting, achieving protection degree IP55, and a height of
up to 2 metres.
|
|
|
Even in the toughest ambient conditions. Current examples include: Compact, secure technologies for Industrial Ethernet, enabling simple modifications to production procedures. Modular enclosure technology is advantageous in terms of the rapid assembly and adaptation of controllers. At the human/machine interface, your ergonomic requirements are precisely realised with the Command Panel and Industrial Workstations.
|
|
|
It is largest of electric box and the selection range was made more expensive, and it was New technology of the plastic Box. Big Box selected and supported by the packing development institute of industrial design. Through the use of special waterproof and dustproof tests, contained parts are protected well. The use is simple as big type Sensoe, Relay Box, Sleeve, Power Water Tool Box, Junction Box and Control Box. The dimension is 600x800x120 mm. All of the products are waterproof and dust-free. (IP66~67 NEMA 4X) Refer to the general catalogue of HIBOX on Direct-Industry or www.dsehibox.com
|
|
The new CS compact enclosure is the ideal solution for applications where a larger wall mounting box than ETA "ST" range or a smaller free-standing cabinet than ETA "ATB8" range is requested.
Ergonomic design and solid construction are the key features of the CS enclosure, together with the possibility to fit standard ETA system accessories and a large cable entry opening.
This new product line will be offered in 6 single door sizes ranging from 600x1200x400 to 800x1400x400 and 6 double door sizes from 1000x1200x400 to 1200x1400x400.
|
|
|
|
|
|
IP65 WALL MOUNTING METAL CABINETS
The ARGENTA Series includes a group of metal enclosures used to house on the inside the electrical or
electronic switchgear, controlgear and equipment necessary to supply, distribute and electricity.
Mainly destined for industrial electrical installations as enclosures for measurement, transmission, signposting and control equipment or as enclosures for all the equipment necessary to coordinate the different electrical currents. The ARGENTA Series includes 41 standard models of metal enclosures, all of
which are manufactured in opaque door version.
The design and manufacture of this product line is sufficiently flexible so as to adapt to special executions
that require specific dimensions in agreement with user and installation requirements. Enclosures made
with high quality materials in cold-rolled steel plate of up to 2 mm thick and coated with RAL 7035
hardened epoxy-polyester paint.
This series is accompanied by a set of accessories that complete the scope of application of the product:
mounting plates, inner doors, canopies, elevation eyebolts, ventilation systems, etc.
|
|
|
Give us your statement of conditions, we have the know-how and experience to wire your electrical cabinets and boxes, whatever the final application.
|
|
METALLIC DISTRIBUTION SWITCHBOARDS
ATLANTIC Series of metal distribution cabinets have been developed and designed to fulfill an efficient and safe electrical installation where both, technical and aesthetic aspects are demanded.
Easy handling and improved working space are due to their flexibility and reduced number of fixing components, therefore these cabinets are an excellent tool for any type of low voltage-electrical installation.
They are available in different versions depending on use and installation requirements: Surface or flush-fit mounting, watertight enclosures...
This new line of products is well complemented with a serie of accessories providing to the installer versatility and integral solutions to their needs.
|
|
A range of cabinet with multiple doors for the LV Power distribution created on the Areta structure.
Specific mounting kit allows the fitting out of:
- Front with door modules complete of with a self-lining locking system.
- Split cubicles with mounting plate adjustable in depth.
The Areta modularity together with a special union system make possible the joining of different modules.
The Areta multiple doors cabinets are supplied mounted, for this reason in case of order please specify the door disposition and the opening direction.
Protection degree: IP 55, according to EN60529.
Paint finish: Eta standard epoxy polyester powder coating.
|
|
|
This is 9 range of boxes and enclosures able to house from 4 to 16 modules of 18 mm. Depending on the model, they are made in self-extinguishing or metallic material, equipped with DIM rails to incorporate modular equipment and have a wide range of accessories in the case of the CRD-CMD models, such as partial and total mounting plates, busbar supports, reinforced rails, etc that allow for large-scale industrial assembly.
|
|
Liebert offers a wide variety of racks and enclosures. From basic to fully integrated and self-contained with air conditioning, UPS and wiring management.
Knurr - Our Knurr 19” racks provide a fully assembled aluminum extruded frame with a patented T Slot, offering many quick mount options. The enclosure is offered in heights of 42U and 47U, widths of 24” and 32” and depths of 40”, 44” and 48”.
Liebert Foundation MCR: The Liebert Foundation MCR (Mini Computer Room) is an air conditioned cabinet with integrated UPS protection and cooling, designed to ensure the long-term viability of IT equipment.
Liebert XDF - is a secured enclosure with integrated high heat density cooling, providing the benefits of big room support in a cost-effective package. Air or water cooled.
|
|
Current Transformer Screw Cover Cabinets
Current Transformer Hinged Cover Cabinets
CT Mounting Base
400-800 Amp Current Transformer Cabinets (for Window-Type Current Transformers)
Current Transformer Cabinets: Screw Cover with Steel Foot Mount Panel
Current Transformer Cabinets: Vented Double Door
Current Transformer Cabinets: Lift-Off Cover with Wood Panel
Current Transformer Cabinets: Hinged Screw Cover with Steel Panel
Current Transformer Cabinets: Hinged Double Door with Three-Point Latch
Current Transformer Cabinets: 400 and 800 Amp Bar-Type Mount with Line/Load Lugs
Current Transformer Cabinets: Type 3R Three-Phase 400-1200 Amp with Mechanical Lugs
|
|
Meets a large numbres of installation needs in industrial and similar premises. With a modern and attractive design it blends well into any seetting.
In version IP66, the DOMINO Systems offers a complete range of consumer units and sealed mounted enclosures for distribution assemblies. They are extremely flexible in the ways they can be used and may also be englarged.
|
|
|
GE's multipurpose enclosure range for indoor and outdoor applications has the answer when you're in need for permanent and safe protection of electrical and electronic equipment.
|
|
GENERAL DISPATCHING SC
Located downstream from a MV / LV construction site station or metering cabinet yellow rate connected to the public network.
Located upstream from the distribution, plug socket or block system cabinets (our APG, AS, LM, CR, CD and CNT series) Are designed to separate the construction site%u2019s main electric circuits. Provide selective protection of the various outgoing cables towards the cabinets located downstream. For power up to 1500 KVA (or 2000A).
|
|
2 types of enclosures are available, PLOMBIERES which is a monobloc enclosure and BLIGNY which allows to give the possibility to take out the back panel to make easier the wiring. These enclosures were designed to be able to receive customized mounting systems thanks to possibilities of steel and isolating modular distribution and accessories. The PLOMBIERES range is composed by 17 references with 7 different heights as the BLIGNY range has 20 references with 3 different heights.
These 2 ranges are completed by a wide range of accessories as the modular chassis, rails for brass terminals, depth adjustable brackets, vertical, width and depth profiles, ...
|
|
MODULAR ENCLOSURES FLEUREY
The FLEUREY enclosures have been designed as a complement of BLIGNY enclosures. They are welded made of sheet steel 15/10. The top and the base have been welded to the vertical pieces of the body giving more rigidity. The back and side panels are easy to install by quick fixing out. Enclosures FLEUREY have got 3 heights, 4 widths and 3 depths which is traduced in 33 types.
This range is completed by a wide range of accessories as the modular chassis, rails for brass terminals, depth adjustable brackets, vertical, width and depth profiles, ...
|
|
Cierre Progetta and produces to Electronic Cards, Modules and ended and resinati Pictures of power, Cables; on specific or design of the Customer.
|
|
AS SERIES
Control panels designed for larger construction sites. The ASI series is particularly well suited to industrial construction sites: 400V neutral-free three-phase network.
|
|
CR SERIES
Intended for secondary distribution on construction sites, for the different areas of the construction trade and for dispatching power to different floors of buildings being constructed or renovated.
|
|
4.1 CONNECTION AND METERING SC – BLUE RATE CP SERIES
When power required is less than or equal to 36 KVA Essential for all companies that obtain their energy from a public network. Combines standardised metering with employee protection. Meets the French electricity board's requirements for provisional electrical connections.
|
|
4.2 CONNECTION AND METERING SC – YELLOW RATE CGO SERIES
When power required is higher than 36 KVA and less than or equal to 250 KVA
Essential for temporary power supplies on construction sites from a MV / LV 400V public distribution station.
Meets the French electricity board's requirements for provisional electrical connections.
|
|
- quality sheet steel, body 1.25-1.5 mm gauge (depending on model), door 1.5 mm gauge
- zinced mounting plate, 2.5 mm gauge
- surface protected by powder coating, RAL 7032 structure
- earthing for body, door, and mounting plate
- foamed PU door gasket / high protection class (>IP 55, EN 60529 / double door model: IP 54)
- hinges open 140°/180° to the right, DIN compliant
- available in many sizes, pre-configured ready for use
- sash fastener 3 mm double bit (bar lock for 1200 mm or taller models), can be exchanged for any other common lock system
- zinced mounting plate provides basic EMV protection
- cable entry through sheet steel bottom gland plate
- rail systems, glazed doors, wall mounting lugs, locking systems and other accessories available as listed in Accessories for Wall Mounted Enclosures or on request
- Wall Mounted Enclosures also available in stainless steel
|
|
Meets a large numbres of installation needs in industrial and similar premises. With a modern and attractive design it blends well into any seetting.
In version IP66, the DOMINO Systems offers a complete range of consumer units and sealed mounted enclosures for distribution assemblies. They are extremely flexible in the ways they can be used and may also be englarged
|
|
|
|
|
|
This chapter illustrates the technical characteristics of FM enclosures for distribution
boards and of ILME industrial socket-outlets for which these enclosures are
designed.
It is possible to use SQ interlocked socket-outlets for industrial use (with or without
protection devices), simple flush-mounting Pluso socket-outlets (without interlock)
and compartments for modular units.
These components enable to configure a wide range of distribution boards, both
mass-produced (AS) and custom-made (ANS), suitable to meet all possible installation
needs.
FM enclosures for distribution boards offer tested reliability and can be used, in combination
with FM socket-outlets for industrial use, as integrated modular systems to
configure distribution boards for industrial socket-outlets. Distribution boards with
ILME enclosures and socket-outlets can be installed in:
- Industrial applications
- Services applications (commercial, exhibitions, etc.)
- Agricultural and livestock breeding applications
- Residential and similar applications (i.e. common areas of condominiums, cellars,
garages, community buildings, kitchens, etc.).
|
|
|
|
