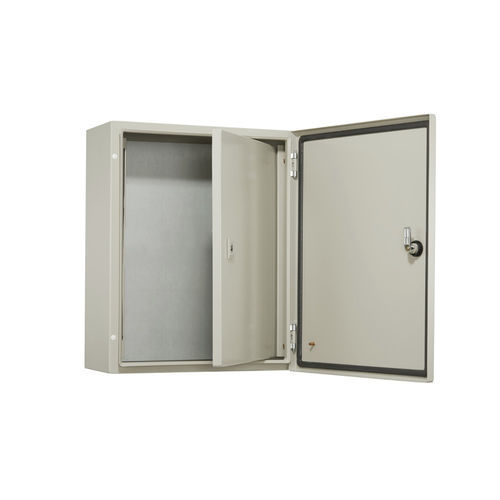

Distribution electrical cabinet I series

controlwall-mountedgalvanised steel

Material: body, front door, gland plate mild steel. Mounting plate: galvanised steel. Surface finishing: Powder coating RAL 7035 or RAL 7032, RAL 2000 for option. Mounting plate: galvanised steel or RAL2000 orange color painting for option. IP rating: IEC EN60529, IP66, NEMA 4. K rate: IK 10. Standard: IEC 62208 (enclosure standards). - Body, hinged door, gland plate, mounting plate, assembly parts - 3.0mm reinforced glazed door - Internal door Supply include: body,hinged door,gland plate,mounting plate,assembly parts For glazed door cabinet: body,hinged door,gland plate,mounting plate,assembly parts,3.0mm reinforced glazed door For interal door cabinet: body,hinged door,gland plate,mounting plate,assembly parts,internal door Iron thickness: Door, body, MP: 1.2/1.2/1.5 Size H800 X W600 (mm) Door, body, MP: 1.5/1.5/2.0 Size ≥ H800 X W600 (mm) Metallic Wall mounted cabinet - Material: Mild steel body, front door, and gland plate - Mounting plate: Galvanised steel - Surface finishing: Powder coating RAL 7035 or RAL 7032, RAL 2000 optional - IP rating: IEC EN60529, IP66, NEMA 4 - IK rate: IK 10 - Standard: IEC 62208 (enclosure standards) H W D No.of lock Product code with glazed door Product code (with internal door Product code(with glazed door+internal door) 400 300 150 1 I-400300150-G I-400300150-N I-400300150-NG 400 400 150 1 I-400400150-G I-400400150-N I-400400150-NG 500 300 150 1 I-500300150-G I-500300150-N I-500300150-NG 500 400 150 1 I-500400150-G I-500400150-N I-500400150-NG 500 500 150 1 I-500500150-G I-500500150-N I-500500150-NG 600 400 150 2 I-600400150-G I-600400150-N I-600400150-NG 600 500 150 2 I-600500140-G I-600500140-N I-600500140-NG 400 300 200 1 I-400300200-G I-400300200-N I-400300200-NG 400 400 200 1 I-400400200-G I-400400200-N I-400400200-NG 400 600 200 1 I-400600200-G I-400600200-N I-400600200-NG 500 300 200 1 I-500300200-G I-500300200-N I-500300200-NG 500 400 200 1 I-500400200-G I-500400200-N I-500400200-NG 500 500 200 1 I-500500200-G I-500500200-N I-500500200-NG 600 400 200 2 I-600400200-G I-600400200-N I-600400200-NG 600 500 200 2 I-600500200-G I-600500200-N I-600500200-NG 600 600 200 2 I-600600200-G I-600600200-N I-600600200-NG 700 500 200 2 I-700500200-G I-700500200-N I-700500200-NG 700 600 200 2 I-700600200-G I-700600200-N I-700600200-NG 800 600 200 2 I-800600200-G I-800600200-N I-800600200-NG 800 800 200 2 I-800800200-G I-800800200-N I-800800200-NG 1000600 200 3 I-1000600200-G I-1000600200-N I-1000600200-NG 1000800 200 3 I-1000800200-G I-1000800200-N I-1000800200-NG 1200600 200 3 I-1200600200-G I-1200600200-N I-1200600200-NG 1200800 200 3 I-1200800200-G I-1200800200-N I-1200800200-NG 400 400 250 1 I-400400250-G I-400400250-N I-400400250-NG 400 600 250 1 I-400600250-G I-400600250-N I-400600250-NG 500 400 250 1 I-500400250-G I-500400250-N I-500400250-NG 500 500 250 1 I-500500250-G I-500500250-N I-500500250-NG 600 400 250 2 I-600400250-G I-600400250-N I-600400250-NG 600 500 250 2 I-600500250-G I-600500250-N I-600500250-NG 600 600 250 2 I-600600250-G I-600600250-N I-600600250-NG 700 500 250 2 I-700500250-G I-700500250-N I-700500250-NG 800 600 250 2 I-800600250-G I-800600250-N I-800600250-NG 800 800 250 2 I-800800250-G I-800800250-N I-800800250-NG 1000600 250 3 I-1000600250-G I-1000600250-N I-1000600250-NG 1000800 250 3 I-1000800250-G I-1000800250-N I-1000800250-NG 1200600 250 3 I-1200600250-G I-1200600250-N I-1200600250-NG 1200800 250 3 I-1200800250-G I-1200800250-N I-1200800250-NG 500 400 300 1 I-500400300-G I-500400300-N I-500400300-NG 600 400 300 2 I-600400300-G I-600400300-N I-600400300-NG 600 500 300 2 I-600500300-G I-600500300-N I-600500300-NG 600 600 300 2 I-600600300-G I-600600300-N I-600600300-NG 700 500 300 2 I-700600300-G I-700600300-N I-700600300-NG 800 600 300 2 I-800600300-G I-800600300-N I-800600300-NG 800 800 300 2 I-800800300-G I-800800300-N I-800800300-NG 1000600 300 3 I-1000600300-G I-1000600300-N I-1000600300-NG 1200600 300 3 I-1200600300-G I-1200600300-N I-1200600300-NG 1000800 300 3 I-1000800300-G I-1000800300-N I-1000800300-NG 1200800 300 3 I-1200800300-G I-1200800300-N I-1200800300-NG 1400800 300 3 I-1400800300-G I-1400800300-N I-1400800300-NG 800 600 400 2 I-800600400-G I-800600400-N I-800600400-NG 800 800 400 2 I-800800400-G I-800800400-N I-800800400-NG 1000600 400 3 I-1000600400-G I-1000600400-N I-1000600400-NG 1000800 400 3 I-1000800400-G I-1000800400-N I-1000800400-NG 1200600 400 3 I-1200600400-G I-1200600400-N I-1200600400-NG 1200800 400 3 I-1200800400-G I-1200800400-N I-1200800400-NG 1400800 400 3 I-1400800400-G I-1400800400-N I-1400800400-NG
