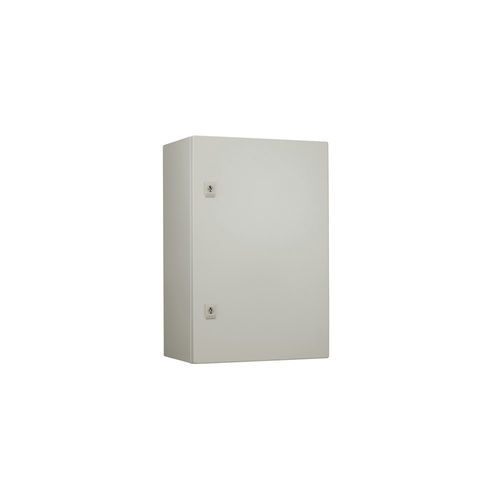

Wall-mount enclosure I series

for DIN railrectangularhexagonal

Material: body,front door,gland plate mild steel Mounting plate:galvanised steel Surface finishing: Powder coating RAL 7035 or RAL 7032 ,RAL 2000 for option Mounting plate:galvanised steel or RAL2000 orange color painting for option IP rating: IEC EN60529,IP66,NEMA 4 IK rate: IK 10 Standard: IEC 62208(enclosure standards) Supply include: body,hinged door,gland plate,mounting plate,assembly parts For glazed door cabinet: body,hinged door,gland plate,mounting plate,assembly parts,3.0mm reinforced glazed door For interal door cabinet: body,hinged door,gland plate,mounting plate,assembly parts,internal door Iron thickness: door,body,MP: 1.2/1.2/1.5 Size H800 X W600 (mm) door,body,MP: 1.5/1.5/2.0 Size ≥ H800 X W600 (mm) Metallic Wall mounted cabinet Product codesingle door) H W D No.of lock Gland open I-200200150 200 200 150 1 H1 I-250200150 250 200 1 H1 I-250250150 250 250 1 H2 I-300200150 300 200 1 H1 I-300250150 300 250 1 H2 I-300300150 300 300 1 H3 I-300400150 300 400 1 H3 I-400300150 400 300 1 H3 I-400400150 400 400 1 H3 I-500300150 500 300 1 H3 I-500400150 500 400 1 H3 I-500500150 500 500 1 H5 I-600400150 600 400 2 H4 I-600500140 600 500 2 H5 I-300250200 300 250 200 1 H2 I-300300200 300 300 1 H3 I-300400200 300 400 1 H3 I-400300200 400 300 1 H3 I-400400200 400 400 1 H3 I-400600200 400 600 1 H5 I-500300200 500 300 1 H3 I-500400200 500 400 1 H4 I-500500200 500 500 1 H5 I-600400200 600 400 2 H4 I-600500200 600 500 2 H5 I-600600200 600 600 2 H5 I-700500200 700 500 2 H5 I-700600200 700 600 2 H5 I-800600200 800 600 2 H5 I-800800200 800 800 2 H4 X 2PCS I-1000600200 1000 600 3 H5 I-1000800200 1000 800 3 H4 X 2PCS I-1200600200 1200 600 3 H5 I-1200800200 1200 800 3 H4 X 2PCS I-400400250 400 400 250 1 H4 I-400600250 400 600 1 H5 I-500400250 500 400 1 H4 I-500500250 500 500 1 H5 I-600400250 600 400 2 H4 I-600500250 600 500 2 H5 I-600600250 600 600 2 H5 I-700500250 700 500 2 H5 I-800600250 800 600 2 H5 I-800800250 800 800 2 H4 X 2PCS I-1000600250 1000 600 3 H5 I-1000800250 1000 800 3 H4 X 2PCS I-1200600250 1200 600 3 H5 I-1200800250 1200 800 3 H4 X 2PCS I-500400300 500 400 300 1 H4 I-600400300 600 400 2 H4 I-600500300 600 500 2 H5 I-600600300 600 600 2 H5 I-700600300 700 500 2 H5 I-800600300 800 600 2 H5 I-800800300 800 800 2 H4 X 2PCS I-1000600300 1000 600 3 H5 I-1200600300 1200 600 3 H5 I-1000800300 1000 800 3 H4 X 2PCS I-1200800300 1200 800 3 H4 X 2PCS I-1400800300 1400 800 3 H4 X 2PCS I-800600400 800 600 400 2 H5 I-800800400 800 800 2 H4 X 2PCS I-1000600400 1000 600 3 H5 I-1000800400 1000 800 3 H4 X 2PCS I-1200600400 1200 600 3 H5 I-1200800400 1200 800 3 H4 X 2PCS I-1400800400 1400 800 3 H4 X 2PCS
