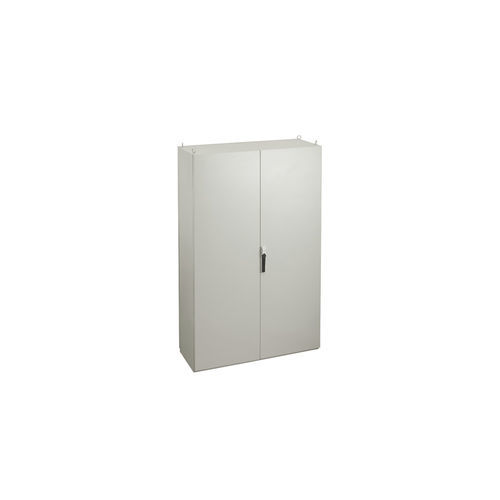

Wall-mount enclosure I-T series

for DIN railrectangularhexagonal

Metallic wall mount cabinet-double door Material: body,front door,gland plate mild steel Mounting plate:galvanised steel Surface finishing: Powder coating RAL 7035 or RAL 7032 ,RAL 2000 for option Mounting plate:galvanised steel or RAL2000 orange color painting for option IP rating: IEC EN60529,IP66,NEMA 4 IK rate: IK 10 Standard: IEC 62208(enclosure standards) Supply include: body,hinged door,gland plate,mounting plate,assembly parts For glazed door cabinet: body,hinged door,gland plate,mounting plate,assembly parts,3.0mm reinforced glazed door For interal door cabinet: body,hinged door,gland plate,mounting plate,assembly parts,internal door Iron thickness: door,body,MP: 1.2/1.2/1.5 Size H800 X W600 (mm) door,body,MP: 1.5/1.5/2.0 Size ≥ H800 X W600 (mm) Model H W D I-600800200-T 600 800 200 I-600800250-T 600 800 250 I-600800300-T 600 800 300 I-600800400-T 600 800 400 I-6001200200-T 600 1000 200 I-6001200250-T 600 1000 250 I-6001200300-T 600 1000 300 I-6001200400-T 600 1000 400 I-1200600200-T 600 1200 200 I-1200600250-T 600 1200 250 I-1200600300-T 600 1200 300 I-1200600400-T 600 1200 400 I-800800200-T 800 800 200 I-800800250-T 800 800 250 I-800800300-T 800 800 300 I-800800400-T 800 800 400 I-8001000200-T 800 1000 200 I-8001000250-T 800 1000 250 I-8001000300-T 800 1000 300 I-8001000400-T 800 1000 400 I-8001200200-T 800 1200 200 I-8001200250-T 800 1200 250 I-8001200300-T 800 1200 300 I-8001200400-T 800 1200 400 I-10001000200-T 1000 1000 200 I-10001000250-T 1000 1000 250 I-10001000300-T 1000 1000 300 I-10001000400-T 1000 1000 400 I-10001200200-T 1000 1200 200 I-10001200250-T 1000 1200 250 I-10001200300-T 1000 1200 300 I-10001200400-T 1000 1200 400 I-12001000200-T 1200 1000 200 I-12001000250-T 1200 1000 250 I-12001000300-T 1200 1000 300 I-12001000400-T 1200 1000 400
