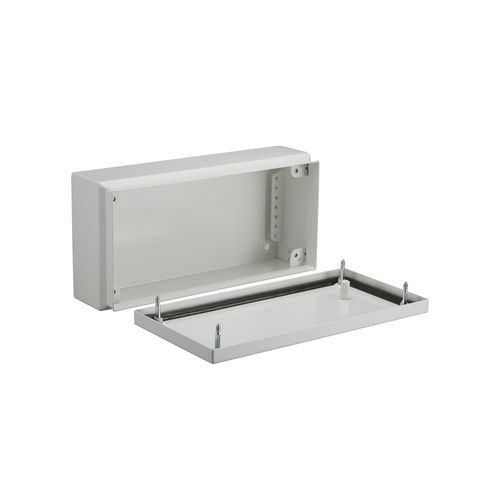

Wall-mount enclosure J series

for DIN railrectangularhexagonal

Metallic junction boxes - screwed cover Materials: Main body,door mild steel Surface finishing:powder coating RAL7035 Or RAL7032 for option IP rate:IEC EN60529,IP66,NEMA 4 IK rate:lK10 Supply includes:body,screwed cover PRODUCT DODE Height width depth(mm) J-15015080 150x150x80 J-150150120 150x150x120 J-15012080 150x200x80 J-150200120 150x200x120 J-20020080 200x200x80 J-200200120 200x200x120 J-15030080 150x300x80 J-150300120 150x300x120 J-20030080 200x300x80 J-200300120 200x300x120 J-300300120 300x300x120 J-150400120 150x400x120 J-20040080 200x400x80 J-200400120 200x400x120 J-300400120 300x400x120 J-400400120 400x400x120 J-200500120 200x500x120 J-300500120 300x500x120 J-20060080 200x600x80 J-200600120 200x600x120 J-300600120 300x600x120 J-400600120 400x600x120 J-200800120 200x800x120 J-400800120 400x800x120
