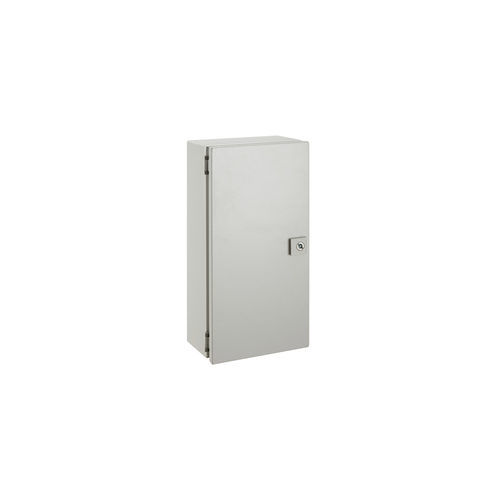

Wall-mounted junction box J-LK seriesIK 10NEMA 4XIP66
Add to favorites
Compare this product
Characteristics
- Mounting
- wall-mounted
- Protection level
- IK 10, NEMA 4X, IP66
- Material
- sheet steel, galvanised steel
- Applications
- for industrial networks, for hazardous areas
- Other characteristics
- indoor
- Length / diameter
Min.: 150 mm
(5.9 in)Max.: 400 mm
(15.7 in)- Width
Min.: 150 mm
(5.91 in)Max.: 800 mm
(31.5 in)- Depth
Min.: 80 mm
(3.15 in)Max.: 155 mm
(6.1 in)
Description
Materials: Main body, door mild steel. Surface finishing: powder coating RAL7035 Or RAL7032 for option. IP rate: IEC EN60529, IP66, NEMA 4. IK rate: IK10. Supply includes: body, hinged door with lock.
Product code | H | W | D
J-15015080-LK | 150 | 150 | 80
J-15030080-LK | 150 | 300 | 80
J-20020080-LK | 200 | 200 | 80
J-20030080-LK | 200 | 300 | 80
J-20040080-LK | 200 | 400 | 80
J-150150120-LK | 150 | 150 | 120
J-150300120-LK | 150 | 300 | 120
J-200200120-LK | 200 | 200 | 120
J-200300120-LK | 200 | 300 | 120
J-200400120-LK | 200 | 400 | 120
J-200500120-LK | 200 | 500 | 120
J-300300120-LK | 300 | 300 | 120
J-300400120-LK | 300 | 400 | 120
J-300400155-LK | 300 | 400 | 155
J-300600155-LK | 300 | 600 | 155
J-300800155-LK | 300 | 800 | 155
Mounting plate for metallic junction boxes
Product code | H(mm) | W(mm)
JB-1515 | 150 | 150
JB-1520 | 150 | 200
JB-2020 | 150 | 200
JB-1530 | 150 | 300
JB-2030 | 200 | 300
JB-3030 | 300 | 300
JB-1540 | 150 | 400
JB-2040 | 200 | 400
JB-3040 | 300 | 400
JB-4040 | 400 | 400
JB-2050 | 200 | 500
JB-3050 | 300 | 500
JB-2060 | 200 | 600
JB-3060 | 300 | 600
JB-4060 | 400 | 600
JB-2080 | 200 | 800
JB-4080 | 400 | 800
- Material: Galvanized sheet steel 1.5mm
- Package: 1 piece
