High resolution, video endoscopy industrial camera for all kinds of boroscopes, borescopes, fiberscopes.
It has universal eyepiece connection and is equipped with focusable optical coupler for connecting it to eyepiece of your endoscope/borescopes. |
|
For all your on site inspection needs where you need a semi rigid fiberscope at an affordable price, we offer you here line of semi rigid flexible endoscopes in Ø 4.2-6&8 mm 7.400 or 17.000 pixels image bundle.
We supply it with our HIGH INTENSITY LED BATTERY HANDLE (no need to buy expensive replacement bulbs).
LED FLEX ECO main characteristics
�� Semi rigid PVC outer tube
�� Optical examination of cavities and hidden structures
�� Quality maintenance diagnostic
�� Early structural dammages detection
�� Reduction of maintenance costs
�� No danger for tanks inspection (gaz or petrol bottles)
�� Immersible in water and Petrol with special optical treatment
�� No generation of heat at the tip of the instrument
It is used in many different fields : Motor manufacturing - Tool making - Automotive and garages - Aviation - Construction and chimical industries - Foundry - Expertises - Police & Customs - Naval construction - Maintenance all fields - Tanks and bottles inspection.
Line of boroscopes delivered in a carrying case with LED battery handle
|
|
Medigus specilaizers in developing adavced technology for endoscopy and provides services to third party companies that include design and manufacture of endoscopy systems using its proprietary technologies, such as its miniature professional cameras for endoscopy.
Medigus designs various flexible, rigid and semi-rigid boroscopes for industrial, medical and veterinarian applications. Both reusbale and single-use designs are available.
The company has a platform technology for endoscopy which includes back end units for endoscopy. This includes professional video processor units, light sources, and insufflation/irrigation pumps.
|
|
Portable Flexible Borescope, Fiberscope (with NON-obedient insertion tube [6mm (0.24inch) diameter and 1320mm (52inch) total length, 1200mm working length,]
Medit Portable Flexible Borescope is made of silica fibers (not cheap plastic fibers like competitors!) and highly flexible insertion tube that would be able to slide into very small tubes or spaces. This feature permits one-handed operation allowing your other hand to do the work! Rugged and water and oil resistant, this borescope inspection tool is ready to handle many inspection tasks requiring a flexible borescope.
Features:
* Close-up focusing-objects as close to the lens as 1.2"
* Ergonomically designed, non-slip handle fits comfortably in one hand
* One-handed operation-focusing and light activation can be achieved one handed freeing the other hand for work
* Integrated focus ring for smooth, continuous focusing
* 52" (1320mm) long insertion tube will reach deep into walls, drains, vents, engine blocks, etc. and requires only a 0.24" (6mm) opening
* Flexible, omnidirectional cable flex in every direction to allow precise viewing "Non-Obedient" cable will not resist going through angled tubes or around corners. Durable insertion tube water and oil resistant, allowing you to get in the most difficult places.
* Convenient, adjustable eyepiece Super Bright LED lamp illuminates dark locations for clear viewing. No need to replace LED lamp! Life of LED lamp more then life of the borescope.
* Rugged ALUMINIUM carrying case Sealed lens and cable are submersible for underwater use
* Operates on 3 AA batteries |
|
Main characteristics
2.7 mm and 4.0 mm x 175mm - 4.0x54mm
Available Angles of vision 0°-30°-70°
Bright and clear Image
Large field of view
Give excellent results with video applications
Standard Ocular 32 mm
Very important depth of field
Very good ease of use with its fixed focus from 0 to infinity
Protection sheath(option)
Applications
Aerospace Parts Manufacturing
Automotive Applications
Fuel Systems
Hydraulics
Metal Machining
Delivered with our High luminosity LED Battery handle
|
|
Detect subtle irregularities in castings, ensure the structural integrity of an aircraft engine or diagnose the cause of an automobile squeak or rattle-nothing gets by the exceptional clarity and high precision optics of our rigid borescopes. Rigid borescopes are exceptionally durable with all-metal construction and a triple tube industrial shaft design built to withstand the harsh environments of an industrial inspection. Our selection of industrial rigid borescopes includes Rotary Scan, Swing Prism, and Mini Rigid designs.
To enhance the versatility and performance of our rigid borescopes, choose from a broad selection of accessories including eyepiece adapters, video borescope adapters, professional monitors, recording devices, light guides and light sources.
Rotary Scan
Allow 360º cicumferential viewing without moving the body of the scope. Various models in a variety of directions-of-view and fields-of-view.
Swing Prism
Allow direction-of-view to be adjusted from 55º to 115º for panoramic viewing of an object which might require two or three conventional models to view.
Mini Rigid
Patented rod-lens optical system delivers outstanding image clarity and brightness as well as exceptional bending tolerance. |
|
MEDIT's Rigid Borescopes are computer designed and manufactured to comply with up to date standards for a wide range of industrial applications.
* Rigid Borescopes provide clear, bright images for any standard industrial application.
* The resolution and image quality are industrial crystal clear because of hight quality glas optics used in our scopes.
* Our scopes can be used in wide range of applications (aviation, machinery, automotive, engine inspection, electrical, piping, locksmith, and many other applications) there rigid insertion tubing of scope is acceptable and most welcome.
* Please notice also, if you have choice between flexible fiberscope or rigid borescope, the last should be given priority, because of its image quality and handiness. |
|
Medigus provides services to third party companies including design and manufacture of manufacturers of endoscopes using its proprietary technologies. Medigus specializes in small diameter videoscopes, which are based on the company's micro CCD video professional cameras for endoscopy.
Medigus develops advanced technology for endoscopy and has a platform technology for endoscopy which includes a professional video processor unit, ultrasound positioning unit, illumination source and insufflation/irrigation apparatus. |
|

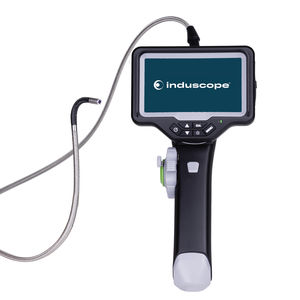

All in one. 1-2 OR 3 meter long video endoscope with 3.5" Screen. Supplied with a SD Card 512 MB that allows recording of pictures or videos in full autonomy mode.
Main characteristics
- 3.5" LCD Screen
- Adjustable light intensity
- SD Card 512MB
- USB Slot - compatible USB 1.1 & 2.0
-Video out for connection to Monitor
-Easy to use 2 Push buttons record mode
-Rechargeable accumulator
TECHNICAL DATA - CCD VIDEOSCOPE Working diameter 5.50 mm
Working length 1.000 - 2.000 - 3.000 mm
Outer tube PVC flexible
INDUSTRIAL CAMERA
Resolution 640*480 pixels
Video signal NTSC / PAL
Frame rate 30 fps
White balance automatic
Lighting 4 white LEDs
OPTICS
Direction of vision 0°
Field of view 67°
Focale distance 15 to 100 mm
Resistant to water & fuels yes to most fuels and solvents
Bending radius 50 mm
Temperatures of use 10 to + 60°C
TECHNICAL DATA - LCD SCREEN
Screen LCD TFT 3.5"
Autonomy 4 hours run time on battery per charge |
|
GE Inspection Technologies brings you an array of VideoProbe® systems, a comprehensive offering of technologically advanced video borescopes that are diverse enough to meet your application-specific needs. Plug them in, turn them on—our VideoProbe systems are designed for ease of use while delivering video images of unsurpassed quality. Distinguished by an intuitive, patented industrial joystick and one-handed operation, the VideoProbe systems feature an integrated LCD video display and a variety of imaging and measurement functions to meet your inspection needs. Engineered for durability and a vailable in many diameters and lengths, VideoProbes can be used for a wide range of industry applications.
|
|
Medigus specilaizers designing and manufacturing advanced endoscopy systems for third party companies using its proprietary technologies, such as its minitaure CCD video industrial cameras for endoscopy.
Medigus designs various flexible, rigid and semi-rigid endoscopes for industrial, medical and veterinarian applications. Both reusbale and single-use designs are available.
The company has a platform technology for endoscopy which includes back end units for endoscopy comprising professional video processor units, light sources, and insufflation/irrigation pumps.
|
|
If a space is not accessible using a direct, straight path, flexible borescopes, so-called flexoscopes are used for inspection.
Flexoscope images are transmitted through sorted fiberglass bundles that record the picture and transmit it to a user's eye.
KARL STORZ flexoscopes are designed for rough, industrial handling and can be repaired at low cost if they should become damaged.
Advantages of KARL STORZ flexoscopes:
• 4-Layer protective sleeve
• 4-fold deflection of distal end
• Diameters from 0.5 mm
• Many different lengths.
|
|
| Fiberscopes are flexible instruments that use a coherent fiber bundle to transmit an image back to the inspector's eye. A separate non-coherent fiber bundle is used for transferring the illumination from the light source to the inspection area. Fiberscopes can also be attached to PROFESSIONAL CCTV and digital imaging equipment so that movie or still images can be recorded for future reference or used in associated documentation. |
|
The fiberscopes are proposed in two ranges: simple or articulated fiberscopes. The image conductor is made of thousands of fibers (between 10,000 and 30,000 pixels).
FORT manufacturers of endoscopes and borescopes can be equipped with the water-resistant Lynx MC2 micro-camera thus offering full compatibility with all FORT's videoprocessors. It is as useful in industry as in medical sectors.
- Sealed
- Diameter: from 2.5 to 11mm
- Usable length: from 650 to 5000mm and more
- From 10,000 to 30,000 pixels
|
|
KARL STORZ borescopes are rigid endoscopes for general applications and are equipped with our proven HOPKINS® lens system.
The diameters of borescopes, i.e. rigid endoscopes, range between 1 mm and 10 mm, with viewing directions from 0° up to a 120° retrospection, and image angles ranging between a zoom lens and wide angle view.
Endoscopes with working lengths of 1.5 meters and longer are available for special applications.
KARL STORZ endoscopes are characterized by:
• Excellent depth definition
• True-color images
• Image brightness
• Excellent edge definition
All standard models are temperature-resistant up to 302°F (150° C) and pressure-resistant up to 5 bar. They are also resistant to oil, fuel, and solvents.
|
|
| Borescopes are the ideal choice when straight-line access to the area of interest is available. These rigid instruments use an optical lens system to transmit an image from the inspection area back to the eye and a non-coherent fibre bundle to illuminate the object. They are available in a range of diameters from 0.9mm to 16mm (0.04" to 0.63") and working lengths up to 1.5m (4.8'). Their ease of use ensures a straightforward inspection solution with minimum set-up. |
|
FORT borescopes and fiberscopes are completely sealed at the distal end, and along the whole length of the insertion sleeve.
The object lens and eyepiece use new types of very-low dispersion optical glass. The diameter of the fibres in the image conductor is less than 10µm. All functions can be controlled with one hand, and the small 90mm control lever avoids an unwieldy lateral offset.
- Sealed
- Diameter: from 2.7 to 10mm
- Usable length: from 55 to 1200mm
- Vision: 0°/30°/70°/90°/110°
- Cost saving
- High quality image
|
|
| Borescopes are the ideal choice when straight-line access to the area of interest is available. These rigid instruments use an optical lens system to transmit an image from the inspection area back to the eye and a non-coherent fibre bundle to illuminate the object. They are available in a range of diameters from 0.9mm to 16mm (0.04" to 0.63") and working lengths up to 1.5m (4.8'). Their ease of use ensures a straightforward inspection solution with minimum set-up. |
|
In contrast to flexible borescopes, images are displayed with a video chip.
The KARL STORZ VIDEOSCOPE offers maximum image quality and can be used in combination with all proven documentation units. In combination with other devices – for example with TECHNO PACK™ – endoscopic images can be easily stored, processed and displayed.
Designed for heavy-duty industrial applications, the VIDEOSCOPE is covered with a protective metal sleeve. The four-fold deflection of the distal end even permits views into inspection cavities that are difficult to access.
The VIDEOSCOPE features:
• High resolution CCD color chip
• 4-fold deflection on distal end
• 8 interchangeable professional lenses
• LCD color monitor detachable
• Different working lengths
• Ergonomic handle with integrated light transmission and video part
• 3 function keys directly on handel
|
|
The Iplex FX Introduces new levels of durability to industrial videoscopes, with its shock-resistant case design and wear resistant scope exterior. The Base unit chassis is Magnesium construction - renowned for its strength and light weight. Power is provided to the FX by an internally mounted Lithium-Ion battery which provides over 2 hours run-time. The Iplex FX complies with the internationally recognised MIL-STD 810F.
To meet the requirements for high quality true image reproduction and colour, the Iplex FX features an optimised optical system and WIDER (TM) image processing. |
|

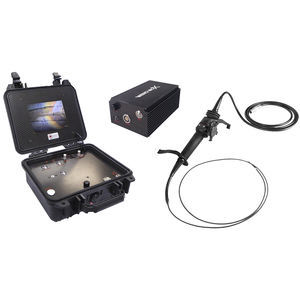

| High quality, mobile and ergonomically designed Rigid or Flexible Video Manufacturer of endoscopes, designed for inspection of hard-to-reach objects, when the inspector cannot easily access the part requiring inspection. |
|
For more simplicity, FORT's non destructive testing devices have been regrouped within the VideolabTM solution.
Based on 3 professional processors, 3 probe ranges and an acquisition and measurement software, VideolabTM solution offers you full flexibility by allowing you to connect every probes on every processors and export on any PC your works.
|
|
WOLF flexible fiberscopes -
extremely short head for maximum manoeuvrability
WOLF flexible fiber industrial endoscopes -
protective shell outside, ultra-precision mechanical and optical components inside
WOLF flexible fiber endoscopes -
with and without exchangeable objective lens heads
WOLF repair service -
case-specific damage assessment and repair. Only what is defective will be replaced.
|
|

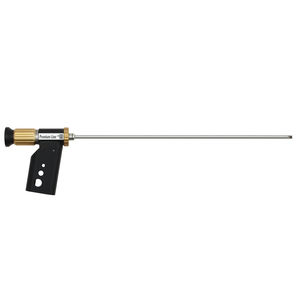

Rigid borescopes
Robust design, insertion tube liquid-proof, resistant to extreme pressures and temperatures. Light-intense lens systems with high-grade coating.
Easy adaptation to different industrial camera systems.
Standard boroscopes
Wide choice of
diameters
working lengths
directions of view
angles of view
with and without eyepiece focussing capability
removable or integrated light guide
optional light sleeves
reinforcing sleeves
mirror sleeves
Swivel prism borescopes
Variable field of view, replaces 2 - 3 standard endoscopes.
Extremely compact construction, superior non-wearing adjusting mechanism
Especially light-intense optical system.
Maximum choice of diameters
Partly with quick-zoom capability (no additional adjustment wheel, no additional weight)
Panoramic borescopes
Ideal for cylindrical geometries: The full professional cylinder periphery at a glance - the 100% solution for manual and automatic routine tests |
|
High intensity battery handle with LED light industrial bulb for increased luminosity and battery lifetime. Standard ACMI connection.
No more need to change expensive light bulb. Save money with our LED battery handle.
Technical Data Led Output 1.25 W
Lighting intensity 110.000 Lux approx.
Colour temperature 5.600° K
Batteries 4x micro LR03 AAA 1.5V - Supplied
Batteries lifetime 20 hours
Great value for all you boroscope needs. Improves lighting for picture or video applications.
|
|
The World's Smallest CCD Video Industrial cameras for medical endosocpes.
Medigus manufactures micro CCD video camera systems with either a 3.0mm x 3.0mm or a 1.8mm x 1.8mm camera head, the latter being the world's smallest Ccd camera.
The cameras are a ready for integration into various visulaization and industrial inspection devices, such as medical boroscopes.
Applications include colonosocpy, gastroscopy, ERCP, bronchoscopy, ENT, urology, gynecology, arthroscopy, laparoscopy etc.
The cameras are the proprietary technology of Medigus Ltd. |
|
The World's Smallest CCD Video Industrial cameras for Endoscopy.
Medigus manufactures micro CCD video camera systems with either a 3.0mm x 3.0mm or a 1.8mm x 1.8mm camera head, the latter being the world's smallest Ccd camera specifications.
The cameras are a ready for integration into various visulaization and industrial inspection devices, such as industrial borescopes.
Applications include Remote Visual Inspection (RVI) and Ndi (NDT).
The cameras are the proprietary technology of Medigus Ltd. |
|
The World's Smallest CCD Video Professional cameras for Visual Inspection centers.
Medigus manufactures micro CCD video camera systems with either a 3.0mm x 3.0mm or a 1.8mm x 1.8mm camera head, the latter being the world's smallest video Ccd imager.
The cameras are a ready for integration into various visulaization and industrial inspection devices, such as systems for Visual Inspection, Remote Visual Inspection (RVI) and Non destructive test (NDT).
The cameras are the proprietary technology of Medigus Ltd. |
|
|
