Powerful and accurate milling engraving machines. Available with a wide range of optional equipment (lubrication system, tool changer, power spindles, etc) they are designed to meet any production requirements.
Engraving area: IS6000XP 610x410mm (24x16")
Engraving area: IS7000XP 610x815mm (24x32")
Engraving area: IS8000XP 610x1220mm (24x48")
Max spindle clearance: from clamping table 80mm, from vice 140mm.
|
|
An upgrade version from the best selling IS400, the IS400 Volume benefits from the power and versatility of the IS400 and also features an 350mm (14")
electronic cylindrical attachment.
Engraving area 305x210mm (12x8").
Huge 400mm (16") spindle clearance over vice
|
|

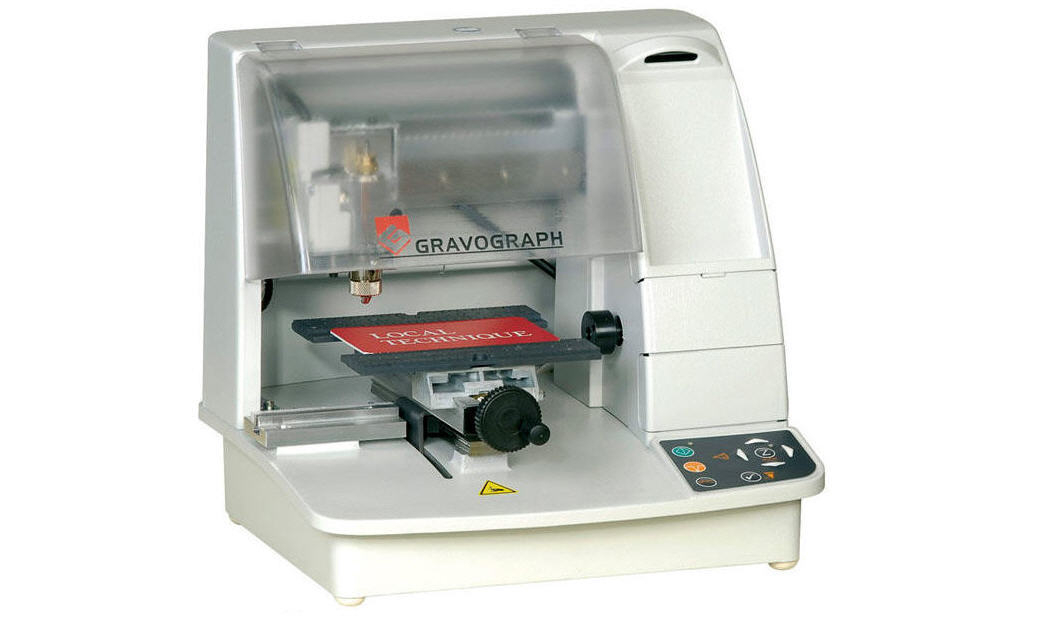

An affordable, self contained marking system which is convenient and easy to operate. The complete system includes the engraving machine and software, tools and accessories, commissioning and the user manual.
The vice and pen attachment, available with the M20 Pen machine, provides quick change-over and increases productivity.The depth nose allows for constant engraving, particularly on uneven surfaces.
The integrated red laser pointer enables you to simulate the job, resulting in an error-free engraving. No measurement is required. Effortless Cutter Setup-integrated Automatic Z reference function is included as standard.
Overall machine size: 310*340*310 mm
Weight: 10 kg
Engraving area: 100*100 mm
Z Stroke: 30 mm, Clearance (nose to bottom of vice): 40 mm
Spindle: 3,17 mm
|
|
Laser technology is becoming very popular for the processing of woven or non-woven (synthetic) fabrics or fibrous materials for example:
- Industrial filters
- Sport and leisure clothing, protective suits
- Automobile fittings (airbags, furnishing, etc.).
The laser beam works without contact and without tool erosion. There is no distortion by a mechanical tool. The fused edges do not fray. No seaming is necessary with most synthetic textiles.
|
|
|
|
|
|
Automated and Accurate
The DCM boasts a fully automatic load and unload mechanism that can handle up to a half ton of corrugated material. A robust vacuum system with field-proven components feeds sheets from the intake pile as it simultaneously removes finished sheets from the cutting platform. The sheet is precisely loaded into position onto the cutting platform in registration.
DCM Cutting and Plotting Table is all-round
The DCM accommodates an entire family of quick-change creasing, cutting, crushing, and special purpose knife tool inserts. The toolhead cuts at maximum machine speed through a range of substrates up to double wall corrugated. Throughout the run, the DCM maintains close registration and exact depth control, making it ideal for converting silk-screened, flexo or digitally printed products.
A workhorse for Short-Run Converting
Highly cost effective for short runs, from 10 to 300-400 items
- Saves cost and waiting time for a cutting die
- Fast setup and changeover
- Low intervention requirements enable unsupervised overnight jobs
- Leaves high-cost and high-capacity equipment undisturbed
- Based on proven Kongsberg XL technology
|
|
Description
The world's most universal CNC marking machine for high-precision marking of parts of any kind.
Our new CNC marking and engraving machine U 3232 enables to apply markings of all types of variable data. The U 3232 is capable of using a variety of rapidly exchangeable marking heads for different materials. The 2-, 3- or 4-axe CNC-control unit is provided with extensive standard software which permits to realize any thinkable variation of marking tasks.
|
|
|
|
|
|
DIASTAR 33OO / 34OO
Industrial CNC drilling, milling and engraving machine
DIASTAR 33OO/3400 are CNC controlled drilling, engraving and milling machines designed for laboratory and service industry applications. They are designed for continuous daily operation and can be expanded, thanks to their modular construction (i.e. no fear of obscolesence).
DIASTAR machines are suitable for the following maching procedures:
- Drilling PBC's (individual and stacked)
- Milling PBC's (isolation milling, panel cutting etc.)
- Milling aluminium parts, e.g. front plates (other metals, such as steel etc., can be machined in several working steps)
- Milling and drilling aluminium and plastic housings (plug knockouts, cut-outs on displays, etc.)
- Engraving steel, aluminium and plastic parts (project stage in connection with CAD/CAM)
- Milling 3D moulds (deep-drawn and injection moulded mould construction)
- Accurate and rational production of DIN test samples (e.g. shoulder rods and samples with predetermined breaking points)
- Optical measuring tasks with Z lasers or colour camera with digital crosshairs (options)
|
|
The series of 3-D machines on base of synchronous motor is high-accuracy and reliability machines for pricise drilling, milling and engraving operations. Small dimensions and easy-to-use 3-axes machines are ideal for precision work with various types of materials, including non-ferrous metals, plastics, wood and many others. The primary consequences for us, as manufacturer is to offer future-oriented solutions to problem in 3-axis drilling, milling and engraving fields which are geared to specific customer requirements, grow with changing needs and can be easily put into practice.
Application:
Front panels, housing, printed circuit boards manufacturing, plate, serial numbers, coins, medals, jewelry goods, and 3D model production.
|
|
Scribers
As with the needle embossers, the ÖSTLING scribers are always used when the markings must be extremely long lasting.
ATTENTION!
All ÖSTLING scribers can also be used as particularly high-quality needle embossers if required by simply replacing the needle system (accessory).
Our own scriber brand, PinMark™, has represented reliability and highest precision for many years. Scribers are often used in rough industrial environments in the automotive and steel industry, by tool manufacturers and in mechanical engineering. This is why the robust construction and the innovative detail solutions prevailed in the development of the PinMark™ series.
What materials are marked with scribers?
Solid materials such as
Metal (aluminium, stainless steel)
Cast iron
Graphite
PVC
etc.
Whether as an installation device that can be integrated into your production line, as a benchtop device or as a flexible benchtop device on a trolley: we offer the ideal solution for your applications.
|
|
The Centromatic machines center and edge lenses of 10 to 300 mm in diameter – fast, reliable and precise.
The complementary tool geometry permits processing of complex lens shapes (i.e. not-rotatory symmetric contours as well as not round shapes) without tool change – with two spindles (option) even faster.
The Centromatic grows with your demands, extension is easy, because of the modular construction.
|
|
High precision laser engraving system for marking ophthalmic progressive lenses. The CO2 laser system is prepared to engrave semi-visible markings on organic lenses. Marks convex and concave surfaces. Desktop system.
|
|
|
|
|
|
The product range Unigrav is the perfect solution for easy and efficient product marking. It is the result of our long-term experience in development and production of CNC-controlled marking systems.
UNIGRAV offers the right solution for all applications due to various additional modules.
UNIGRAV is adjustable to any material and/or surface, due to its continously adjustable mark depth and impact frequency.
The version Unigrav-A has been developed for the integration in fully automated processes and production units.
Specifications:
- cut linear slides with ball-point screw rails
- high-performance stepping motors, optional highly-dynamic servo drives
- positioning accuracy 0,02 mm, with servo drive only 0,005 mm
- up to 60 mm/sec., approx. 4 characters/sec. with a character height of 2,5 mm
- marking head can operate in pin marking, scratching and dot matrix mode
- adjustable imprinting power and impact frequency
- tool stand with hydraulic height extension
- various clamp devices
- with a pneumatic z-axis you can reach different marking positions
- 3D-version with z-axis driven by a stepping motor
- pneumatic pin marker with 400 Hz frequenz
|
|
The MG152 is a CNC transfer machine which is designed for the various fields of mechanical engraving, automatic numbering, decoration, and prototyping of microengineering parts.
In the standard configuration the machine is equipped with a PRECITRAME UV72-3 unit with 3 CNC axes and 2 electro-spindles. The loading/unloading system can be full automatically or manual according to the customer requirements.
With various fields of application, enhanced features, easy and comfortable to operate, the new transfer engraving and machining solution PRECITRAME MG152 achieves all your requirements concerning quality and precision.
The development was done without any compromises. It includes a welded chassis and a 4-position table, a newest-generation PRECITRAME machining unit and a high-performance numeric control, guarantee a high degree of rigidity, productivity and precision. There with it is possible to carry out very delicate machining operations.
|
|
3-axes milling and engraving machine
Driven via ball-point screw rails an with stepping or servo motors (optional).
Standard axes 500 x 500mm max., at request we can deliver also other sizes.
Engraving spindle with 170 W and 5.000-60.000 revolutions/min. or milling spindle 300W up to 20.000 revolutions/min.
Milling and engraving into ferrous metals, aluminium and steel. Due to its compact quadruple slides with totally 16 linear driving compartments.
Large software package for set-up of markings, sequential numbering, circular and angular markings, import of data for HPGL-files.
Online-function for the control via an external PC and software package Signumeric 6.0 with many features on Win 95/98/NT und 2000.
Easy to use and safe in its application.
|
|
|
|
|
|
M CAM Series of CNC machine for processing wood, plastics, plexi-glass etc.
New series of CNC machines from Mikrosam, type M-CAM is designed for 2D and 3D machining of wood, plastic, plexi-glass and aluminium. M-CAM system is designed to in any workshop, where higher high productivity and high efficiency is required. This system is ideal for milling, engraving, cutting, lettering, production of different parts of furniture, kitchen doors, inside and outside doors, making 3D models, sign making etc. Our CNC routers are used by custom fabrication, sign making and wood working shops. M CAM come in a variety of models and options to suite the needs from the small custom shop to large manufacturers.
Easiness in operating and user-friendly software enables operating with the machine without any special background or training. The user-friendly software applications that run under Windows platform are adjusted for easy controlling of the machine. According to the complexity and shape of the object there is possibility of selection different tools.
|
|
- Productive -
Movement of glass on an air cushion using turbine system.
- Economic -
Reduced dimensions allow high speed occupying little space.
- Simple -
Work top with vacuum blockage system.
- Praticle -
Allows the selectioning of vacuum on single parts of the work top.
|
|
|
Machines has to engrave 3D 3 to 5 continuous axes, the best current performances for fine engraving and machining 3D of the electrodes, the moulds, the jewelry, the dental etc... The reference for the reliability and the flexibility in use. Repetitivity +-0.005 Misters Gestion by CNC bases modular PC from 2 to 32 axes. Adaptation of the functionalities desired by the customers. (mechanics and automatism)
|
|
Etch Unit 300 und 500 Classic
The Etch Units 300 and 500 Classic are probably the most widely used electrolytic marking control systems in the world.
They already include several features enabling and simplifying precise work with the most varied metal alloys. For example, an electrolyte pump can be controlled automatically, which is important to always apply the optimum quantity of electrolyte during the marking procedure.
Technical Data EU 300 Classic
Input voltage: 115 or 230V AC
Output voltage: 0 - 24V AC or DC
Power: 310 VA
(HxBxD): 140 x 380 x 220 mm
- integrated timer
- single line, illuminated display
- optional: Carbide output
EMV-tested
|
|
|
The ME3000P is a compact semi-automatic system for marking small to medium sized components such as knife blades, small tools and surgical instruments.
|
|
|
The most advanced and fully functioned electrochemical marking machine available ideal for semi or fully automated applications as well as simple hand applied marking.
|
|
Electrolytic Marking Systems : EU 80
The EU 80 is our lowest cost etch unit. Variable voltage controls are operated manually. Ideal for small batch sizes. Optional aluminum case complete with accessories (electrolyte, marking head, cable set, and felt-tip).
NEED Specifications
- Input voltage 115 or 230 V, AC
- Output voltage 0 - 24 V (AC/DC)
- Power 80 VA
- Dimensions (H x W x D) 155 x 200 x 150 mm
|
|
General description
Application: Marking control icons on high-end appliance tops
Features:
- 50-watt diode-pumped Nd:YAG laser
- 16-bit high precision galvanometers
- 10"x10" marking field
- Programmable linear laser motion
- Part length sensors for four discrete appliance families
- Manually adjustable Z-axis laser motion with digital position display
|
|
|
|
|
|
This product line, which provides a permanent, distinctive mark is ideal for promoting by brand recognition, date and batch codes, traceability, inspection and instructional marking. Matthews Airgrit Etching technology is a stress-free marking process that does not distort or fracture the shape of delicate or thin-walled parts.
Operating on a forced-blast principle, the Airgrit provides a permanently frosted or etched impression on the surface of flat or round parts by blowing fine abrasive grit through the relieved portion of a rubber mask. The result is a high-quality, frosted impression that contrasts with the product's surface. Click here to read more about masks.
Airgrit systems can economically and permanently mark glass, metal, ceramics, plastics and other fragile materials with hard, anodized or highly polished surfaces. This product group is an excellent choice for applications in the automotive, glass, and plastics industries. Several models are available for all process line configurations including bench top, floor and hand-held systems along with many options and accessories.
|
|
* Monode Electric Etcher - ME600 :
Marks all metals. Writes like a pencil. Speed of writing and the depth of mark can be varied by three wattage settings. Ideal for all tool cribs.
*Monode Stain Removing Kit :
Removes the burn marks from welding joints.
* Model 450 Digital Etching Unit :
Corrosion Proof Touch Pad, Programmable Etch Cycles, Operator Friendly Set-Ups, Lock out Features, One Year Warranty.
* Model 550 Digital Etching Unit :
Corrosion Proof Touch Pad, Programmable Etch Cycles, Operator Friendly Set-Ups, Lock out Features, Good for Deep Etch, One Year Warranty.
|
|
Electrolytic marking systems
You can find basic information about the function principle of electrolytic marking in the main menu at "Marking procedures".
Electrolytic marking is primarily distinguished by the fact that high-quality markings can be created very quickly - and that at an attractive cost level.
The ÖSTLING product programme principally has a modular structure. This means that most of our devices can be upgraded as required later on.
Thus, for example, a manual workplace consisting of an EU Classic can very easily be expanded to a semi-automatic system. Fully automatic solutions can also be realised on request.
|
|
|
|
|
|
We offer everything you need for electrolytic marking ...
Manufactured at our own production site in Germany.
Whether you need a manual workplace, a semi-automatic system or a fully-automatic solution: it will be difficult for you to challenge us with a problem in the field of electrolytic marking that we have not solved already.
The examples in the right column merely represent a small selection from our programme. We can supply everything you need for the most varied product shapes, sizes and other specifications.
Electrolytic marking remains a very clever solution to obtain first class marking results with simple means.
Accessory examples
ÖSTLING electrolytes for nearly any alloy
Marking heads for all product shapes and sizes
Multi-digit stamps for changing serial numbers, etc.
Stencil paper for the easy creation of templates with the typewriter or a printer (available from us)
ÖSTLING PT devices for the fast creation of temporary templates for frequent data changes (e.g. serial numbers, 2D codes)
All sizes of long-term templates available (several thousand high-quality markings)
Our long-term templates are of the highest quality and often applied by users of other electrolytic devices (incl. marking devices / etching devices).
We are happy to assist you personally.
|
|
|
The correct selection of Electrolyte is of utmost importance. UMS supply a range of standard electrolytes for marking on most metals, as well as a number of high purity electrolytes for specialist applications, for example as used in the aerospace and nuclear industries. Neutralising is required with most of the electrolyte solutions in order to maintain the quality of the mark, and UMS supply a range to match.
|
|
