Hexcel manufactures aramid fabrics for use in aerospace applications as well as marine, tooling and recreational products where high strength, low weight, and impact resistance are essential.
Aramid fibers are 43 percent lighter than fiber glass, with a density of 1.44 g/cc compared to 2.55 g/cc for fiber glass. They are twice as strong as E-glass, ten times as strong as aluminum and approach the strength of high strength carbon on a specific tensile strength basis.
Aramids display excellent dimensional stability with a slightly negative coefficient of thermal expansion (-2.4 X 10-6/ºC.) They are resistant to chemicals with the exception of a few strong acids and alkalis.
Aramids have excellent stability over a wide range of temperatures for prolonged periods. They show essentially no embrittlement or strength loss at temperatures as low as -320ºF (-196ºC). Aramids do not melt or support combustion but will start to carbonize at approximately 800ºF (427ºC).
|
|
|
OC® Fabrics include Woven Rovings, High Performance Fabrics, Knitted Fabrics and Specialty Products and Tape. Each fabric has unique processing, mechanical and resin compatibility characteristics tailored to specific end-use applications. Molders use fabrics to produce high strength, structurally solid composite applications such as shipping containers, ballistic armor, wind generator blades and doors.
|
|
|
The versatility of glass as a fiber makes it a unique industrial textile material. Fiber glass in fabric form offers an excellent combination of properties from high strength to fire resistance. Wide ranges of yarn sizes and weave patterns provide huge number of design potential allowing the end user to choose the best combination for material performance, economics and product flexibility.
|
|
Aramid & Hybrid products: Most aramid & hybrid products are made to order, although some biaxial +/-45 fabrics are made regularly, and these are shown on the list below. Please discuss your exact requirements with our technical sales team..
All fabrics available cut into tapes .
|
|
Carbon products: We manufacturer all the grades of 'standard' multiaxial carbon fabrics, plus many unique products that are only possible with our fibre-spreading technology. We work with all the premium fibre producers, and most of our products are made from HS T700 or equivalent.
All fabrics available cut into tapes
These are only our standard products. We also manufacture a very large range of bespoke fabrics to exactly meet our customers' needs.
ST = Stabilised (lightweight yarn layer in 0 &90)
HD = High Drape
UB = Unbalanced
TE = Tapered Edge
|
|
|
E-Glass products: Although we offer a 'standard product list', much of our production is for bespoke products specific to a customer. Please discuss your individual requirements with our technical sales team.
|
|
|
Hexcel manufactures a complete line of HexForce® woven and non-crimp fabrics from carbon fiber. The range includes traditional fabrics (3K, 6K, 12K, 24K), flat-tow 12K and heatset-unit fabrics, plus non-crimp, multiaxial reinforcements. Hexcel's carbon fabrics meet the specification requriements of BMS 9-8 as well as other major aerospace manufacturers' specifications for carbon fabric. These fabrics use fibers that are produced under stringently controlled conditions, extensive testing and documentation.
|
|
|
|
|
|
MAPEWRAP C BI-AX : Balanced high strength bidirectional carbon fibre fabric. Mapewrap C BI-AX is a bidirectional carbon fibre fabric characterised by a high modulus of elasticity and very high tensile strength. Mapewrap C BI-AX is suitable for repairing concrete structures and to improve flexural and shear strength of reinforced concrete structures damaged by physical-mechanical action, for confinement of axial loaded or concrete elements subjected to compressive and bending stress and for seismic strengthening in earthquake areas.
MAPEWRAP C UNI-AX : High strength unidirectional continuous carbon fibre fabric. Mapewrap C UNI-AX is a uni-directional continuous carbon fibre fabric characterised by a high modulus of elasticity and very high tensile strength. Mapewrap C UNI-AX is suitable for repairing reinforced concrete structures damaged by physical-mechanical action, for confinement of axial loaded or concrete elements subjected to compressive and bending stress and for seismic strengthening in earthquake areas.
|
|
|
We offer a broad portfolio of high-performance textile products made from carbon-, glass- and aramid fibers. As a leading manufacturer of carbon products we can draw on several decades of experience. The majority of our reinforcement materials are processed into components made from composite materials. Common processing methods include wet lamination, molding, RTM, and the production of prepreg materials.
|
|
|

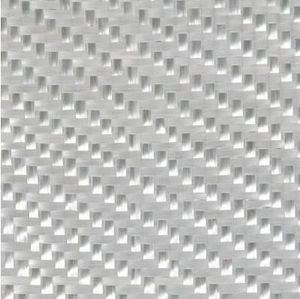

Woven roving glass fabrics of KROSGLASS S.A. are produced on weaving looms from rovings ER 3003 and ER 3003 B. These rovings are made of glass fibers of alkali-free boron-aluminium-silica glass of type E (contents of alkali metal oxides less than 1%). The fabrics are made of direct roving having filament diameter 11 ÷ 22 µm (depending on linear mass of the roving used). Rovings with chemical active vinyl-silane or metacrylosilane coating are used in fabric production, thus enabling a direct application of fabrics in production of laminates (no additional operations of surface finishing off are required), and good polymer-to-glass adhesion is ensured.
|
|
|
OC® Woven Rovings are either single-end or multi-end rovings woven into fabrics for uses such as wall reinforcements and rib or laminate reinforcements. Compatible with most resins, woven rovings provide rapid wet-out and excellent dimensional stability during product handling. OC® Woven Rovings are made in a variety of assorted weave patterns for design flexibility and high strain values, and can be engineered for high impact-resistant applications.
|
|
|
OC® Knitted Fabrics are knitted layers of directional rovings either with or without a supporting chopped strand mat or veil. The layers are stitched together for better handling and dimensional stability during lamination. The precise alignment and positioning of the rovings give high tensile strength and a smooth surface finish in applications such as leisure boats.
|
|
Designed for a wide range of applications, Taconic TFE-GLASS™ Fabric is available in several grades to match specific performance requirements. TFE-GLASS™ exhibits the following high-performance characteristics:
Non-stick surface
Excellent temperature resistance: from -100°F - +500°F (-73°C - +260°C)
Chemically inert
High tensile strength
|
|
|
E-Glass products: Although we offer a 'standard product list', much of our production is for bespoke products specific to a customer. Please discuss your individual requirements with our technical sales team.
|
|
Taconic silicone coated fabrics exhibit very similar properties to fluorocarbon resin and PTFE coated fabrics.
Excellent Release properties up to 230°C
Silicone coated surfaces exhibit excellent release characteristics and will release adhesive and viscous materials which often adhere to a fluorocarbon resin.
Good Chemical Resistance
Silicone coated fabrics exhibit high resistance to attack from mild alkali, non-oxidising acids, most salts, mineral lubricating oil, air, moisture and sunlight.
Superior Abrasion Resistance and Flex
Silicone coated fabrics offer a tough coated surface with high abrasion and flex resistance. Silicone coated fabrics, however do not exhibit the low friction surfaces or self lubricating properties of fluorocarbon resins.
Super Dielectric Properties
Silicone coated fabrics are excellent electrical insulators in tough environments.
|
|
|
E-Glass products: Although we offer a 'standard product list', much of our production is for bespoke products specific to a customer. Please discuss your individual requirements with our technical sales team.
|
|
Carbon products: We manufacturer all the grades of 'standard' multiaxial carbon fabrics, plus many unique products that are only possible with our fibre-spreading technology. We work with all the premium fibre producers, and most of our products are made from HS T700 or equivalent.
All fabrics available cut into tapes
These are only our standard products. We also manufacture a very large range of bespoke fabrics to exactly meet our customers' needs.
ST = Stabilised (lightweight yarn layer in 0 &90)
HD = High Drape
UB = Unbalanced
TE = Tapered Edge
|
|
E-Glass products: Although we offer a 'standard product list', much of our production is for bespoke products specific to a customer. Please discuss your individual requirements with our technical sales team.
REINFORCING FIBRE SPECIFICATION
FIBRE TYPES: E-GLASS ROVINGS
AREAL WEIGHT: 598 GSM (±5%)
SIZE COMPATABILITY: POLYESTER / EPOXY / VINYLESTER FIBRE SPECIFICATIONS: 2400TEX & 300TEX
WIDTH: 1250MM (±5MM)
|
|
|
|
|
|
Glass fibre is one of the most versatile fibres. It has excellent mechanical properties, excellent resistance to fire, very thermal shrinkage levels to guarantee good dimensional stability at high and low temperatures, excellent resistance to chemicals and furthermore is available in a wide range of yarn counts enabling the final user to choose the best combination between light weight, resistance properties and price.
Glass fibre is a good isolation material, and does not absorb humidity, plus its low dielectricity constant renders it particularly suitable for electrical applications.
Glass fibres offer a good balance between the cost of the product and the performance levels requested, a high resistance to compression and excellent compatibility with resins. They can also be used in combination with fibres of carbon or para-aramid (hybrid fabrics), giving an excellent balance between properties, weight and a subsequent reduction of costs.
Characteristics of glass fibre
- Low cost
- High resistance to compression
- Easy to wet out with resins
- Availability of different types of glass depending on the application
- Higher weight compared to other fibres when used in composites
- Low Modulus of elasticity
|
|
The carbon fibres are composed of a minimum of 95% of graphite structure. The carbon fibre is generally produced from a polymer called polyacrylonitrile (PAN), which is spun first, and then in successive controlled stages is carboninized at about 1800°C.
The result of this process is a very light fibre (density 1,78 g/cm3), very resistant (Tenacity 4800Mpa, modulus of elasticity 240 GPa) and flexible, therefore it is quite easy to process.
Characteristics of carbon fibre
- Elevated resistance to traction
- Elevated modulus of elasticity (traction and compression)
- Extremely light weight
- Low elongation at break
- Very high flexibility
- Easy to impregnate
- Highly fragile
- High cost
- Low resistance to impact
- Electrical conductivity
|
|
Hybrid fabrics allow to optimize the different chemical - physical properties of the fibres to obtain synergy between them, together with a good compromise on costs.
It is therefore possible to combine in the same fabric the rigidity of carbon fibres with the impact resistance of para-aramidic fibres, or the better adhesion of the resins to glass fibres with the mechanical and anti-ballistic properties of para-aramidic fibres.
|
|
|
Texindustria® offers an extremely wide range of dry fabrics and tapes in carbon, aramid, HT polyethylene, E - S and R glass fibres, and unidirectional and multi-axial materials, as well as hybrid fabric such as carbon/glass, carbon/aramid, aramid/glass, polyethylene/glass.
|
|
|
Texindustria® offers an extremely wide range of dry fabrics and tapes in carbon, aramid, HT polyethylene, E - S and R glass fibres, and unidirectional and multi-axial materials, as well as hybrid fabric such as carbon/glass, carbon/aramid, aramid/glass, polyethylene/glass.
|
|
|
Texindustria® offers an extremely wide range of dry fabrics and tapes in carbon, aramid, HT polyethylene, E - S and R glass fibres, and unidirectional and multi-axial materials, as well as hybrid fabric such as carbon/glass, carbon/aramid, aramid/glass, polyethylene/glass.
|
|
|
Texindustria® offers an extremely wide range of dry fabrics and tapes in carbon, aramid, HT polyethylene, E - S and R glass fibres, and unidirectional and multi-axial materials, as well as hybrid fabric such as carbon/glass, carbon/aramid, aramid/glass, polyethylene/glass.
|
|
SGL Group operates the most up-to-date facilities for the production of pre-impregnated materials. Our unidirectional SIGRAFIL® prepregs are based on carbon fibers, and our SIGRATEX® fabric prepregs are made from carbon fiber fabrics.
By acquiring epo gmbh and the prepregs brand PREDO®, we have expanded our product portfolio as well as our core competency in the field of pre-impregnated materials.
* SIGRATEX® fabric prepregs
* SIGRAFIL® unidirectional prepregs
* PREDO® prepregs (For further information on the product, please refer to related subjects)
The fiber type is the main factor determining the strength, Young's modulus and other important properties of fiber composite products. The reinforcement fibers are precisely aligned and economically combined with the resin matrix.
|
|
