The H5450 and H5470 compressors have a range of configurable cylinders that enable performance to be very closely matched to the required duty. In this manner the machines can be arranged with 1 to 5 stages using 3 to 6 cylinders.
The crankcase may be pressurised up to 15 bar g which permits hazardous gas booster applications, where the crankcase is equalised to the suction pressure.
For inert gases the units may be used with a maximum suction pressure of 100 bar g, by use of a non-pressurised crankcase.
Gas Applications
These machines can handle a wide variety of gases, depending on application. Your salesman will be pleased to advise, but typical gases include: argon, bio-gas, carbon monoxide, carbon dioxide, ethane, ethylene, helium, hydrogen, methane, natural gas, neon, nitrogen, nitrous oxide, oxy-helium, sludge gas, sulphur hexaflouride and xenon.
|
|
CNG Refuelling Solutions
As a world leader in compressed air and gas systems, CompAir's technological advances in design, manufacture and installation of ready-to-run refuelling systems are helping to make CNG a viable energy resource for today's commuters and transport operators.
1. Tabulated figures are only a sample of standard module ranges. Inlet pressures are available between 0 and 18 bar g. HGP50 motors range
from 45 to 90 kW. Standard motors for HGP70 range from 90 to 250 kW.
2. Dimensions and weights are subject to module choice.
3. Performance figures are based on inlet conditions of 200C. Flow rates (FAD) measured in accordance with ISO 1217:1996, reference to 1.013
bar absolute, using a 50Hz motor.
4. Delivery pressure of 250 bar g is typical. Delivery pressures are available up to 350 bar g.
|
|
|
|
|
|
NOVAIR proposes to its industrial clients oil-free gas and air compressors of the following types:
Oil-free piston compressors
•1, 2 and 3-stage piston compressors
•Conveyance of numerous toxic, explosive and corrosive gases
•Suction temperatures from -20°C to 130°C
•System pressures up to 60 bar(g)
•Booster compressors with thrust up to 45 bar(a)
•Drive up to 200 kW
•Direct drive coupling or via V-belt
•Air and water-cooled versions
•Versions for potentially-explosive atmospheres
Oil-free screw compressors
•1, 2-stage screw compressors
•Air conveyance
•Suction temperatures from -20°C to 50°C
•System pressures up to 8 or 10 bar(g)
•Booster versions with thrust up to 4 bar(g)
•Flow rates from 360 m3/h to 3,000 m3/h
•Drive output up to 355 kW
•Air and water-cooled versions
•Versions for potentially-explosive atmospheres
Numerous options are available for designing compressor systems to customer specifications, including frequency controllers, filters, sterile filters, aftercoolers, refrigerant dryers, adsorption dryers, buffer tanks.
|
|
|
|
|
|
Burton Corblin® compressor
Range of performance:
• Inlet volume: 20 000 m3/h (11750 cfm)
• Power: 2500 kW (3400 hp)
• Discharge pressure: 250 bar ( 3600 psi )
High quality reciprocating technology:
• dry (non lube) compressor technology
• controlled lubrication technology matching process requirements and tolerances
• API 618, 4th edition compressor design
• pressure vessels according international codes as applicable
• complete « plug and play » packages integrating control systems, gas regulation equipments, and gas treatment equipments
• design of package going from basic processes as well as most difficult process applications
• customized technical study of your project as soon as initiated
• optimized design based on a wide experience with hundreds of compressor packages operating in production sites from food industry to petrochemical industries, handling light and heavy gases
• combined technology grouping a piston compressor line with diaphragm compressor head at the final stage resulting in extra flow/pressure performance
• easy maintenance mostly handled by the operators themselves
• after sales: Serviceman on site, spare parts, compressor up grade and revamping
|
|
- oil-free
- up to 150 bar
- absolutely gas-tight
- compressed air and gas
- ATEX-conformity
- air- or water-cooled
|
|
The Laby® compressor represents unbeatable reliability and availability, thanks to its unique labyrinth sealing system on piston and piston rod gland that allows oil free and contact-free compression. The result is an extended meantime between overhaul, that has a positive impact on reliability and operating cost.
Neither contamination of the gas by abraded material from piston rings nor hot spots from friction occur. The Laby® is designed to compress bone-dry, dirty, abrasive and other gases. The gastight casing reduces gas emission and losses to the environment to zero. The Laby® compressor easily manages the compression of LNG boil-off gas at suction temperatures down to minus 160°C (minus 250 F).
|
|
|
|
|
|
Sauer Compressors UK offers a wide family of gas compressors:
'H' series compressors are used for Air or Nitrogen compression. Each compressor is an air-cooled, single acting, three or four stage-reciprocating piston compressor with the combination of oil pressure fed crankshaft bearings, and cylinder oil splash with regulated injection for the final high-pressure piston plunger design.
Performance with inert gases, such as Nitrogen, ranges from 10 to 150 Nm^3/h within a final pressure range of 100 to 350 bar including the Sauer unique NitroFlex integrated 'all-in-one' - Compressor, generator and gas booster.
'W' series compressors are oil-lubricated, single acting water-cooled piston compressors for air or inert gas compression in two or three stages from 10 to 100 bar with gas flow-rates from 65 to 400 Nm^3/h.
'LB' series inert gas boosters are dedicated nitrogen gas boosters that can accept suction pressures from 4 to 14 bar to deliver gas to a maximum of 40 bar. This single stage gas booster range is the result of years of trouble-free experience with the 'L' range.
'L' series compressor/boosters offer a wide range of gas flow-rates from 10 to 400 m^3/h at pressures to 40 bar in two or three stages based upon the established marine diesel air-start Sauer range of two and three stage oil-lubricated, piston compressors. Even as air compressors they can be safely adapted for use in Ex-atmospheres to ATEX regulations
|
|
JAB Kompressors are own developments with the knowledge we gained during the construction of our compressors with a performance up to 350 Bar.
The main characteristics of these machines are oil pressure lubrication, oil pressure control, oil pressure monitoring, shut down in case of lack of oil, oil and water separation with automatic discharge and condensate separation as well as very low noise emitting values.
|
|
Advantages of JAB Compressors For Gas Compression
Compressor 4 stages, air cooled
Compression proofed crankcase
Gas proofed shaft packings through axial face seals
Oil pressure lubrication for crank drive and piston of the 3rd and 4th stage
External lubricating oil filter
High efficient cooling system
Maintenance-free oil and water separator
Micro filter at the high pressure gas outlet
Efficient, economic, easy maintenance
|
|

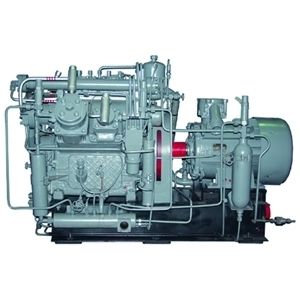

QRNG Single & Two Stage Natural Gas Compressors
Based on the proven performance of the QR-25, an air compressor with over 80 years of reliable service, but engineered exclusively for natural gas applications, the Quincy QRNG™ is constructed of heavy-duty cast iron for strength and durability. The cylinders are cast with horizontal cooling fins and machined to rigid tolerances. The Quincy QRNG features an advanced-design pressure lubrication system, rebuildable connecting rods, and low-lift valves.
|
|

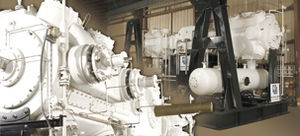

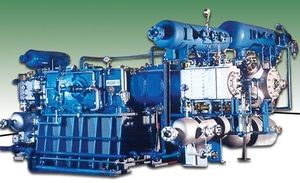

The process gas compressor represents high availability and a long meantime between overhaul thanks to an optimized selection of high quality components and valves that result in low operating and maintenance cost. Burckhardt Compression has over 160 years of experience in manufacturing reciprocating compressors and offers a worldwide one-stop service.
The company provides a robust and reliable process gas compressor of Swiss design and manufacture. It is designed according to individual application requirements within the API 618 specifications. It is available oil-free or lubricated, horizontal or vertical. It handles easily hydrogen, hydrocarbons and corrosive gases at high pressure.
|
|
'H' series compressors are used for Air or Nitrogen compression. Each compressor is an air-cooled, single acting, three or four stage-reciprocating piston compressor with the combination of oil pressure fed crankshaft bearings, and cylinder oil splash with regulated injection for the final high-pressure piston plunger design.
Performance with inert gases, such as Nitrogen, ranges from 10 to 150 Nm^3/h within a final pressure range of 100 to 350 bar including the Sauer unique NitroFlex integrated 'all-in-one' - Compressor, generator and gas booster.
|
|
|
|
|
|
Sauer Compressors UK offers a wide family of gas compressors:
'H' series compressors are used for Air or Nitrogen compression. Each compressor is an air-cooled, single acting, three or four stage-reciprocating piston compressor with the combination of oil pressure fed crankshaft bearings, and cylinder oil splash with regulated injection for the final high-pressure piston plunger design.
Performance with inert gases, such as Nitrogen, ranges from 10 to 150 Nm^3/h within a final pressure range of 100 to 350 bar including the Sauer unique NitroFlex integrated 'all-in-one' - Compressor, generator and gas booster.
'W' series compressors are oil-lubricated, single acting water-cooled piston compressors for air or inert gas compression in two or three stages from 10 to 100 bar with gas flow-rates from 65 to 400 Nm^3/h.
'LB' series inert gas boosters are dedicated nitrogen gas boosters that can accept suction pressures from 4 to 14 bar to deliver gas to a maximum of 40 bar. This single stage gas booster range is the result of years of trouble-free experience with the 'L' range.
'L' series compressor/boosters offer a wide range of gas flow-rates from 10 to 400 m^3/h at pressures to 40 bar in two or three stages based upon the established marine diesel air-start Sauer range of two and three stage oil-lubricated, piston compressors. Even as air compressors they can be safely adapted for use in Ex-atmospheres to ATEX regulations
|
|
|
|
|
|
Sauer Compressors UK offers a wide family of gas compressors:
'H' series compressors are used for Air or Nitrogen compression. Each compressor is an air-cooled, single acting, three or four stage-reciprocating piston compressor with the combination of oil pressure fed crankshaft bearings, and cylinder oil splash with regulated injection for the final high-pressure piston plunger design.
Performance with inert gases, such as Nitrogen, ranges from 10 to 150 Nm^3/h within a final pressure range of 100 to 350 bar including the Sauer unique NitroFlex integrated 'all-in-one' - Compressor, generator and gas booster.
'W' series compressors are oil-lubricated, single acting water-cooled piston compressors for air or inert gas compression in two or three stages from 10 to 100 bar with gas flow-rates from 65 to 400 Nm^3/h.
'LB' series inert gas boosters are dedicated nitrogen gas boosters that can accept suction pressures from 4 to 14 bar to deliver gas to a maximum of 40 bar. This single stage gas booster range is the result of years of trouble-free experience with the 'L' range.
'L' series compressor/boosters offer a wide range of gas flow-rates from 10 to 400 m^3/h at pressures to 40 bar in two or three stages based upon the established marine diesel air-start Sauer range of two and three stage oil-lubricated, piston compressors. Even as air compressors they can be safely adapted for use in Ex-atmospheres to ATEX regulations
|
|
ENVIRONMENTALLY FRIENDLY COMPRESSION OF GASES – A HAUG SPECIALITY
HAUG gas-compressors run absolutely oil-less with dry lubrication. The oil-less compression avoids any contamination of the process gas and the process machinery.
To obtain an absolutely hermetically gas-tight unit, HAUG gas compressors are equipped with a magnetic coupling. For this construction the permanent total gas leakage is less than 0.001 mbar l/s during operation as well as at standstill. In the case of helium at 3 bar pressure the gas loss is merely 5 grams per year! Contamination of the ambient environment through gas leakage with these compressors is practically impossible.
|
|
| ... products without technical information |
| |
Aerzen Screw Compressors VR for process gas technology in modular system single- and multi-stage for dry compression of process gases. The Screw Compressor stage is available in 13 sizes with swept volume flows from 600 m³/h to 120.000 m³/h. Differential pressures between 7 and 12 bar are standard at single-stage compression. With multi-stage design discharge pressures of 25 bar and 40 bar max., but also vacuums lower Pe –0,9 bar are achieved.
The maximum (1350 mm) and the minimum rotor length (155 mm) give an impression of the entire breadth of the offer. For the adjustment to the different process gases, rotors made of steel or special steel and casing of nodular cast iron, steel- or special steel casting can be applied.
|
|
QSG 25-300 hp Direct Drive Gas Compression Module
The Quincy QSG features a triplex bearing arrangement with an L-10 calculated life of 130,000 hours, exceeding average life expectancy of competing compressors. Large diameter, slow turning rotors deliver maximum efficiency and Quincy’s QSG rotary screw offers state-of-the-art rotor profile for maximizing gas flow and minimizing horsepower.
Visit www.quincycompressor.com/locator.html to find a local Quincy distributor
|
|
Champion RotorChamp
125, 150, 200 hp
Product Styles- RCS125, RCS150, RCS200
Performance Overview
Direct Drive Non-geared Airend
Increased bearing life (L-10 life in excess of 100,000 hours) due to large tapered roller bearings.RC-60-100.jpg
Intensive Injection
6-8% improved full load operating efficiency provided by patented intensive injection lubrication system.
Air Logic Solid State Electronic controller
Every option available in the industry is standard on the Air Logic controller.
|
|
Process-Gas Screw Compressor
Process-Gas Screw Compressors are used in all applications where heavily contaminated components in gases and gas mixtures would curtail the life of other types of compressors. Their low speed of rotation permits direct injection of large quantities of liquid.
These oil-free compressors attain volume flows of up to 100,000 m³/h and an outlet pressure of 50 bar.
They are used in innumerable applications:
* Refineries
* Petrochemical plants
* Chemical production plants
* Oil and gas production
* Plants for iron and steel production
* Mining.
|
|

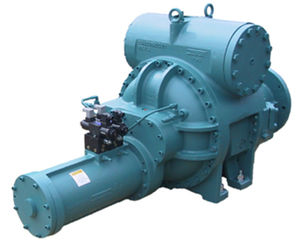

Compressor, Bare Screw TDSH
Frick Refrigeration offers the largest range of screw compressors in the world. With 38 models ranging from 71 CFM to 5067 CFM, a screw compressor is available for almost every gas/refrigerant application. Frick sets the standard for compressor quality.
|
|
|
|
|
|
Compressors

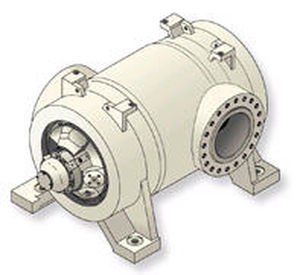

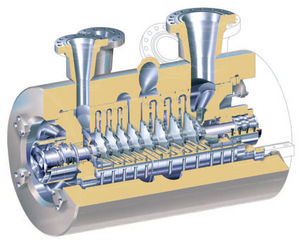

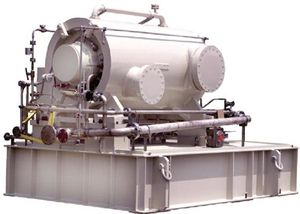

With thousands of compressors in service around the world, Elliott is a leader in gas compression, delivering state-of-the-art performance in a diverse range of industries including petroleum refining, petrochemical processing, cryogenic refrigeration (LNG), oil and gas production, gas compression and other industrial processes.
Elliott’s position on the cutting edge of compressor technology includes a number of engineering firsts. We pioneered high-pressure casing technology, the development of fabricated casings and improved impeller welding techniques. Elliott was among the first to utilize magnetic bearings in critical service centrifugal compressors.
Today Elliott compressors incorporate proprietary EDGE technology with advances in aerodynamics, rotor dynamics, computerized equipment selection, process simulation, and metallurgy, as well as totally engineered oil consoles that supply lubrication to the rotating equipment. We understand that change is essential in achieving and maintaining a competitive edge, and together with our customers and suppliers,we continue to innovate, improve and expand our extensive portfolio of products and services.
Elliott’s full line of centrifugal and axial compressors are available in a wide range of configurations to meet mechanical considerations and process demands. Common configurations include straight-through flow, double flow, side streams, iso-cooling, and back-to-back.
|
|
| ... products without technical information |
| |
Greater power, higher efficiency and availability and rugged design are key issues for mechanical drive markets.
With more than 15 million hours of proven performance, the cornerstones of our VPS Series packages are the compact, rugged, and reliable ASE Series aero-derivative gas turbines. Space and weight are at a premium in some mechanical drive applications, and the VPS Series packages have the smallest footprint and highest installed power to weight ratio in their class. This means that VPS Series twin-shaft mechanical drive packages are well suited for centrifugal pump and compressor applications onshore and offshore.
Our packages are designed for reliability, efficiency and simplified installation. The proven design incorporates a simple cantilever mounting of the ASE Series gas turbine to the speed reduction gearbox. The close-coupled design of the VPS Series packages minimizes the footprint and eliminates alignment concerns between the gas turbine and gearbox.
|
|
... see all the products in the category
Turbines
|
| ... products without technical information |
| |
| ... products without technical information |
| |
| ... products without technical information |
| |
|
Eliminating dust, oil, moisture, carbon monoxide and any other harmful particle, the MED make respirable the most difficult environments. Certified THIS Medical, these treatment units of the compressed air are composed of a drier by adsorption, filters and catalysts. They fontionnent starting from any electrical motor compressor and can feed to 15 people in respirable air in conformity with standard NF INTO 12021.
|
|
|
|
