All series are a non-rotating rising stem design, working pressures to 150,000 psi (1379 bar). Tubing sizes range from 1/4" to 1".Tubing connections utilizes Autoclave's coned and threaded design. Operating temperatures from -423°F to 1200°F (-252°C to 649°C). 316 stainless steel construction, other options available.
|
|
|

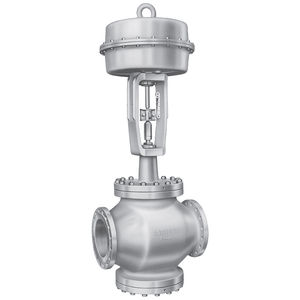

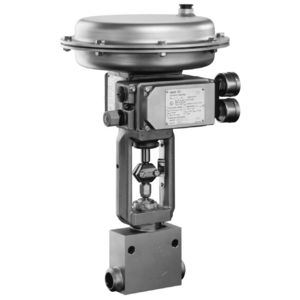

SchuF manufactures specialised Contol Valves for the Chemical, Petrochemical, Oil, Refining, Mining and Power industries. Our control valves range from multistage angle to multiport diverter valves. They include high pressure, high temperture let down valves, boiler, feed and start up valves, disc and piston drain valves with contoured discs and rams, distributor control valves, and bellows sealed valves.
|
|
|
Demand continues to mount for improved comfort conditioning combined with lower operating costs. New architectural designs have created real problems for contractors and engineers to maintain humidity control at reduced loads, and to control load variations. Refrigeration and air conditioning systems are usually designed to provide a given capacity at maximum conditions. These operate with little fluctuation throughout a narrow load range. However, only the larger size machines make any provisions for operation at reduced capacity. In some systems, integral cylinder unloading, the installation of a gas engine drive with variable speed control, or even multiple smaller systems, provide a logical solution.
|
|
* A complete valves catalog :
– Needle valve (manual or pneumatic)
– Ball valve (Spheric, manual, pneumatic and electric)
* A fitting range :
– Adapter mâle/femelle, mâle/mâle and union
– Coupling
– Tee, Elbow, cross
* A large choice of tubing 316 SS and 304 SS :
– Tubing section 1/4 , 5/16 , 3/8 , 9/16 , 1
– Nipple section 1/4 , 5/16 , 3/8 , 9/16 , 1
* A lot of accessories :
– Pressure gauges, pressostat, relief valve
– High pressure flexibles, rupture discs...
|
|
|
High Pressure Valves (up to 350psig) are used for a variety of applications including feeding high pressure reactors and pneumatic systems. Very heavy castings and special seals allow these valves to operate at incredible pressure while minimizing leakage.
|
|
|
|
|
|
Coaxial:
The high pressure valves are based upon the technical concept of the coaxial valve. There are 2/2 and 3/2 way versions with threaded or flanged connections. All types are available with pneumatic and hydraulic actuation. These high pressure valves offer the same advantages as the standard co-ax valves and their multiple range of applications.
The A 45 and KB valves are suitable for pressures from 0 to 400 bar, and can be used for gaseous, liquid and neutral media. They have been successfully proven in refrigeration technology.
Lateral:
The high pressure lateral valves are available in 2/2 and 3/2 way version. Depending on the application, the available body materials are brass and stainless steel. As direct acting or externally controlled valves with pneumatic actuation the lateral high pressure valves are capable of handling system pressures up to 500 bar, thereby covering a wide range of applications on test benches, compressors, filling plants, for gaseous media as well as in water technology.
|
|
High Pressure Stop Valve, forged Form with
screwed bonnet and internal stem thread
universal applications.
Typ : AVD, AVI
|
|
|
|
|
|
Features
* High-pressure pinch valve design
* Heavy-duty polyester or Kevlar® reinforced high-pressure sleeve is the only wetted part
* Sealed body design
* Full pressure rated body
Materials of Construction
* Ductile, steel, stainless steel bodies
* Bevel Gear 4:1, 8:1, 16:1, or 22:1 actuator
* ANSI B 16.5 Class 300 flanges
* Optional Class 150 flanges and metric flanges available
* Available Elastomers
The Series 9000 high-pressure manual pinch valve is designed with ANSI Class 300 flange drilling. The heavy-duty elastomer sleeves are reinforced with high strength nylon, polyester fabrics, or Kevlar® material. Several heavy-duty sleeve designs are available. The elastomer sleeve will close even on solids, and the flexing action of the sleeve eliminates the possibility of scaling. Two heavy-duty pinch bars close the sleeve. All valve working parts are isolated from the process by the sleeve. Combining these features with a sealed body design and no packing to maintain, results in a simple, rugged, no-hang-up, maintenance-free valve.
|
|
- Model / code: R040
- Category: Stop Valve
- Body Material: Stainless steel
- Internal Ø: 6 mm
- Connections: 1/4" bspp
- Tightness: 10-4 N cm 3/s
|
|
| ... products without technical information |
| |
For operating under full pressure!
For use at extremely high pressure (ex. high pressure water jet-technology) Rötelmann offers ball valves made of high-tensile chrome molybdenum steel with a nominal pressure of PN 2.500 (nominal size DN 10).
|
|
|
Autoclave's high-pressure ball valves have been designed to provide superior quality for maximum performance within a variety of valve styles, sizes, and process connections for pressures to 20,000 psi. Our unique design innovations include an integral one-piece trunnion mounted ball and stem that eliminates the shear failure common in two piece designs, re-torqueable seat glands that result in longer seat life, and lower friction stem seal that reduces actuation torque and enhances cycle life.
|
|
The H27 Series is built for endurance and specifically designed for High Pressure applications, with a working pressure range up to 6,000psi; ANSI Class up to 2500.
The unique ball and seats configuration assures smooth two-way flow, tight shut off and instant adaptability to changing pressures and temperature variations. The H27 Series delivers reliable performance in the most demanding applications such as offshore, petrochemical and oil refining. The H27 Series features long-life valve construction for less maintenance, and comes in carbon, steel, stainless, steel and various exotic materials. A range of end connections can be used such as welded, threaded and any flange type. Other options available include High Cycle Operation, Fire Safe, NACE and more.
Application
- Offshore drilling
- Oil & Gas production
- Chemical
- Petrochemical
- Refining
- Energy
|
|
Hydratron can supply from stock a wide range of High Pressure Ball Valves suitable for either gas or liquid service at pressures of up to 20,000 PSI (1,400 Bar )
Valves can be supplied with NPT, Medium Pressure, or High Pressure connections with wetted parts manufactured from 316 Stainless Steel.
Both 3 and 2 way models are available which can be fitted with air actuators if required.
|
|
Series 700 - DN13 to DN25
Body, ball, stem : steel or stainless steel. 1.4571
Fields of application:
hydraulics, high pressure cleaning systems, press vehicles, pressure test equipment (Seats and seals adapted to application)
|
|
The ALBA 2-piece ball valve, with full bore, is used as an ON-OFF valve for: chemical products, for water and pneumatic installations, gas, water, vacuum. For steam within limited working conditions and with special seats. All parts have to be adequately degreased if the valve have to be used for oxygen.
Temperature: For fluids from -20°C a +150°C
Pressure: For fluids from 100 bar to 40 bar
|
|
High pressure ball valves:
This range offeres a reliable option for the high pressure application. These valves are recommended for the use in Oil, gas,petrochemicals where the long life is required.
|
|

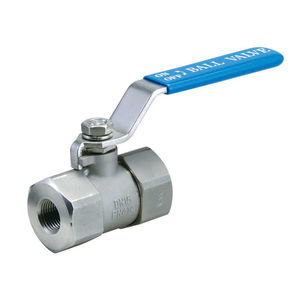

2-PC HIGH PRESSURE BALL VALVE
RATING: 6000 WOG/ PN414
FULL BORE, THREADED END
SS316/ SS304/ WCB BODY
WITH/ WITHOUT MOUNTING PAD ISO5211
|
|
3-PC HIGH PRESSURE BALL VALVE
RATING: 3000WOG/ 200BAR
2000WOG/ 130BAR
FULL/ REDUCED BORE
S.S.316/ S.S.304/ WCB BODY
THREADED/ SOCKET/ BUTT WELD
WITH/ WITHOUT API 607 FIRE SAFE
NORMAL/ DIRECT MOUNTING PAD ISO5211
|
|
| ... products without technical information |
| |
|
All valve series utilize a non-rotating rising stem design, with working pressures to 150,000 psi (1379 bar). Tubing sizes range from 1/4" to 1". Tubing connections utilize Autoclave Engineers coned and threaded design or our Speedbite Ferule Style connections for pressures up to 15,000 psi. Operating temperatures from -423°F to 1200°F (-252°C to 649°C). 316 stainless steel construction, other material options available.
|
|
Hydratron can supply from stock a wide range of high pressure needle valves suitable for working at pressures of up to 100,000 PSI (7,000 Bar )
They are available with NPT ( 10,000 PSI ), Medium Pressure ( 20,000 PSI ) and High Pressure ( 60,000 PSI ) connections to suit 1/4", 3/8", 9/16", 3/4" and 1" OD tubing.
The valves are manufactured with wetted parts manufactured from 316 SS as standard but can be supplied with wetted parts manufactured from other exotic materials such as Hastelloy or inconel if required.
The range available from Hydratron includes air operated valves, valves fitted with replaceable seats and valves fitted with fine metering spindles.
|
|
- Hand operated or air operated valves.
- Working pressures up to 14.000 bar / 200,000 psi.
- Large orifices at rated pressures.
- Excelent flow capacity performance.
- Safety quaranteed by special safety cover.
- Smooth operation under pressure.
- High quality stainless steel.
- Panel mounting or in line connection.
- Suitable for fluids or gases.
WE ARE LOOKING FOR A DISTRIBUTOR IN ITALY. Please contact us if you are interested!
|
|
|
This type of valves are designed for heavy duty applications. These valves are widely used in the high pressure testing equipments. Other design features are similar to ANV 1
|
|
|
|
