Hollow-shaft encoders are designed with a bored through-hole or blind-bore at the center, and mount directly onto a shaft or axle. They convert the shaft's angular position or displacement into an analog or digital code.
Hollow-shaft encoders are designed to be mounted behind rotating parts, such as brushless motors, stepper motors, fans, cranes, elevators and other automated devices. They are commonly used on servo motors in order to provide position, motion and displacement feedback for automation purposes.
The hollow-shaft encoder is designed to be mounted directly onto the drive shaft, secured using a clamp, feather key, set-screw, press-fit or adhesive. The advantage of the hollow-shaft design is that there are no couplings. Those with through-holes can be mounted at any convenient position along the shaft, while blind-bore types are generally designed to be mounted on short motor shafts.
When selecting a hollow-shaft encoder, be sure to determine the exact diameter of the shaft or axle in question. The shaft's rotational speed (RPM) is another important factor.
- No coupling
 |
 |
Magnetic incremental hollow shaft rotary encoder ERM 200 series DR. JOHANNES HEIDENHAIN GmbH
The robust ERM magnetic modular encoders are especially suited for use in production machines. Their large possible inside diameters...
 |
 |
Magnetic incremental hollow shaft rotary encoder THS25 Series TIMKEN Europe
The THS25 high-resolution, magnetic hollow-shaft incremental encoder offers reliable performance at an economical price. Its patented magnetic technology, available in a range of resolutions, provides increased performance over standard optical encoders in high shock and vibration environments. The design...
 |
 |
Hollow-shaft optical absolute rotary encoder 12 - 17 bit | AC36 HENGSTLER
Overall length: 36 mm For equipment engineering and industry Up to 17 Bit Resolution...
 |
 |
Single turn absolute hollow-shaft rotary encoder max. 16 bit, max. ø 12 mm TURCK
With absolute encoders, each incremental angle is assigned a code pattern. The position...
 |
 |
Hollow-shaft incremental rotary encoder max. 12 000 rpm, IP 42 | BRID Baumer
Features ––Programmable encoder ––Magnetic...
 |
 |
Magnetic incremental hollow shaft rotary encoder max. 184 320 ppr | PMIS4, PMIR7 ASM
Magnetic rings for rotative applications with...
 |
 |
TTL, HTL or sine 0.5 V interfacesss Resolution of up to 65,536 lines per revolution Individual programming of the interface,...
 |
 |
Magnetic incremental hollow shaft rotary encoder THS25 TIMKEN
The THS25 high-resolution, magnetic hollow-shaft incremental encoder offers reliable performance at an economical price. Its patented magnetic technology, available in a range of resolutions, provides increased performance...
 |
 |
Hollow-shaft incremental rotary encoder max. 6 000 rpm | HS20 BEI Industrial Encoder Division
The HS20 is a compact, rugged encoder designed with the needs of the small motor market in mind. It can be used where lighter duty encoders are not suitable or cost effective....
 |
 |
Hollow-shaft optical incremental rotary encoder 10 - 2 500 ppr | 844A Allen Bradley
Bulletin 844A Hollow-Shaft Incremental Encoders offer you the advantages of...
 |
 |
Hollow-shaft incremental rotary encoder ø 40 mm, max. 3 600 ppr | E6H-C series OMRON
Hollow-shaft Encoder Incremental...
 |
  |
The model encoder is a miniature single-turn absolute rotary encoder with opto/magnetic electronic technology....
 |
 |
Hollow-shaft optical incremental rotary encoder 6000 rpm, IP 67 | Sendix H120 KÜBLER
Product familyH120DimensionsØ 100 mmHollow shaft max.Ø 28.00 mmSpeed...
 |
 |
Hollow-shaft incremental rotary encoder max. 2000 rpm, 12 - 30 VDC | FGH 4 Johannes Hübner Giessen
Incremental hollow shaft encoder FGH 4 Shaft-mounted device with its own bearing These robust hollow shaft encoders extend the practical range of attachment methods for rotary encoders. In this overhung construction the encoder is mounted directly onto the drive shaft and secured using only a clamp or feather key. An adjustable torque bracket prevents the encoder rotating. This provides...
 |
 |
Hollow-shaft incremental rotary encoder 2 - 36000 ppr, IP64 | E400/E410 ELAP
The range of incremental encoders fit to be coupled to motor shafts includes different mechanical types: the series E400, with flange diameter 53.5 mm and E470, with flange diameter 72 mm, provide a coupling joint, while the series E410 and E430 avail on a hollow shaft. Different measures are available for the joint hole and for the shaft diameter. All...
 |
 |
An incremental encoder is a pulse generator that provides square–wave signals and a zero index. The disc has 2 channels divided into...
 |
 |
Absolute hollow-shaft rotary encoder KINAX HW730/HW730-Ex Camille Bauer AG
Converts the angular position of a shaft into a load independent direct current signal, proportional to the angular shaft position. The unit is contact free. Main features • Robust transmitter for angular position...
 |
 |
Hollow-shaft optical incremental rotary encoder Ø 58 mm, max. 5 000 ppr | C59, C60, C58 LIKA
Through hollow shaft up to Ø15mm. Resolution up to 1024 pulses/rev. Radial cable output. Different fixing possibilities: · C58: standard...
 |
 |
Absolute hollow-shaft rotary encoder Ø 15 mm, IP 65 | WDG-DP-B Wachendorff Automation GmbH & Co
WDG-DP-B Absolute hollow bore (blind) encoder,...
 |
 |
Hollow-shaft optical incremental rotary encoder Ø 6 mm, 6000 rpm | EN 413 GIVI MISURE
EN 413 - Optical rotary encoder of small overall dimensions. -...
 |
 |
Incremental rotary encoder with hollow blind shaft 58 mm | IES TR-Electronic GmbH
The blind shaft is available as plain shaft or with pin/groove....
 |
 |
Magnetic incremental hollow shaft rotary encoder max. 2 560 ppr, ø 20 mm | IG07M SIKO GmbH
Rough environmental conditions are the business of the IG07M: Robust magnetic scanning in a stable die-casting...
 |
 |
Absolute hollow-shaft rotary encoder 12 bit | HBA2 US Digital
The HBA2 is a fully programmable blind hollow bore 12 bit absolute encoder...
 |
 |
:: ZOD & ZOH - BUTTERFLY MOUNT :: * Thru-bore is...
 |
 |
Compact hollow-shaft incremental rotary encoder -20 - 85 °C, 60 kHz, 5 VDC | SE22 series Intecno

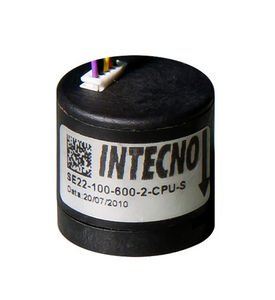

SE22 is a high performance, hollow shaft micro encoder. The device provides one, two (or two plus index) incremental encoding square wave signals outputs. The encoder is available with several resolutions, shaft diameters and output circuits,...
 |
 |
SE16 is an high performance, low cost, hollow shaft encoder family, very easy to assembly on shaft diameter from 1.5mm to 3.175mm. According to the model, the device provides...
 |
 |
Hollow-shaft incremental rotary encoder ø 58 mm, 8000 ppr | E58 series Autonics
Major Features * A variety of applications supported with diverse types - Shaft / flange type : shaft clamping type, shaft synchro...
 |
 |

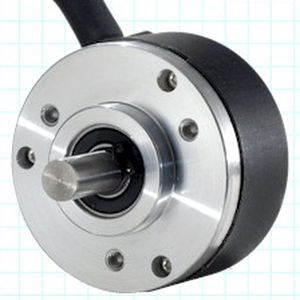

The Model 15S Accu-Coder™ offers a high performance feedback solution in a low profile package, making the Model 15S ideal for commercial and light-duty industrial applications. This...
 |
 |
Hollow-shaft incremental rotary encoder max. 2 500 ppr | HS15 series Koyo Encoder
FEATURES 1.5" O.D., Hollow Shaft designed with 1" Thickness Up to 2500 P/R, 120°C...
 |
 |
Explosion proof hollow shaft absolute rotary encoder max. 16 bits, ATEX Scancon
EXME - SSI Diameter : 78 mm Protocol : SSI Resolution : up to 16 bits (Singleturn) up to 30 bits (Multiturn) Hollow Shaft : ø 14 mm Option : Stainless Steel – AISI 316 EXME -...
 |
 |
Hollow-shaft incremental rotary encoder Model 380 Electro-Sensors
Rotary Shaft Encoders are ideal for use on any rotating shaft to provide a digital output signal to tachometers, counters, speed switches, motor controls, or anything requiring a pulse input. Flexible shaft couplings are available as an option to compensate for shaft misalignment, and are recommended for most applications. Electro-Sensors Rotary Shaft Encoders convert...
 |
 |
Hollow-shaft incremental rotary encoder max. 6 000 rpm | DG150, DG151 RSF Elektronik
DG 121 dimensions Lines: to 5.400 Output: square wave signals via Line Driver (RS 422 Standard) Supply (selectable) 5...
 |
 |
Hollow-shaft incremental rotary encoder 26000 rpm AMO GmbH

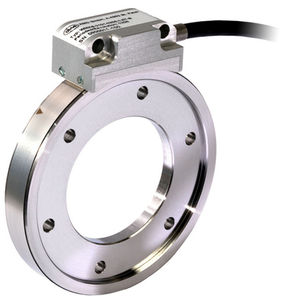

Spindle Encoder The spindle encoder, based on the inductive AMOSIN measuring principle, was designed specifically for machine spindles. Our encoder...
 |
 |
Hollow-shaft incremental rotary encoder 500 series (RHI) Leine & Linde
The 500 series (Robust) Versatile and modular – these are the encoders in the 500 series. The encoders conform to a European industrial standard and they have a hollow...
