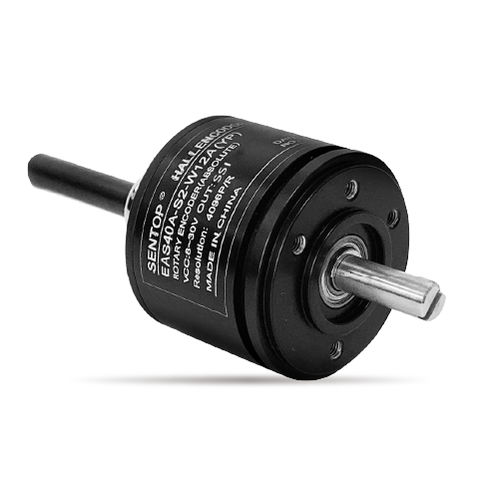

Absolute angle encoder EAS40A-S2
magnetic12-bitsingle-turn

Absolute angle encoder - EAS40A-S2 - SENTOP by Shanghai Sibo M&E Co., Ltd. - magnetic / 12-bit / single-turn
Absolute angle encoder - EAS40A-S2 - SENTOP by Shanghai Sibo M&E Co., Ltd. - magnetic / 12-bit / single-turn
Absolute angle encoder - EAS40A-S2 - SENTOP by Shanghai Sibo M&E Co., Ltd. - magnetic / 12-bit / single-turn - image - 2
Add to favorites
Compare this product
Go to the SENTOP by Shanghai Sibo M&E Co., Ltd. website for more information

Characteristics

Type
absolute
Technology
magnetic
Absolute encoder resolution
12-bit
Construction
shaft-mounted, single-turn
Output signal
SSI
Material
aluminum
Protection level
IP67
Applications
for motors
Incremental encoder résolution (pulses per revolution

4,096 unit

Process temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

Product overview
EAS40A-S2 absolute single-turn magnetic encoder. High-protection magnetic absolute encoder with SSI differential output and TTL signal levels, designed for screw and servo mount applications where compact, sealed angle measurement is required.

Features
  • Magnetic absolute single-turn encoder
  • High protection rating: IP67
  • Equipped with one pair of precision ball bearings
  • Output: SSI differential (TTL compatible)
  • Screw & servo mounting options


General Mechanical Specifications
Protection degree: IP67
Starting torque: <1mN·m
Life expectancy: >100,000,000 cycles
Mass: Approx. 120 g
Housing material: Anodized aluminium alloy
Shaft material: Stainless steel

Environmental Specifications
Operating temperature range: -40℃ to +85℃
Storage temperature range: -40℃ to +85℃
Vibration: 100m/s², 55Hz–2000Hz (EN 60068-2-6)
Shock: 1000m/s², 6ms (EN 60068-2-27)
ESD durability: Contact ±8KV, Air ±15KV (EN61000-4-2:2009)
EMS durability: 10V/m (80MHz–1GHz, 1kHz 80% AM) (EN61000-4-3:2006+A1:2010)

General Electrical Specifications
Standard model: EAS40A-S2-W12A
Applied voltage: 9V–30V
Current consumption (no-load): ≤80mA
Single-turn resolution: 4096 (12 bit)
Interface: SSI differential signal
Code rule: Binary
Signal level: TTL
Update time: 10 μs
Insulation resistance: >1000 MΩ (500V D.C.)
Dielectric strength: 1 min (500V A.C.)

Special Specifications Available
Special shaft: customized shaft length, diameter or machining (e.g., slotted, flattened, drilled) available on request.

Technical specifications
  • Model: EAS40A-S2 (standard variant: EAS40A-S2-W12A)
  • Type: Absolute single-turn magnetic encoder
  • Resolution: 12-bit (4096 steps)
  • Output / Interface: SSI differential, TTL compatible
  • Supply: 9V–30V, ≤80mA no-load
  • Environmental rating: IP67
  • Operating temperature: -40℃ to +85℃
  • Mechanical: anodized aluminium housing, stainless steel shaft, approx. 120 g
  • Reliability: life expectancy >100,000,000 cycles
  • EMC / ESD: conforms to EN61000-4-2 / EN61000-4-3
