Absolute rotary encoder EBS40A-S2
magnetic12-bit14-bit

Absolute rotary encoder - EBS40A-S2 - SENTOP by Shanghai Sibo M&E Co., Ltd. - magnetic / 12-bit / 14-bit
Absolute rotary encoder - EBS40A-S2 - SENTOP by Shanghai Sibo M&E Co., Ltd. - magnetic / 12-bit / 14-bit

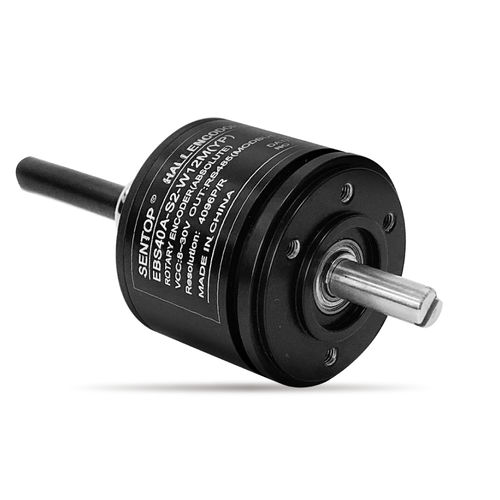

Absolute rotary encoder - EBS40A-S2 - SENTOP by Shanghai Sibo M&E Co., Ltd. - magnetic / 12-bit / 14-bit - image - 2
Add to favorites
Compare this product
Go to the SENTOP by Shanghai Sibo M&E Co., Ltd. website for more information

Characteristics

Type
absolute
Technology
magnetic
Absolute encoder resolution
12-bit, 14-bit
Construction
single-turn
Output signal
RS-485, CANopen
Protection level
IP67
Incremental encoder résolution (pulses per revolution

Max.: 16,384 unit

Min.: 4,096 unit

Process temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

Product
  • EBS40A-S2 — Absolute single-turn magnetic encoder with RS485 or CAN output


Characteristics
  • Magnetic sensing technology
  • High protection degree: IP67
  • One pair of precision ball bearings
  • Output options: RS485 (Modbus RTU) or CAN (CANopen)


General Mechanical Specifications
Protection degree: IP67
Starting torque: <1mN·m
Life expectancy: >100,000,000
Mass: Approx. 120 g
Housing material: Anodized aluminium alloy
Shaft material: Stainless steel


Environmental Specifications
Operating temperature range: -40℃～+85℃
Storage temperature range: -40℃～+85℃
Vibration: 100m/s², 55Hz~2000Hz (EN 60068-2-6)
Shock: 1000m/s², 6ms (EN 60068-2-27)
ESD durability: Contact discharge ±8KV, Air discharge ±15KV (EN61000-4-2:2009)
EMS durability: 10V/m (80MHz～1GHz, 1kHz 80% AM) (EN61000-4-3:2006+A1:2010)

General Electrical Specifications (RS485)
Standard model: EBS40A-S2-W12485
Applied voltage: 9V-30V
Current consumption (no-load): ≤70mA
Single-turn resolution: 4096 (12Bit); Max 16384 (14Bit)
Protocol: Modbus RTU slave
Baud rate: 1200~115200bps (configurable, default 9600bps)
Address: 1~200 (configurable, default 1)
Insulation resistance: >1000MΩ (500V D.C.)
Dielectric strength: 1 min (500V A.C.)

General Electrical Specifications (CAN)
Standard model: EBS40A-S2-W12CAN
Applied voltage: 10V-30V
Current consumption: <80mA
Single-turn resolution: 4096 (12Bit); Max 16384 (14Bit)
Independent linearity tolerance: ±0.3%
Repeatability accuracy: ±1 LSB (actual accuracy depends on installation)
Protocol: CANopen
Insulation resistance: >1000MΩ (500V D.C.)
Dielectric strength: 1 min (500V A.C.)

Special Specifications Available
  • Special shaft: customized length, diameter or machining (e.g. slotted, flattened, drilled)
  • Customized protocol: protocol variants available on request


Technical data / Key specifications
  • Model: EBS40A-S2
  • Type: Absolute single-turn magnetic encoder
  • Output options: RS485 (Modbus RTU) or CAN (CANopen)
  • Resolution: 12-bit (4096) standard, up to 14-bit (16384) max
  • Protection: IP67
  • Operating temperature: -40℃ to +85℃
  • Housing: Anodized aluminium alloy; Shaft: Stainless steel
  • Mass: Approx. 120 g
  • Insulation resistance: >1000MΩ (500V D.C.)
  • Dielectric strength: 1 min (500V A.C.)
