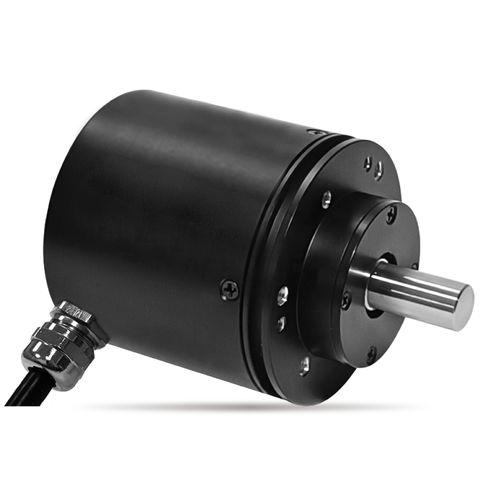

Incremental rotary encoder EID58A
magnetic12-bitsolid-shaft

incremental rotary encoder
incremental rotary encoder
incremental rotary encoder
Add to favorites
Compare this product


Characteristics

Type
incremental
Technology
magnetic
Absolute encoder resolution
12-bit
Construction
solid-shaft
Supply voltage
24 Vdc, 5 VDC, 15VDC, 12 Vdc, 8VDC, 9VDC, 6VDC
Material
aluminum, stainless steel
Protection level
ultra-rugged, shock resistant, vibration-resistant, rugged, explosion-proof, heavy-duty, dust-proof, water-resistant, IP67
Applications
for robotics, industrial, for motors, for harsh environments, for OEM, for elevators, for the food and beverage industry, marine, exterior, gas and oilfield, for mining
Other characteristics
compact, high-resolution, high-accuracy, programmable, high-speed, for motor feedback, heavy-duty, safety
Incremental encoder résolution (pulses per revolution

Max.: 4,096 unit

Min.: 1 unit

Housing diameter

58 mm
(2.28 in)

Shaft diameter

6 mm, 8 mm, 10 mm, 12 mm
(0.24 in, 0.31 in, 0.39 in, 0.47 in)

Length

86.5 mm
(3.406 in)

Rotational speed

12,000 rpm
(75,398 rad.min-1)

Process temperature

Max.: 105 °C
(221 °F)

Min.: -30 °C
(-22 °F)

Description

EID58A Series Magnetic Encoder - Magnetic encoder - Any PPR up to 4096 available - High protection degree IP67 - With 1 set of precision ball bearings - Heavy-duty - Antimagnetic interference - Screw&Servo mount - Signal type: incremental signal - Housing diameter: Φ58mm - Shaft type: front shaft - Connection method: - cable on the side of the housing (standard), cable on the rear of the housing (optional), connector on the side of the housing (optional), connector on the rear of the housing (optional) - Output direction: clockwise or counterclockwise - Number of pulses: 0001-4096 ppr - Output form: push-pull (standard), line driver (optional) General Mechanical Specifications - Protection degree: IP67 for the housing; IP65 for the shaft (standard), IP67 for the shaft (optional) - Operating torque: ≤50mN.m - Max. speed: 12,000rpm - Life expectancy: 100,000,000 - Housing material: Anodized aluminium alloy - Shaft material: stainless steel - Shaft load: radial 80N, axial 40N - Shaft diameter: Φ6mm /Φ8mm /Φ10mm /Φ12mm Environmental Specifications - Operating temperature range: - 30℃~+105℃ - Storage temperature range: - 30℃~+105℃ General Electrical Specifications - Standard model: EID58A-S1-W4096P - Applied voltage: 5V- 30V - Output high level: >3V - Output low level: <0.25V - Output form: push- pull output - Number of output pulses: 4096 ppr - Output propagation delay: <2µs - Current consumption (no- load): <20mA Special length of shaft, special diameter or special machining on the shaft (like shaft slotted, fatted etc.) can be customized.
