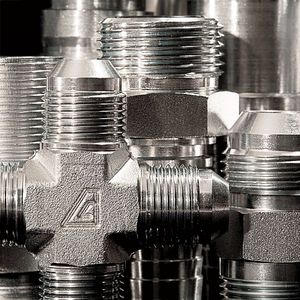

Parker’s Triple-Lok 37° flare tube fittings have been used in industry since Mr. Parker pioneered the product in the 1930s. The 37° flare fitting is the most popular industrial tube/hose fitting connection in the world.
Today, Parker offers a broad range of Triple-Lok fittings meeting SAE J514, ISO 8434-2 and military standards and specifications.
The Triple-Lok design is quite simple. The tube fitting consists of three pieces: the body, the nut and the sleeve. The tube end is flared at a mating 37° angle and sandwiched between the fitting nose (seat) and the sleeve creating an effective seal between the fitting nose and tube flare or hose.
Parker’s Triple-Lok fittings are manufactured in steel, 316 stainless steel and brass for optimum fluid compatibility and corrosion resistance. Furthermore, available sizes range from 1/8" tube O.D. to 2" tube O.D. in several configurations. Adaptability to global ports is another key benefit of Triple-Lok. (Standard ports include: SAE, straight thread ISO-6149, NPT, BSPT, BSPP and DIN.)
The Triple-Lok tube fitting is also readily available for metric tubing and hose adapter applications. Simply by changing the industry standard sleeve, the same Triple-Lok body can be adapted to metric tubing in sizes ranging from 6 mm tube O.D. to 38 mm tube O.D. Likewise, by using only the body without the nut and sleeve, the Triple-Lok fitting is used as an industry standard hose adapter.
|
|
Quick-release couplings CBI 06 for the Plastics Industry
COOLING of machinery.
TEMPERATURE CONTROL lines on thermoplastic injection moulds
- Automatic locking
- Non-spill flat-faced design: no air introduced into the circuits, no pollution of the work environment, protection of tools and production.
- Greater efficiency: optimal flow for minimum overall size, direct and turbulence-free flow of the fluid.
- Perfect tightness
Applications
- Cold of hot water
- Hydraulic and mineral oils
- Mineral or synthetic origin heat transfer oils
- Water glycol, hot water or steam
|
|
Couplings to separate and connect hydraulic lines
versions for manual or automatic coupling
versions also for pneumatic and vacuum lines
can be coupled or uncoupled against pressure or only in depressurised mode
ND 3, 5 and 8
max. operating pressure 200 bar up to 500 bar
|
|

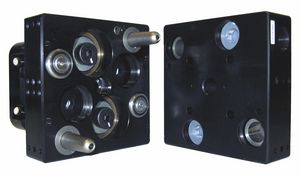

MULTI PLATES STAUBLI RMI FOR TEMPERATURE CONTROL CIRCUITS AND HIGH PRESSURE HYDRAULIC
* Semi-automatic lock multi-coupling plates incorporating, within compact overall dimensions.
* Quick locking system
* Fool-proof connection
* 4 diameters : 6 - 9 - 12 or 16 mm
* The two halves plates can only be connected together inone position : any cross connection is impossible.
* Large choice of seals are suitable for both hot and cold fluids
* Large choice of coupling sizes according to your flow requirements
STAUBLI offers you a full range of possibilities in terms of connections, diameters, flow rates, plugging, types of locking, all on one plate. Several energy sources can be connected simultaneously, without risk of errors or impact on performance in terms of flow-rate and tightness.
With STAUBLI multi-connector plates, your connections will be tenfold!
|
|
SPX range:
- Flush face, non spill.
- Complete range.
- Easy to operate.
- Easy to handle.
- Self-guided connection.
- Stäubli connection profile.
- Reliable ball locking mechanism.
- High performance.
|
|
The innovative hydraulic pipe measuring points serv-Clip® for the MAINTENANCE OF YOUR HYDRAULIC SYSTEMS.
No only better …different!
* QUICK INSTALLATION (ONLY 3 MINUTES) - NO NEED TO CUT OPEN PIPES
* Type 1 NO SHUTDOWN of installations for mounting on pressurized pipes
installation of pressure switch, gauge and sensors, particle counters
* Type 2 SHORT SHUTDOWN of installations for mounting on NON-pressurized pipes.
add. to type 1- installation of flow rate, leackage, pressure, temperature and aqua sensors.
* Up to 630 bar / 9100 psi – screwed coupling M 16 X 2
* Particle measurement according to ISO or NAS classes
Technical Data :
* for diameters 10 - 42 mm / Tube (OD) 3/8" - 2"/ Pipe (ID) ¼" to 3"
* Working pressure up to 630 bar/ Steel wall thicknesses up to 5mm
* Working temperature from -40°C to +120 °C
* Viton O-Ring in leak proof clamp up to 200°C
COMBINE SERVCLIP WITH OUR FLOW RATE AND LEAKAGE SENSORS FLUID-CHECK AN ECONOMICAL AND INNOVATIVE CHOICE FOR YOUR MAINTENANCE.
|
|
|
|
|
|
The innovative hydraulic pipe measuring points serv-Clip® for the PROFESIONAL MAINTENANCE OF YOUR HYDRAULIC SYSTEMS.
No only better …different!
* QUICK INSTALLATION (ONLY 3 MINUTES) - NO NEED TO CUT OPEN PIPES
* Type 1 NO SHUTDOWN of installations for mounting on pressurized pipes
installation of pressure switch, gauge and sensors, particle counters
* Type 2 SHORT SHUTDOWN of installations for mounting on NON-pressurized pipes.
add. to type 1- installation of flow rate, leackage, pressure, temperature and aqua sensors.
* Up to 630 bar / 9100 psi – screwed coupling M 16 X 2
* Particle measurement according to ISO or NAS classes
Technical Data :
* for diameters 10 - 42 mm / Tube (OD) 3/8" - 2"/ Pipe (ID) ¼" to 3"
* Working pressure up to 630 bar/ Steel wall thicknesses up to 5mm
* Working temperature from -40°C to +120 °C
* Viton O-Ring in leak proof clamp up to 200°C
COMBINE SERVCLIP WITH OUR FLOW RATE AND LEAKAGE SENSORS FLUID-CHECK AN ECONOMICAL AND INNOVATIVE CHOICE FOR YOUR MAINTENANCE.
|
|
|
The patented Variacor system gives the HydroVariacor hydraulic fitting unprecedented flexibility of use. Indeed, the user can finally angularly configure the connection with his needs, the installation is some simplified, only one connection covers the ranges of right union, bent to 90°, 135° …. The high technical quality of this coupling ensures compact and robust connection, offers possibilities of installations and integration of systems which seemed until now delicate, if not impossible.
|
|
Olmark promotes the most advanced technologies, involving the design, the assembly, the thermic adn superficial treatment, in order to guarantee constant improvement on every fitting.
The production of Olmark fittings and ferrules is composed of a wide and complete range:
IP/BP- fittings and ferrules of standard type
for braided and spiralled hoses till R9/R - 4SP
II/BI - fittings and ferrules of Interlock type (with internal skiving) for
spiralled hoses like 4SH, SSH4, R13,R15
IX/BX- fittings and ferrules in stainless steel AISI 304, 316
for braided
and spiralled
hoses till R9/R,4SP
The characteristics of connection of crimped fittings are in conformity with ISO, BSP, METRIC, JIC, DIN, JIS, ORFS and SAE references.
|
|
|
|
|
|
Flat-face couplings and nipples that minimize oil spillage in mobile hydraulic applications up to 25 MPa. Series X65 couplings provide “clean connections” in medium-pressure applications, such as on construction equipment, agricultural machinery, and forestry equipment, by minimizing hydraulic fluid leakage that pollutes the atmosphere and hydraulic systems in which it infiltrates.
Meeting design requirements for ISO Standard 16028, Series X65 offers:
- Flat-face design: Minimizes spillage during connection and disconnection. Smooth, flat surfaces are easily wiped clean, further reducing spillage and threat of contamination.
- One-hand operation: Makes connection and disconnection fast and easy. Coupling and nipple automatically lock into place during connection.
- Manual security-locking feature: Offers added protection against involuntary disconnection
- Two-part design: Features separate front and back sections, in order to incorporate custom rear sections or threads upon request
- Optional dust caps: Recommended for use on the coupling and nipple, when connected and disconnected, to prevent debris from entering systems.
- Useful size range: Offered in ¼-inch through 1-inch sizes, making them suitable for a wide variety of applications
|
|
Threadless hose fittings that are a patented, innovative alternative to conventional threaded fitting. WEO Plug-In fittings simply “plug in” to hydraulic systems. A click-to-connect feature provides easy engagement of the male and female halves, without the tools required to connect and disconnect threaded fittings. Other benefits include:
- Leak-free connections.
- No follow-up tightening.
- Minimum space needed. A cartridge insert, designed to drop into the port or valve manifold, allows further reduction in space required for hose assemblies.
- Work injuries eliminated.
- Longer hose life: WEO fittings are self-aligning.
- Easy to service.
- Lower overall cost: Elimination of leakage, improved accessibility, and reduced installation time make WEO fittings lower in overall cost than threaded fittings.
|
|
Threadless hydraulic couplings: Quick - Easy - Leak-free - Safe - Compact
Gates Quick-Lok™ quick to connect and disconnect couplings for hydraulic pressure lines up to 280 bar.
Key benefits:
- Reduces the connection time
- Reduces the need for line side tooling
- Eliminates threads and torque requirements
- Provides a leak-free connection
- Ensures correct fitting every time
- Eliminates re-work at the end of the production line
- Reduces/eliminates warranty claims
|
|
|
All CEJN High-Pressure Hydraulic couplings and nipples are designed with a non-drip interface to minimized fluid spillage and air inclusion during connection and disconnection. Dust caps are a standard feature to protect the hydraulic systems from dirt and debris.
|
|
Series HP
Nominal bore :
2.5, 4, 6, 10, 16, 20, 32 and 50 mm
Working pressure:
up to 2000 bar (dependent on nominal bore and material), in part also suitable for vacuum
Media:
mostly hydraulic oils, however can also be used for other fluids and gases
Materials:
steel oil burnished,
stainless steel 1.4404/1.4571 or similar
Special features:
unlocking safety device, many types of connection, ring grips for larger nominal bores, ring valves, vibration lock
|
|
|
We provide a large range of cutting-ring technology, including single-edged cutting rings as well as proven double-edged rings and even modern, soft-sealed cutting rings.
|
|
|
37° flare JIC fittings, made of stainless steel, for high pressure networks up to 350 bars. BSPP and NPT adaptors, unions, elbows, tees.
|
|
Crimped Assemblies
crimped assemblies
Pre-assembly is eliminated, the crimped assembly comes with the hoses properly oriented, ready for installation on the engine. The crimped design lowers leak occurrence and eliminates the need for two hose clamps.
Applications of Flexfab's charge air cooler hose or CAC...
Crimped assemblies can help manufacturers save time and money by converting the hose/pipe/clamp into one assembly.
Flexfab designs and manufactures the pipes with an inverted bead. During the crimping operation, the flow of rubber is directed into the inverted bead. The inverted bead helps prevent leakage during operation of the system.
Flexfab can currently crimp assemblies from 2.00" to 4.00" in diameter. Additional diameters may be available upon request. Contact Flexfab engineering with any questions. Tube and form dimensions are available upon request from Flexfab's engineering department.
|
|
|
DIN 2353, 316L stainless steel single cutting rings unions. Unions, elbows, tees, reducers, crosses.
|
|
GlobalSpiral™ couplings
Specially engineered for high-pressure spiral-wire hose applications
Gates' innovative no-skive couplings for spiral-wire hose construction.
Key benefits:
- Two-piece no-skive coupling eliminating any risk of contamination inside the hose
- Coupling and hose are designed together ensuring excellent coupling retention
- Robust integrated product due to one-piece stem construction
- Numerous thread/flange configurations ensuring wide application coverage
- Solid back nuts improve resistance to overtorque
- One GlobalSpiral™ coupling fits the entire range of all Gates spiral-wire hoses
- Gates Global spiral-wire hose and GlobalSpiral™ coupling assemblies withstand impulse testing to 1,000,000 cycles
|
|
MegaCrimp® couplings
The best fit. By design.
Gates' innovative no-skive couplings for wire-braid hose construction.
Key benefits:
- One-piece no-skive coupling eliminating any risk of contamination inside the hose
- Unique and patented "C" insert ensuring a concentric and full-length crimp
Excellent coupling retention through "bite-the-wire" tooth profile
- One MegaCrimp® coupling fits the entire range of all Gates wire-braid hoses
- One size of MegaCrimp® coupling can accommodate various hose outside diameters
- Gates Global wire-braid hose and MegaCrimp® coupling assemblies withstand impulse testing to 600,000 cycles
- Optimum insertion force
- No need for any tooling to fit the coupling onto the hose
|
|
FF Series Flat Faced Couplings
This Two-Way Coupling is a flat face, dry break (minimum spill), hydraulic device that meets or exceeds the ISO 16028 standard. The flat face coupling is ideal for applications where hydraulic spillage is a concern and interchangeability with other manufacturers is important. The device has a standard sleeve lock feature to prevent accidental disconnection and an easy, push-to-connect design. It operates at a 5075 psi maximum operating pressure and has excellent mechanical performance. Dust caps and dust plugs are available accessories.
|
|
At Gates, innovation is all in a day’s work. Take our new TuffCoat™ hydraulic coupling coating. It not only raised the bar on corrosion resistance; it set the standard. But don’t just take our word for it. Here’s what scientific testing had to say: tested under ISO 9227 and ASTMB117 salt-spray conditions, our revolutionary TuffCoat™ coating provided 400 hours of protection against corrosion. That’s a 400-plus percent improvement over the 96-hour ISO standard!
The TuffCoat™ conversion will affect all Gates manufactured couplings. There’s no need to return your existing inventory, though. Just continue using your original couplings. They’ll provide the same superior performance you’ve come to know and expect from Gates. Gates’ revolutionary TuffCoat™ coating: setting the standard for corrosion resistance.
|
|
|
Goodyear is your one source for a wide selection of high-performance hydraulic hose fittings, covering a wide range of designs, shapes, sizes and pressure ratings. With low, medium and high-pressure fittings available for braided, spiral and thermoplastic hose. Fittings include Ultra-Crimp (1-piece), Uni-Crimp (2-piece), Dual-Grip (2-piece) and Field-Grip (reattachable). Our line of 21 thread ends include SAE, NPTF, JIC, British Standard, DIN and JIS. End styles include straights, swivels, elbows and flanges. Find the fittings and threads you need, from one source. From Goodyear.
|
|
ADVANTAGES
Flat mating faces are easily wiped clean to
prevent the ingress of contaminants.
Streamlined internal flow path minimises the
pressure drop.
Non-spill design avoids fluid loss during
connection and disconnection.
No air intrusion during connection.
Locking sleeve prevents accidental
disconnection.
Bi-directional flow.
Sizes 3/8" and 1/2" comply with HTMA interface
requirements and are recommended by the
BHTMA for use in equipment manufactured by
its members.
Conforms to current ISO 16028 Standard sizes.
PREMIER FEATURES
Robust construction. High working and burst
pressure ratings. Excellent fatigue life.
Female coupling seal swaged-in to prevent
extrusion under pressure.
Dynamic seal geometry in male couplings
allows bi-directional flow.
|
|
|
SafeWay’s S20 Series is a general purpose, double shut-off, fluid transfer quick coupling available with either a rugged ball valve or leak-free, high flow poppet valve. The S20 Series is used primarily on agricultural equipment and is recognized as an economical and reliable quick coupling. This series is original equipment on snow plows, garden tractors, full size tractors, front-end loaders, skid-steer loaders, earth moving, and mining equipment.
|
|
Quick Disconnects
Tompkins Quick Disconnects couplers and tips allow for fast and easy hose replacement.
|
|
QUICK-LOK™: a range of quick-to-connect threadless hydraulic couplings which have a snap-in connection that eliminates torque and the use of assembly tools.
This is what makes Quick-Lok™ threadless couplings from Gates a smart investment:
1) The quickest solution
Quick-Lok™ couplings are connected by hand. Simply push and click into place. No time lost applying the correct amount of torque.
2) The easiest solution
Quick-Lok™ couplings are threadless. With threading eliminated, torque settings are not required and both line side connection tooling and installation difficulties belong to the past.
3) The safest leak-free solution
Quick-Lok™ rules out any kind of variation in the process of connecting hose assemblies to ports: either the connection is made and 100% leak-free, or there is no connection at all.
|
|
H 15000 Agricultural Couplings
This Two-Way Coupling Series is designed for general purpose hydraulic and fluid transfer and conforms to the dimensional requirements of ISO 7241-1 Series A. This slim profile design features a ball lock; manual connect and disconnect; poppet valving; and zinc plated steel construction. The end connections are NPTF and BSPP and a push-to-connect socket design is available for bulkhead mounting.
Features:
- Ball lock
- Manual connect, disconnect
- Poppet valving
- Slim Profile
- Zinc plated steel construction
- NPTF and BSPP end connections
- Available push-to-connect socket designed for bulkhead mounting (1/2" body size only)
Standard Materials:
- Zinc plated steel construction
- Stainless steel springs and balls
- Buna-N (Nitrile) seals
Options:
- Dust caps and dust plugs
|
|
TIF10000 Series
The IF series plug profile is produced according to ISOnorm 16028 and is compatiblewith other makes of the samenorm. These couplings offer an absolutely dry break %u2013no oil loss during uncoupling. Thanks to the valve construction, the coupling has a minimum pressure drop, and thusachieves maximum costeffectiveness.
Advantages
The coupling can be operatedwith one hand and is equip ped with a safety lockingdevice to prevent unintentional uncoupling. With thepatented pressure eliminatorit is possible to establish acoupling under static pressureuntil working pressure.
Applications
Automotive, elevating mechanism, materials-handlingtechnology, building machinery, agricultural machinery, chemical industries, industrialplant.
|
|
|
|
