Misumi is the NO 1 supplier of over 500,000 standard and customised components for Mechanical Factory Automation/Special Purpose Machinery, Press Dies and Plastic Mould. We delivery components europewide in averagely 6 – 8 days GUARANTEED DELIVERY from the day of purchase, stock items available from 2 days delivery.
Misumi components are different in that they can be configured to your need using our unique part coding system. Dimensions, materials and special machined requests can all be selected within the misumi system enabling engineers and designers to achieve a configured parts as standard with no extra machine costs. Standard items are also available via the catalogues.
All components can be designed using the Misumi CAD portal . Compatible with industry wide packages a designer can configure our parts at the touch of a button in up to 0.01mm, and download in seconds saving valuable design time, registration required.
To receive our extensive catalogue and save valuable time and money, visit our website or request yours today by clicking the request banner.
PONAR WADOWICE S.A. – the main manufacturer of hydraulic control components and systems in Poland – it has developed and improved its products for forty years. Experienced staff, modern machinery and the many years’ cooperation with customers such as for example CATERPILLAR, DYNAPAC or BOSCH- REXROTH ensure the high, stable product quality.
Our manifolds are manufactured in accordance with the Quality Management System implemented in 1998 which complies – after the recertification - with ISO 9001:2001. This system ensures the high quality of our products and services which meet the needs and expectations of our Customers.

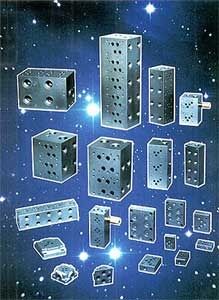

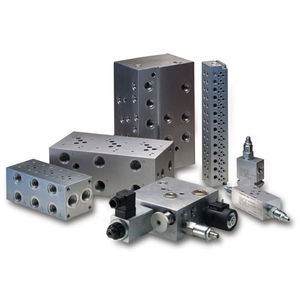

We supply subplates and manifolds with different port options. There is also an optional relief valve cavity. Our products are available to match a variety of cartridge relief valves manufacturers including Sun Hydraulics, HydraForce, Delta, Deltrol, Compact Controls, Modular Controls and others. Subplates can have side, bottom or both ports. Manifolds have an isolation option to allow two independent pressure and/or tank ports. There are also two different valve spacing options for each manifold.
We have a full line of adapter, transition, tapping and cover plates. Adapter plates mount to your existing equipment and allow the newer valve patterns be mounted saving plumbing time and expense. Tapping plates allow instillation of gauges without external plumbing. They are also available the "B" port connected to tank for pressure dump circuits. Our manifolds are manufactured for D02 through D10 NFPA patterns. The number of stations available on our manifolds are from one to sixteen. We normally stock up to 10 station manifolds.
Click here to tell us what you need.
Specifications
Manufactured from either aluminum or continuous cast ductile materials
Up to 16 station manifolds available
Pressure rated to 3000 PSI for aluminum and 5000 PSI for ductile.
When you need finished Integrated Hydraulic Circuits with extremely short lead times, the Parker Speed Shop is the place to go. Parker’s expert application engineers, along with the latest computer-aided design and manufacturing technology, can bring new and advanced custom products to market faster, keeping you way ahead of your competition.
