Safe4 light curtain is a contactless safety device with built-in self-testing. It contains two redundant self-monitored chan nels which fulfill index IV of the Machine Directive EC/98/37 as cat. 4 safety light curtains and IEC / EN 61496.
The light curtain system is very resistant to ambient light interference and can cope easily and very reliably with demanding applications, such as welding robots. The large detection range (up to 30 m for hand-resolution and up to 9 m for finger-resolution) also enables the reliable safeguarding of hazardous zones covering large areas. With Safe4 units available starting at 120 mm lengths, they are optimally designed to safeguard small hazardous areas.In addition, it is also possible to combine multiple protective fields (cascading or L-configuration), and monitor them with a single controller. This provides the machine manufacturer the freedom to optimize the machine design.
|
|
Features
Application-oriented advancement of the fork light barriers
Optical axis approchable in x-, y- and z- direction
All- purpose mounting from 3-Sides
Sensitivity adjustable
Light/ dark swichting
Metal casing
Steel housing galvanized (not all types, see data sheet)
|
|
D-LAS Series - Laser Digital Light Barriers
The laser digital light barriers of D-LAS Series work with visible parallel laser light. The use of round or rectangular apertures ensures a homogeneous light distribution in the laser beam. Smallest objects are detected even in case of a large transmitter/receiver distance. Dynamic correction of the switching threshold compensates the effect of dirt accumulation
(with D-LAS1, D-LAS2, D-LAS34, and D-LAS-34/90).
|
|
Photoelectric sensors series 50
Retro-reflective sensors
Glass fibre optic cables
Diffuse reflective sensors
Diffuse reflective sensors with protection class IP 69 K
Trough beam sensors
High performance through beam sensor
High performance photoelectric sensors
Plastic fibre-optic cables
Light curtains
Colour sensors
Fork light barriers
Angled light barriers
Frame light barriers
Ring light barriers
Laser sensors with background suppression
Laser diffuse reflective sensors
Retro reflective laser sensors
Laser line retro refl ective sensor
Laser through beam sensors
|
|
KR-Q series photoelectric sensor is the one of most popular sensors in the industry to detect transparent plastic bottle.
(KR-Q50 / KR-Q150 / KR-Q300)
IP67 rating, rugged design.
|
|
Features
Metal housing
Metal connector
Ring LED
Ring diameter 10,15 and 20 mm
Static or dynamic working principle
High resolution from 1 mm diameter
Short response time
Sensitivity adjustment
Static/dynamic switchable (ORSD)
Pulse stretching adjustable
Protection class IP 67
Typical fields of application
Control of material flow of metallic and non-metallic small parts (screws, springs, plastic parts, etc.) in transparent feed hoses
|
|
Application:
Optoelectronic safety device are used as entry, danger point or danger zone guards.
SLB range safety light barriers ar utilised as entry guards to dangerous areas. these protection devices operating without physical contact achieve Control Category 2 or 4 to EN 954-1 in combination with SLB 200-C or SLB 400-C safety monitoring modules.

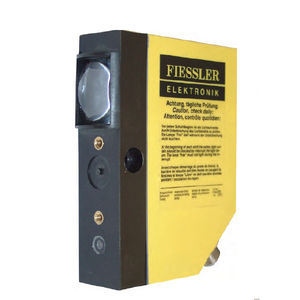

Design and mode of operation:
On the SLB/SLC/SLG ranges of optoelectronic safety devices, the emitter and receiver are fitted in two separate enclosures. An invisible infra-red signal is sent from the emitter and this is picked up by the lens system of the receiver and evaluated either by an integral or external safety monitoring module. If the light beam is interrupted, the secure outputs are switched.
All of the optoelectronic safety devices listed here are maintenance-free and are characterised by simple fitting and adjustment.
|
|
|
|
|
|
Through-beam sensor FE 88-R-NAV-L5
Scanning range 30 m (DC) or 65 m (AD/DC)
Red light 660 nm
Complementary switching outputs (DC)
Time functions (AC)
N.O./N.C. selectable
Voltage: 10 ... 30 V DC
Switching frequency: 1000 Hz
Transmitter and receiver of through-beam sensors are separate. This means that the emitted light has to travel the distance between transmitter and receiver only once. Therefore they are called through-beam sensors.These types can reach very large scanning ranges.
For the use of through-beam sensors, their sensing range is essential. In case of very critical ambience conditions, as strong formations of dust or steam, it is important to pay attention that the sensors cannot be run at their sensing range limits. Attenuation may result, which reduces the sensing range.
The sensing range listed in the data sheet should not be exceeded, in order to guarantee functionality even in bad operating conditions. If corner mirrors are used, the total distance to be monitored should be within the indicated sensing range.
A special feature of the one-way sensors is the FLS/FLE 18 laser sensor. In this version, the sensor is equipped with special focussing optics. This makes it possible to alter the diameter of the light spot. The scanning distance of this sensor is max. 50 m.The light spot can be reduced to a diameter of 0.03 mm. As a result it is possible to reliably detect even the smallest objects at a greater distance.
|
|
Reference AFV 946 S
Sensing distance with glass fibre See technical informations on sheet Glass Fibre Optics
Supply : 10 / 30 VDC
Output : PNP / NPN
Adjustment by self-teach
Time-delay of output signal
Description :
Simple and quick set-up for self-teach (standard and sensitive mode)
Possible adjustment by key / -
Adjustable timer
Alignment indicator
Dirty optics indicator
Keyboard lock
Remote input for selfteach (sensitive mode)
Direct or inverse output
Output : PNP / NPN
Cable or M8 connector
Polycarbonate strong housing
Applications :
Position or presence control of parts on assembling or conditionning machine.
Detection of presence of parts in a plastic mould.
Detection under extreme conditions.
Glass fibre use in hightemperatured surroundings (output of furnace).
|
|
FS/FE 55 R - Through-beam sensors
SensoPart has set a new standard in industrial sensor technology with its F 55 series. This product line combines excellent performance data with a robust housing design and numerous user-friendly details.
• Long operating range: 25 m
• Comfortable use via electronic teach button or cable
• Adjustable transmitter and receiver
• Type of light: red light LED or laser
• Protection: IP 67 or IP 69 K (stainless steel version)
• Switching frequency LED/laser: 500 Hz/2,500 Hz
• Laser class 1
|
|
FR 55 R – Retro-reflective light barriers
SensoPart has set a new standard in industrial sensor technology with its F 55 series. This product line combines excellent performance data with a robust housing design and numerous user-friendly details.
• Long operating range: 12 m
• Comfortable use via electronic teach button or cable
• Type of light: red light LED or laser
• Protection: IP 67 or IP 69 K (stainless steel version)
• Switching frequency LED/laser: 600 Hz/2,000 Hz
• Laser class 1
|
|
Ensuring the accurate recognition of target objects is critical for many control systems. Reliable object recognition means fewer false alarms, increased productivity and less product rejection. When selecting sensors for your applications, the most important criteria to consider are: reliability, durability and ruggedness.
IDEC SA1E photoelectric sensors incorporate all of these features in a compact housing, and are also easy-to-install and competitively priced. All SA1E photoelectric sensors are IP67 rated, UL/c-UL listed and CE marked. A choice of NPN or PNP outputs are available, as well as a choice of Dark ON or Light ON operation modes.
|
|
CL - PL - SL SERIES (Optic barriers: optic barriers)
Description:
Multi-beam optic barriers series to protect lift doors
* Easy, versatile and fast to install
* Exclusive anodized silver coloured aluminium draft, compact dimensions, easy to fit in any installation condition
* Setting up on the car door threshold placing the curtain beyond the door wing sliding
* High isolation against electrical and optical interferences, accurate detection of objects and people, microprocessing electronic device lodged inside the aluminium draft, automatic set-up from 16 up to 72 beams and pertinent crossings, light strength adjusting according to the distance between emitter and receiver
* Power Supply: 10÷30 V dc
* Operating distance: 3 m Max
* ACCESSORIES ON REQUEST: 230V ac or 24V ac/dc feeding device, fixing brackets and accessories.
|
|
Compact Light Barrier
Series Eltrostar M 12
- Diffuse reflective and through beam lightbarrier
- Metal housing
- PNP switching output, light or dark switching
|
|
|
|
|
|
General description:
The CX-400 series of photoelectric sensors is a wide-ranging lineup of 116 different models. Whatever your application entails, SUNX has covered it with this series. Built to IP-67 standards, the CX-400 series is designed for the most demanding environments. There are also models that are specifically design for resistance to oil, coolant, or ethanol. Couple this with high electrical noise resistance and a built in interference prevention function, and you have one of the most robust sensors on the market.
The CX-400 series is compact in size (W11.2mm x H31.0mm x D20.0mm) with a world standard mounting pitch of 25.4mm. Wiring options include a M8 quick disconnect, M12 quick disconnect, or built-in wire type with a length of 0.5mm, 2m, or 5m.
High precision optics as well as high performance circuitry provides extremely stable sensing for determining small height differences, detecting transparent objects, and subtle color differences. Also, the series offers a high luminance beam spot that achieves long distances and can be as small as 2mm in diameter for detection of minute objects.
Four sensing types are available:
- Diffuse Reflective
- Thru-beam
- Retro-Reflective
- Adjustable Range Reflective
|
|
W18- photoelectric switch:
the packaging specialist
- Wide-ranging application
- High detection reliability
- Slender housing
- Easy handling, reliable control
- Precise background suppression
- Simple teach-in process
For packaging technology, the food, semi-luxuries and
catering industries, container logistics, machine tool
construction
|
|
|
|
|
|
Compact Photoelectric Sensor
The CX-400 series of photoelectric sensors is a wide-ranging lineup of 116 different models. Whatever your application entails, SUNX has covered it with this series. Built to IP-67 standards, the CX-400 series is designed for the most demanding environments. There are also models that are specifically design for resistance to oil, coolant, or ethanol. Couple this with high electrical noise resistance and a built in interference prevention function, and you have one of the most robust sensors on the market.
The CX-400 series is compact in size (W11.2mm x H31.0mm x D20.0mm) with a world standard mounting pitch of 25.4mm. Wiring options include a M8 quick disconnect, M12 quick disconnect, or built-in wire type with a length of 0.5mm, 2m, or 5m.
High precision optics as well as high performance circuitry provides extremely stable sensing for determining small height differences, detecting transparent objects, and subtle color differences. Also, the series offers a high luminance beam spot that achieves long distances and can be as small as 2mm in diameter for detection of minute objects.
|
|

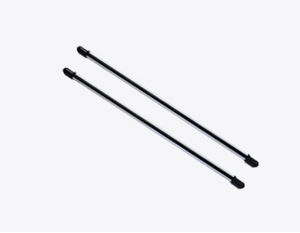

The multi-application ClearBeam offers a reliable protection up to 6 m (19.7').
The powerful and complete one-way light beam system convinces by a high consistency in operation even under IP65 conditions. A multitude of proven technologies provides the highest level of quality and functional safety.
The small space-saving sensor can be easily integrated into the door frame and is simple to install. It is ideal for being built directly into the profile.
The electronics are fully integrated into the light barrier. Thus no external supporting electronics
are needed.
|
|
Monoray Lightguards
OPT2 SMC P01
Monoray
Range HP ÷ 70meters
Output 2 Switches- ON/OFF
Housing 22 x 36mm
ODS2 P01
Monoray
Range HP ÷ 70meters
Output 2PNP open collector
Housing 36 x 36mm
|
|
|
The Optex OS-12C active infrared safety beam system is compatible with any type of automaic door. Its amplifier and sensor head are designed for fast, simple installation while maintaining the highest standards of safety and reliability
|
|
|
SICK's single-beam photoelectric safety switches consist either of testable senders and receivers, or of testable senders and receivers combined with an evaluation unit. These devices impress both with their large scanning range and the variety of shapes and sizes available. They also offer maximum safety performance as they comply with type 2 or type 4 in accordance with EN 61496 and PL c or PL e according to EN ISO 13849. The possible applications are very wide-ranging: Whether on robots, processing machines, machining centres, palletising systems, high-bay warehouses or transfer lines - with products from SICK you will profit from a customer-friendly solution of the highest quality.
|
|
|
These safety light curtains are distinguished by their compact design. They are also equipped with numerous auxiliary functions, allowing for adaptation to the respective application in a highly individualized fashion.
|
|
Highlights
Metal housing
Protection frame around the optics
Cross bar removable
Air nozzle for optics
Active zone up to 390 x 300 mm
Special sizes on request
Dynamic or static working principle
Pulse stretching adjustable
Resolution from Æ1 mm
Short response time
Protection class IP 67
Typical fields of application
Pulse generator everywhere, where small parts have to be detected in free fall
Ejection control on punching or pressing machines for safety reasons
Counting
Detection of metallic or non-metallic parts, e.g. tablets in pharma industries etc.
|
|
Process/Mini is a light curtain system designed to control and monitor industrial automation processes.
The use of the very latest technology, the dense monitoring area and the extremely robust construction ensures excellent reliability and longevity. The thin profile (12 x 16 mm) and the integrated controller means Process/Mini requires minimal space and can be easily integrated into machines and systems.
Process/Mini is based on ASIC technology which is already employed in millions of optical sensors used to safeguard elevator doors. Process/Mini is available in five standard lengths, providing the system integrator with a wide range of setup options.
|
|
|
|
|
|
In the same profile you can either choose between Type 2 or 4 Light curtains and Light grids. Focus is very easy to configure, install. It has from 14 mm resolution for both Type 2 and 4. Inputs for muting: partly beam/s and completely. Floating Blanking is optional. Focus has manual supervised reset or automatic reset. The Focus profiles have slots on three sides and very good resistance against external lights.
The Spot light beam is available in two versions, Spot 10 for distances up to 10 m and Spot 35 for up to 35 m. The light beams can be mounted at different heights using available brackets and mirrors. Spot and Vital in combination fulfils the requirements for Category 4 according to EN 954-1 and EN 61496
Light beams and light curtains are a production friendly safety component that does not physically impact on the actions of the machine operator. An operator can have both his hands free when he puts in his hand or he passes in and out of a risk area. At the same time the operator knows that he can trust the safety component to stop all dangerous movements. Light barrier protection is also a good safety component for use when goods are to be passed in and out of a risk area.
|
|
Maesuring light curtains
Light curtains
|
|
|
The Object100 measuring light curtains from CEDES are the essential components in machines and equipment for an efficient and defined production flow. The Object100 light curtain consists of an emitter and receiver, which stand out due to their extremely high sampling rate of 40 ms per beam. Therefore it is possible to detect small objects which move very rapidly through the detection area.
|
|
|
|
|
|
Safe200 light curtains monitor the danger zones of machines and equipment, protecting people and material from injuries and damage. With their extremely compact construction,
Safe200’s emitter and receiver edges can be easily installed in machinery, particularly where space is extremely limited. Safe400 is also perfect for upgrading the safeguarding of existing
machinery.
When combined with CEDES’ safety controllers, Safe200 can be used for a wide range of applications. In addition to effective safeguarding, it can also measure the height of objects. The
rapid detection time guarantees fast and reliable operation of machines and systems.
With a module length of 50 mm, the Safe200 protective field form and height can be adapted for every application up to amaximum length of 1,800 mm. Also complex safeguarding requirements, such as perimeter protection or cascading multiple protective fields, can be optimally solved with the Safe200. Choice of slim and reinforced profiles Cascading variations Perimeter systems SafeC – the safety controllers for Safe200.
|
|
Safe4 light curtain is a contactless safety device with built-in self-testing. It contains two redundant self-monitored chan nels which fulfill index IV of the Machine Directive EC/98/37 as cat. 4 safety light curtains and IEC / EN 61496.
The light curtain system is very resistant to ambient light interference and can cope easily and very reliably with demanding applications, such as welding robots. The large detection range (up to 30 m for hand-resolution and up to 9 m for finger-resolution) also enables the reliable safeguarding of hazardous zones covering large areas. With Safe4 units available starting at 120 mm lengths, they are optimally designed to safeguard small hazardous areas.In addition, it is also possible to combine multiple protective fields (cascading or L-configuration), and monitor them with a single controller. This provides the machine manufacturer the freedom to optimize the machine design.
|
|
|
|
|
|
Application:
Optoelectronic safety device are used as entry, danger point or danger zone guards.
SLG/SLC range safety light grids and light curtains can be integrated into the safety concept of the machine or plant even under tight space conditions by virtue of their very compact design.
These safety devices are also often used on presses to guard danger points or zones. Depending on the paticular resolution of the safety light grids and curtains, protection of persons, hands or even fingers can be provided. SLG/SLC range safety light grids and light curtains achieve Control Category 4 to EN 954-1.
Design and mode of operation:
On the SLB/SLC/SLG ranges of optoelectronic safety devices, the emitter and receiver are fitted in two separate enclosures. An invisible infra-red signal is sent from the emitter and this is picked up by the lens system of the receiver and evaluated either by an integral or external safety monitoring module. If the light beam is interrupted, the secure outputs are switched.
All of the optoelectronic safety devices listed here are maintenance-free and are characterised by simple fitting and adjustment.
|
|
|
|
