KM10 10" abrasive mitre saw
Angles for 0 to 45 degrees - left or right.
Positive index holes - up and down stops.
Two cam-lock vises - lever-lock for table.
Spindle speed 3450 rpm, 5/8" arbor
Capacities: 1 1/2" solids, 2 1/2" shapes @ 45 degrees.
Dimensions: L 25" x W 24" x H 17"
1 PH or 3 PH (Specify)
220 lbs.
Options:
WS10 workstop
12M steel stand
Model:
KM10-1 1 phase/220 volt
KM10-3 3 phase 220/440 volt
Other products available :
|
|
HSM14 14" semi-auto Aluminum saw
14" high speed mitre saw for cutting ALUMINUM and other non-ferrous material with steel blade.
5HP, 3ph, 3450rpm motor.
4400 spindle speed. 1" spindle arbor
Power down feed. Air over oil 0-12 FPM. Semi-automatic
Double v-belt drive. Cast iron contruction!
Double air vises, OSHA safety blade guard.
Mitres left and right to 45deg.
Vise opens to 6"
Capacities: 4-1/2" pipe and square.
Dimensions: 30"L x 48"W x 60"H MADE IN USA !!
750 lbs.
Model: HSM-14 5 hp, 3 ph, 220/440 volt ( specify voltage)
Other products available:
|
|
Structure
- Heavy-duty hydraulic cylinder with precision ground hinge
support
- Cast iron quick set up vise
- Pan shaped base with built-in coolant & hydraulic system
Blade Drive
- 2 hp motor, heavy-duty reducer, & variable step drive assembly
- 4-speed transmission with the best worm gear and shaft
Blade Guidance & Lubrication System
- Carbide blade guides with roller bearings
- Two addtional bearings to support blade from the top
- Integral coolant system
- Blade brush
Control & Automation
- Down feed rate & cutting pressure control via hydraulic
down feed valve
- Simplified control switches mounted on saw head
Material Feeding & Clamping
- Cast iron vises
- Secure clamping via dependable manual lead screw system
- Anti-slip hand wheel
Safety
- Conduits protection measure
- Orange alert safety design
Standard Accessories
- Easy blade change with front access at waist level
- Bi-metal saw blade
- Tool box, leveling pads, and an additional wire brush
- Operation & parts manual
|
|
As the leading manufacturer of machines for processing aluminium and PVC profiles, we supply matured solutions for different applications.
You have profile - we cut it !
Further saws, like Table saws, Mitre saws, Double mitre saws, Notching saws, Vee-notch and cut off saws, Automatic saws and Automatic saws with pusher cover our product range.
|
|
For Cutting Steel, Stainless Steel and Nonferrous Tubes and Profiles
With HSS Sawblades 225 x 32 mm (9")
Head Miters Through 0°- 45°- 60° Degrees
Strong Vise, Opens 102 mm (4")
Low Consumption Oil Lubrication
Cast Aluminum Guards
Worm & Wheel Drive
1-ph. or 3-ph. Drive
Cast Iron Base
|
|

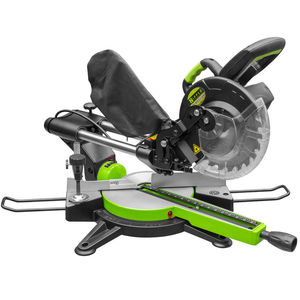

KGS 303 Plus
For all cutting tasks, ideal for interiors
For cutting wood, coated panels and plastics
Simple cutting of all angular, bevel and rafter cuts
Powerful, maintenance-free universal motor
Turntable with precise angle adjustment
Die-cast aluminium work bench
Suitable for right-handed and left-handed operators
Cutting width increased to 300 mm
Saw head can be tilted by up to 48° on both sides
Multi-supported draw gear
High guide profiles that can be moved at the side, for the improved fixing of the workpiece
Standard-equipped with a flange laser
Integrated cutting depth control
Transport lock
Extensive range of accessories
|
|
| ... products without technical information |
| |

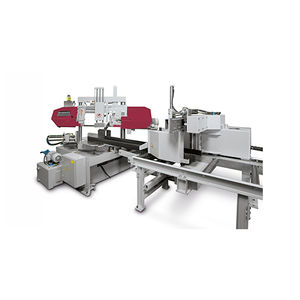

Cutting unit composed of:
Sturdy, wide base with blade lubricant tank and swarf collecting drawer (not present if there is a swarf extractor)
Highly rigid bow guided by two sturdy, ground round columns for a precise, repetitive downstroke
Automatically adjusted blade guide arm
Bow-guiding columns with antiscuff bushings
Safety device which immediately stops the machine if blade breaks
Blade tilted respect the horizontal axis to easy sections' cutting
Blade lubrication through cooling emulsion driven by motor pump
Hard metal blade guide plates and pre-alignment bearings
Blade cleaning by motorised metal brush
Bow downstroke speed regulator and manual cutting pressure
Hydraulic blade tightener
CNC control unit with LCD display
Stepless speed change by motovariator and epicycloidal reduction gear
Material feeding carriage composed of:
Opening of both bar feeding clamping jaws while carriage is moving to prevent these from sliding if the rods aren't straight
Large-sized base with 500 mm length stroke feeding carriage, hydraulically driven
Piece's length to be cut readout by linear encoder
Hydraulically-locking bar feeding clamp supported by ground guides and antis cuff bushings
Photo-electric sensor for bar's end feeling
Automation:
Automatic bar feeding with axis CNC controlled with Brusles motor with ballscrews
Worked piece counter
Automatic positioning for cutting angles from 45° to the right to 45° to the left CNC controlled
Possibility to programme cutting cycles with pieces having different lengths and different cutting angles
Multiple cutting programmes with free programming of pieces' number and length
Final swarf of the feeder 770 mm
|
|

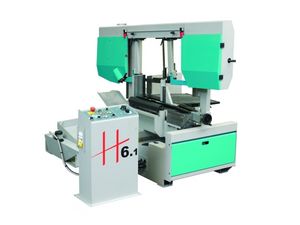

electro-hydraulic and/or electro-pneumatic band saws designed to cut solids and sections up to 330 mm from 45° right to 60° left
|
|
|

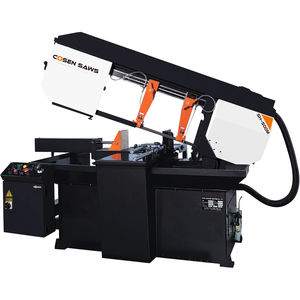

From width of 400 mm (16¡¨) to over 1500 mm (59¡¨), all Cosen's swivel machines allow precise and accurate miter cutting. For cutting structural steel such as I beam, H beam, pipe, channel, angle steel and etc, miter cutting is required at double sides or single side swivel, miter or straight cutting in manual, semi-automatic or fully automatic function. Miter cutting up to 60¢X either direction is available.
|
|
|
From width of 400 mm (16¡¨) to over 1500 mm (59¡¨), all Cosen's swivel machines allow precise and accurate miter cutting. For cutting structural steel such as I beam, H beam, pipe, channel, angle steel and etc, miter cutting is required at double sides or single side swivel, miter or straight cutting in manual, semi-automatic or fully automatic function. Miter cutting up to 60¢X either direction is available.
|
|
| ... products without technical information |
| |
As the leading manufacturer of machines for processing aluminium and PVC profiles, we supply matured solutions for different applications.
You have profile - we cut it !
Further saws, like Table saws, Mitre saws, Double mitre saws, Notching saws, Vee-notch and cut off saws, Automatic saws and Automatic saws with pusher cover our product range.
|
|
Slow Speed Cold Saw for Production and Metal Construction
Heavy construction worm & wheel gears for full time operation. Large, plain table, double yoke pivot system.
Precision mitering cuts through 45°-0°-45°. Cabinet base, coolant system.
3-phase motor. A slow speed motor for stainless steel and UNIST spray mist system are available.
|
|
TWIN ELECTRA SUN
Twin-head cutting-off machine with 3 controlled axes, automatic traverse of the moving cutting head and electronic control of every angular setting from 45° (internal) to 22°30’ (external) with accuracy of 240 places on each degree.
|
|
Exceptional double mitre saw.
Special fabricated and welded steel bed frame with finish machined,
complete with slideways for the mobile head.
Pneumatic head tilting from 22°30’ to 90°. (TK145/10 TK 145/12).
Double head tilting from 22°30’ / 90° / -45° operated by direct current motors controlled by NC. (TK 145/15 CNC).
Mobile head operated by direct current motors and controlled by NC.
Travelling speed: 24m/1’
Conveyor belt for chips removal
Device for rh load.
Feeler pin.
Standard and optional programs.
|
|
TK 145/20 CNC gold Exceptional double mitre saw.
Full protection with complete cover and front automatic lowering closure.
Special fabricated and welded steel bed frame with finish machined,
complete with slideways for the mobile head.
Double head tilting from 22°30’ / 90° / -45° operated by direct current
motors controlled by NC.
Noise deadening guaranteed by the complete enclosure and also
by acoustic insulation panels
Mobile head operated by direct current motors and controlled by NC.
Travelling speed: 24m/1’
Conveyor belt for chips removal
STANDARD PROGRAMS
- Single cuts
- Sequence of cuts
- Profile codes and profile heights stored in memory for automatically calculating cuts at 45°
- Loading of cutting lists originated from ABACUS/TEKNA program
- Wings cut
- Blade motor timeout: blade motor automatically turns off after an inactivity period of the machine
- Sequence of cuttings on bar: bar manual progress, variable cutting length, possibility to vary the cutting angle on any degree.
- Automatic motor start in manual cuts
- Possibility to work with inches
OPTIONAL PROGRAMS
- Extra-short cut - Extra-long cut
- Automatic in-sequence cuts
- Trimming
|
|
|
|
