HORIZONTAL MULTISAGE CENTRIFUGAL ELECTRIC PUMPS OP
Supply of clean water and non-aggressive chemicals liquids. OP pumps are suitable for domestic use, for water automatic distribution by using small-middle pressuretanks for gardening, irrigation, water supply from wells. Furthermore, thanks to the high head, OP pumps can be used as pump pilot for pressurization units.
DATAS
Models subdivided in two series, with power from 0,37 kw up to 13,5 kw.
Q max: 40 m3/h (50 HZ)/ 48 m3/h (60 HZ)
H max: 126 m (50 HZ)/ 120 m (60 HZ)
Temperature of pumped liquid: min 0°C max 90°C
Ambient temperature: max 40°C
|
|
|
The centrifugal multistage horizontal pumps of series TM are used in irrigation systems, systems of high pressure lifting, refrigeration, heating, snowing, cleaning, in boiler systems, in condensed extraction and in fire-fighting systems.
|
|

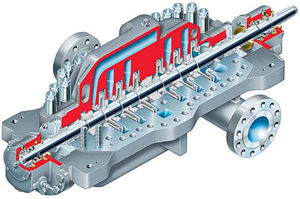

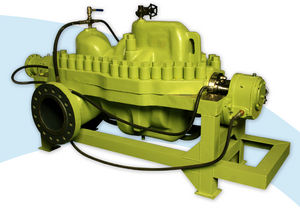

Horizontal Split Case Multistage Pump
Characteristics
- Two and four stage horizontal centrifugal pumps, double volute.
- Horizontally split casing, lateral suction and discharge.
- Enclosed impeller.
- Counter clockwise rotation viewed from coupling end.
Design Features
- Oil lubrication.
- Flanged connections.
- Stuffing box allows for packing or mechanical seal.
Applications
- High Pressure Applications (Boiler Feed, Petrochemical, Chemical, Industrial).
- Power Plants.
|
|
The SolidC centrifugal pump is equipped with, a simply working lying outside and/or a rinsed axial face seal. Both possess being certain slip rings from acid-proof steel (AISI 329) with sliding surfaces from silicon carbide and running along slip rings from coal. During the rinsed axial face seal the sealing takes place to the atmosphere via a long-lived lip seal.
Wartungsfreundlichkeit had highest priority with the development of the SolidC - maintenance can take place fast and problem-free. So from the front used wave sealing without removing the rear wall can be exchanged in few minutes. The construction of the SolidC is appropriate special for the hygiene protection and sets for pumps of application of standards new hygiene standards.
|
|
Designed for re-circulating service in reverse osmosis and other membrane systems, the 200MS Series multistage pumps offer lower start-up and run costs due to the high efficiency, two impeller design. These pumps produce a smooth, constant flow rate that reduces RO membrane fouling. They include many of the features of the 200 Series pumps, including strong investment cast impellers, low NPSH requirements and tighter running clearances.
- Rated up to 1250 psi maximum pump casing pressure
when pumps are placed in series
- Maximum differential pressure 250 psi (based on water)
- Sanitary 3A construction for food and dairy processing;
wet ends 316L stainless steel
- Low NPSHR investment cast impeller features 5 bladed,
open design for easy CIP and gentle product handling
- Heavy duty cast iron bearing frame keeps shaft rigid and
concentric for long seal and bearing life
-Balanced, water flush, double shaft seal standard
|
|
|
|
|
|
Goulds Model 3311 is a radial split, segmented ring multistage pump... a proven state-of-the-art design for the most demanding high pressure services. The modular design and parts interchangeability reduce maintenance and inventory costs. Compact size and flexible nozzle positions reduce space and piping costs. High reliability, optimum efficiency, and simplified maintenance combined with low initial cost and low operating costs make the 3311 a true world class pump.
Specifications:
Capacities to 1100 GPM (250 m3/hr)
Heads to 5250 feet (1600 m)
Temperatures to 356° F (180°C)
Pressures to 2320 psig (160 bar)
Design Features:
High Efficiency Performance is achieved by utilizing multiple hydraulics for each pump size. Reduce running costs by operating in the best efficiency range.
Modular Design permits option flexibility, reduces lead-times, and maximizes interchangeability. Spare parts inventory is reduced.
Ease of Maintenance is assured as roller bearings, mechanical seal, and balance device can be serviced without disturbing piping or driver.
Balance Drum/Disc Combination balances axial thrust over the full range of performance.
Rotating Element is dynamically balanced after individual balancing of the impellers. First critical speed is always above maximum operating speed.
Multiple Nozzle Orientations to fit your piping configurations.
|
|
|
The range of multistage pumps includes a series of horizontal pump, MCH, and a range of vertical pump, MCV. The horizontal types can also be supplied in a self-priming version, MCHZ.
|
|
TMA
Multistage centrifugal pumps. Capacity to 45 m3/h, max pressure 40 bar.
|
|
|
|
|
|
The MSL, MSM and MSV range the axial thrust is balanced by a newly designed and patented drum system that does not need tight, wear-sensitive running clearances to efficiently control re-circulation flow in the balance line.
The MSM range is designed for high pressure applications and the axial thrust is balanced by the combination of the drum and disc.
PERFORMANCE
• Capacity - max. 250 m3/h
• Head - max. 630 m
• Speed - max. 3600 rpm
• Temperature -10°C to 180°C (Optional 200°C )
• Pressure rating - max. 63 bar
The SIHI Multi range have optional design features available including: various nozzle positions, choice of shaft sealings, a stage reduction capability, a balance disc lift- off capability and inboard and outbord anti-friction bearings.
MORE ... FOR LESS ...
• Reduced life-cycle costs
- enhanced efficiency & innovative axial thrust balancing
- only one shaft seal
- lower power consumption
- high reliability
• Ease of maintenance
- simple dismantling and assembly
- meets technical requirements of ISO 5199 / EN 25199
• Minimised wear
- reduced usage of spare parts costs
• Global service network
- established local Service Centres around the world
|
|

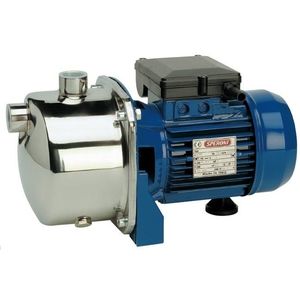

APPLICATIONS
* FOR DOMESTIC SYSTEMS AND SMALL IRRIGATION SYSTEM
PRESSURISATION.
* HANDLING OF NON AGGRESSIVE CIVIL AND INDUSTRIAL LIQUIDS.
* FOR WASHING SYSTEMS AND FOR INSERTION INTO COMPLEX
INDUSTRIAL MACHINERY AND LINES.
DESIGN ENGINEERING
* SEALED MOTOR WITH EXTERNAL VENTILATION AND FINNED ALUMINIUM
ALLOY CASING
* IP 44 PROTECTION CLASS
* CLASS “F” INSULATION
* MAX PUMP LIQUID TEMPERATURE: 50°
|
|
|
Centrifugal multi-impeller water pumps able to develop high pressure and a high water lift with a comparatively low power consumption. Thanks to their silent running and very good features, they are suitable in domestic fittings by tank pressure groups, for small sprinkler irrigations and car washing.
|
|
|
|
|
|
SB, SBI and SBN vertical multistage centrifugal pumps are powered by standard electric motor.
The motor output shaft directly connects with the pump shaft through a coupling. The pump unit consists of optimized hydraulics, various types of connections, an outer sleeve, a pump head, pump base, four stay-bolts and various other parts. The pump base has suction and discharge ports on the same level (in-line). This in-line design provides a more compact design and easier installation. All pumps are equipped with a mechanical shaft seal of the detachable cartridge type. SB, SBI and SBN pumps are available with various stages and capacities to provide customers a choice of models for many applications.
Operating Limits
50Hz
- Capacity : max. 120m3/h
- Head: max. 325m
- Liquid temperature : -15ﾟC to+120ﾟC
60Hz
- Capacity max.145 m3/h
- Head : max. 270m
- Liquid temperature : -15ﾟC to+120ﾟC
Applications
- Industrial washing equipment
- Heat recovery
- Pressure boosting
- Filtration equipment
- General industry
- Auxiliary equipment
- Irrigation
- Water treatment
- H.V.A.C
- Cooling and chiller
- Aggressive liquids
- Fire-fighting equipment
- Reverse osmosis
- Swimming pools
|
|
CR/CRN Multistage In-line Pumps
Applications: Water boosting, transfer, circulation, boiler feed and treated water duties (CRN only)
Duty range: Flows to 120m³h
Heads to 460 metres
Temperature range: -20°C to +120°C
Pressure rating: Up to 48 Bar
Pump connections: CR:1"/1¼"/1½" BSPF oval flanges
25mm to 100mm round flanges
CRN: Grooved pipe jointing system for CRN2 to CRN16.
65mm and 100mm flanges for larger models
|
|
Features and Benefits
Self-Priming Design
Fully Serviceable
FDA Compliant Impeller
Corrosion Resistant
Powered for Continuous Operation
Applications
Lawn Sprinkling
Irrigation
Air Conditioning Systems
Heat Pumps
Water Transfer and De-Watering
|
|
|
|
|
|
General
Dickow-pumps of series HZMR are sealless multistage horizontal centrifugal pumps, driven by a synchronous permanent magnetic coupling.
The containment shell is sealed by a confined gasket and separates the pumped liquid from the atmosphere. There are no leakage endangered dynamical shaft sealings available.
Due to the fact that 90% of pump failures are caused by leaking shaft seals, the sealless design increases the availability and reduces maintenance costs.
Field of application
HZMR-pumps are used in services where no seal leakage can be tolerated, when handling toxic, explosive and pollutive liquids and when the required differential heads are above the application range of single stage volute casing pumps.
The HZMR-pumps operate almost maintenance free, the service life is far longer than that of pumps with conventional mechanical seals.
The performance range covers capacities up to 200m3/h (880 USgpm) and differential heads up to 350mLC (1148 ft). The maximum operating temperature is approx. 200°C (392°F), allowable operating pressure is 40 bar.
|
|
Application
D.B series are multistage centrifugal pumps are used for the purpose of general water supply. Also for the circulation of warm, hot or cold water, delivery of condensate, boiler feed and for fire fighting equipment.
These pumps are multistage centrifugal pumps in horizontal design with radially split casing of ring-section construction. The assembly consists of suction and discharge casing and a number of intermediate stage casing, which are tied together with tie bolts.
|
|
|
This series pumps is the festival section type multi-stage centrifugal pump, has used the national recommendation use highly effective energy conservation water power model, has the highly effective energy conservation, the performance scope broad, the movement safe is steady, low merit and so on noise, long life, installment service convenience; The material quality pumps which through the change (or pumps has flowed partial material qualities), the seal form and the increase cooling system, may transport the hot water, the oil class, corrosiveness and contains the grinding compound the medium and so on.
|
|
Operating Limits:
-Liquid temperature:
-Normal temperature type:-15°C?+70°C
-Hot water type: +70 °C?+100°C
-Max. ambient temperature:+40°C
-Max. operation pressure:10 bar
-Max. inlet pressure is limited by max. operation pressure
-Continuous duty
Motor:
-Two-Pole induction motor(n=2900r.p.m.)
-Insulation Class B/F
-Protection IP55
Material:
-Pump body: Stainless Steel
-Impeller: Stainless Steel
-Motor Shaft: Stainless Steel
-Mechanical seal:NBR/Ceramic/Carbon
Application:
·Mainly used in industrial field:
·Air-conditioning system
·Cooling system
·Industrial cleaning
·Water treatment(Water purification)
·Aquiculture
·Fertilizing/metering system
·Environmental application
·Other special applications
|
|
Operating Limits:
-Max.suction head:8m
-Max.liquid temperature:35°C
-Max.environment temperature:40°C
-Continuous duty
Motor:
-Two-Pole induction motor(n=2900r.p.m.)
-Insulation Class B/F
-Protection IP44
Material:
-Pump body: Cast Iron
-Impeller: Noryl
-Motor Shaft: Hi-Cr plated 45# Steel/2Cr13# Stainless Steel/S.S#304 Welding shaft
-Mechanical seal: Ceramic/Graphite
Application:
Centrifugal selfpriming multistage water pumps able to develop high pressure and a high water lift with a comparatively low power consumption.
The silent running and very good features, they are suitable in domestic fittings by tank pressure groups, for small sprinkler irrigations and car washing.
|
|
High-pressure multi-stage centrifugal pumps and membrane element housings from GE Water & Process Technologies are more than durable components. They are precision-engineered elements that play a critical role in customers' treatment systems.
Our ruggedly built multi-stage pumps meet your requirements for general water applications, high-temperature performance, chemical compatibility, or quiet operation. Because our pumps set industry standards for reliability and low overall lifecycle costs, you can let them work without having to worry. GE's world-class pumps come with stainless steel shells on every pump and options for NorylTM impellers or stainless steel impellers.
|
|
APPLICATIONS
Compact multistage vertical electric pumps, suitable for lifting installations with or without autoclaves, fire-fighting installations, irrigation systems and wherever elevated pressures are required.CHARACTERISTICS
G20 cast iron spider.
G20 cast iron base.
X5CrNi1810 stainless steel pump pipe.
Thermoplastic polycarbonate diffusers.
Thermoplastic polycarbonate impellers.
AISI 431 stainless steel shaft.
Mechanical seal: sliding faces in hard metal, seals in ethylene propylene rubber.
EPDM rubber bushings.
Stainless steel sleeves with ceramic lining.SPECIFICATIONS
Maximum temperature of liquid 50°C.
Max. operating pressure 16 bar.
In-line connectors available on request, can be coupled to counter flanges.
Fitted with standardised vertical motor sized according to UNEL 13118; V8 arrangement; protected to IP55, class F insulation.
|
|
Multi-stage vertical electric pumps of minimum overall dimensions, suitable for lifting plants with or without tank, irrigation systems and everywhere you need to reach higher pressure.
PERFORMANCES DATAS
93 models divided in 5 series with powers from 0,75 up to 30 kw.
Performances at 2900 rpm:
Q max: 40m3/h
H max: 315m
Temperature of the pumped liquid: min 0°C max +90°C.
TOLERANCES
Pump UNI EN ISO 9906 Appendix a
Motor: IEC 60034-1
|
|
|
Vertical multistage centrifugal pumps for delivery of clean or slightly polluted liquids. Cantilever construction. Designed for tank installation. Immersion depth up to 800mm. Main fields of application: environmental protection technology, surface technic, filtration technic, coolant supply and as booster pumps. Synthetic versions for aggressive chemicals.
|
|
|
|
|
|
MULTI V/NEXIS V
Overpressure
BEACHES Of USE
Flows until: 140 m3/h
Heights mano. until: 240 m
APPLICATIONS
- In the processes of the trades of water and them
derived applications:
- skid of membrane filtration
- unit of disinfection by U.V.
- adduction, overpressure, transfer...
- washing high pressure
- protection fire
- swimming pool
- In agriculture:
- watering, irrigation
Pumped fluids
- Standard Range: nonaggressive clear liquids (drinking water, glycolée water...)
- Range 316L: aggressive liquids (sea water, demineralized water, chlorinated water...)
ADVANTAGES
- Hydraulic Whole out of stainless steel
- Optimized Reliability: outputs raised thanks to the profile of the wheels, limiting the number of stages, the size of the trees and thrusts
- Easy Installation: openings In line
- Process of disassembling/particularly easy reassembly
- Range 304: nonaggressive clear liquids (clear liquids and neutrals)
- Range 316L: aggressive liquids (sea water, demineralized water, chlorinated water...)
- Mechanical seal cartridge out of standard following model
|
|
|
|
|
|
Environmental Engineering:
Armstrong Series 4700, designed for temperatures ranging from 5°F to 250°F (-15°C to 120°C), are well suited for boiler feed applications, condensate recovery and air conditioning systems. Easy to incorporate into industrial environmental engineering equipment, our Vertical MultiStage pumps combine the advantages of compact design, quiet operation and ease of maintenance.
Water Distribution:
From basic water supply to the most specific pressure boosting and fire line pressure maintenance applications, Armstrong Series 4700 Vertical MultiStage pumps satisfy all water distribution requirements. The wide pressure range - from 50 psig to 350 psig (5 bar to 25 bar) - makes this product well suited for applications such as pressure washing of aircraft, trains, boats and road vehicles as well as spray washing of industrial parts and electronic components.
Industry:
Water feed to machine tools, grease removal, cooling of lathes and molds ... water has many uses in the industrial market. The stainless steel design and wide temperature parameters of the Series 4700 Vertical MultiStage pump makes it an ideal unit for light industrial applications.
Water Treatment:
Water is becoming a precious commodity. Water transportation, demineralization, filtration, deionization and reverse osmosis all call for high pressure supply and hygienic considerations. The Armstrong Series 4700 Vertical MultiStage pump, made entirely with stainless steel wetted components, is well suited for these applications.
|
|
|
|
|
|
Application
These pumps are suitable for various purposes such as water supply system in industrial plants agriculture and sprinkler irrigation systems, Air conditioning plants, pumping fuel, edible oils and condensates.
Design
General
KSM low pressure, self regulating pumps consists mainly of four elements.Volute casing with stuffing box.
Impeller.
Suction Cover.
Bearing Pedestal.
Volute Casing
Casing consist of axial suction and radial discharge branch, which passes through the center line in vertical which ensures the balance of the liquid being pumped.
Stuffing Box
It is integrally cast with the volute casing and is readily accessible for the insertion of gland packing the pump can also be provided with mechanical seal.
Impeller
The impeller is of radial type with double curvaflire vanes, over hung type. The impeller is statically and dynamically balanced. with balancing holes.
Bearing Pedestal
There are basically two types of bearing pedestals which cover the ranges of pumps.Type I & Type 2. In all pedestal designs two robust deep groove ball bearing are provided for the shaft to take up radial and axial loads.
In case of heavy duties type 2 pedestal is used which has thicker shaft and larger outer diameters bearing.
|
|
Operating Limits:
-For clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
-Liquid temperature:
Normal temperature type:-15¡ÆC¡75¡ÆC
Hot water type:70¡ÆC¡120¡ÆC
-Max. ambient temperature:40¡ÆC
Motor:
-Two-Pole induction motor(n=2900r.p.m.)
-Insulation Class F
-Protection IP55
|
|
