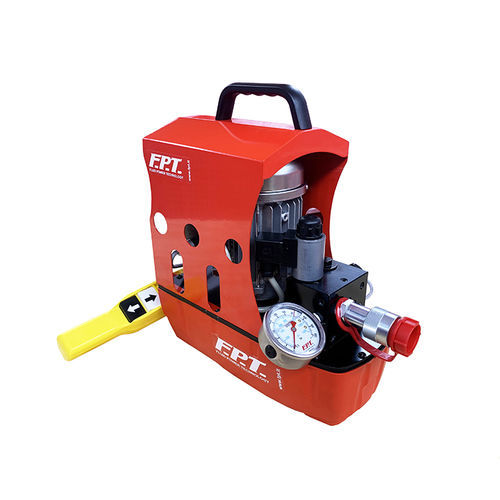

Mini hydraulic pump FPT-MPU

radial pistonelectrically-poweredfor industrial applications

• Portable minipump, extremely light and compact, suitable for all applications where easy handling is a priority. • Only 12 kg weight to operate in any environment. • Maximum working pressure 700 bar. • Single-phase electric motor 230V-50Hz, power 0.55 kW. • PRadial piston pump, double stage, suitable for heavy-duty applications. • Available for simple and double acting applications • Electrically operated valves. • Remote control as standard on all models. • 2.1 liters resin tank. • Metal cage with ergonomic handle. • Available with pressure gauge and handwheel pressure regulator. • GR-6F female quick coupling as standard on the outlets. Portable hydraulic mini pumps, only 12 kg. Suitable for driving small and medium sized cylinders or hydraulic equipment such as nut splitters. 12 Kg to be super light and compact. The ideal electrical pump for all applications that require low weight and transportability. Equipped with solenoid valve and remote control with 3 meter cable, for complete control of the hydraulic pump, with the possibility of managing the advancement, holding and return of the hydraulic cylinder. The operator is totally free to operate his own hydraulic cylinders having full control of the pump. The hydraulic mini pumps has a maximum pressure of 700 bar and can be used with single acting cylinders and double acting cylinders. It is also equipped with a sturdy metal protective casing and an ergonomic handle to easily move and transport it anywhere. The pressure gauge and the pressure regulator valve can be added to the basic version based on the operator’s work needs. The GR-6F female quick coupling is instead fitted as standard.
