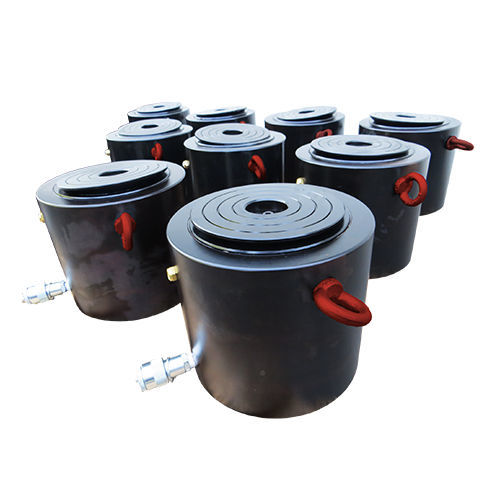

Hydraulic cylinder CSE series

single-acting load-returnfor lifting applicationsfor lifting

• Single-acting high tonnage hydraulic cylinders with load return. Push force from 50 to 1000 tons with range of strokes from 50 mm to 300 mm. • Plunger execution, equipped with stroke indicator and anti overstroke device. • Hydraulic cylinders suitable for heavy duty applications, pushing and large lifting operations. • The guiding surfaces are sized to guarantee optimal performance in load offset absorption. • Equipped with high strength gaskets for maximum durability, 3/8” NPT female coupler with dust cap equipped. • Removable high strength saddle and possibility of mounting a tilting saddle for better distribution of the load to be lifted. • Nitox ONC treatment on all mechanical components for maximum resistance against corrosion and wear. • All models are equipped with lifting eyebolts. • Possibility to design and produce custom made hydraulic cylinders on request, with dedicated geometries, performances and features. High tonnage cylinders, single acting, load return Hydraulic cylinders with load return in high pressure. Pushing force from 50 to 1000 tons with a stroke range from 50 mm to 300 mm. High tonnage hydraulic cylinders, suitable for lifting and pushing operations. Operating pressure 700 bar. Guide surfaces are sized to guarantee optimal performance in absorbing the offset load. Plunger execution, equipped with stroke indicator and anti overstroke device. Hydraulic jacks equipped with high strength gaskets for maximum durability up to 60° C, upon request it is possible to equip the cylinder with gaskets resistant to high temperatures up to 200° C.
