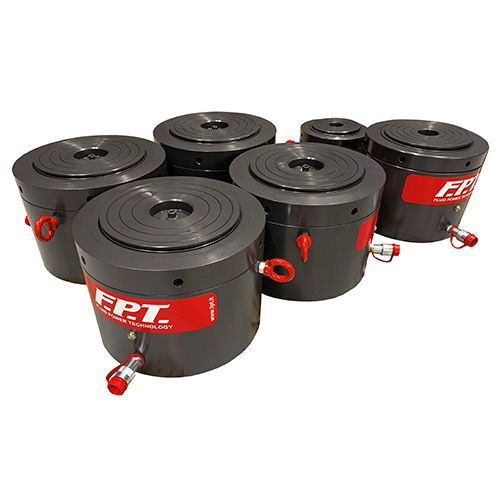

Hydraulic cylinder CSE GS TU TA
single-actingfor liftinghigh-tonnage

hydraulic cylinder
hydraulic cylinder
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Configuration
single-acting
Applications
for lifting
Other characteristics
high-tonnage

Description

Hydraulic cylinder load retun high tonnage High tonnage hydraulic cylinders with lock nut SHigh tonnage hydraulic cylinders with lock nut in high pressure. Pushing force from 10 to 600 tons with a stroke range from 25 mm to 300 mm. High tonnage suitable for lifting and pushing operations. Operating pressure 700 bar. Guide surfaces are sized to guarantee optimal performance in absorbing the offset load and the end stroke ring increases safety for the operator by avoiding the extra stroke of the piston. Hydraulic jacks equipped with high strength gaskets for maximum durability up to 60° C, upon request it is possible to equip the cylinder with gaskets resistant to high temperatures up to 200° C. Furthermore, the presence of the wiper prevents contamination from impurities present in the environment of use.

Catalogs

No catalogs are available for this product.

See all of FPT Fluid Power Technology‘s catalogs
