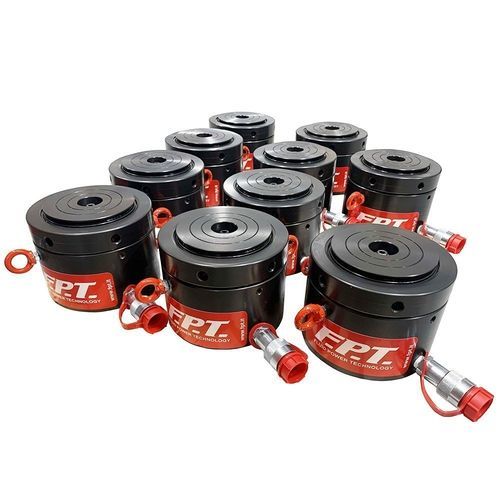

Cylinder with lock-nut CSE GS C

hydraulicsingle-actingfor lifting applications

• High tonnage hydraulic cylinders with lock nut, reduced height, single acting. Push force from 60 to 500 tons with a range of strokes from 45 mm to 50 mm. • Compact hydraulic cylinders, suitable for lifting operations pushing and heavy lifting. Lock nut for the maintenance of the load in complete safety. • The guiding surfaces are sized to guarantee optimal performance in load offset absorption. Pluging execution, equipped with anti overstroke device. • Equipped with high-strength gaskets for maximum durability. • 3/8 ’’ NPT female coupler with dust cap equipped. • Tilting saddle for optimal offset load distribution. • Nitox ONC treatment on all mechanical components for maximum resistance against corrosion and wear. • All models weighing more than 20 kg are equipped with lifting eyebolts. • Possibility to design and produce custom made hydraulic cylinders on request, with dedicated geometries, performances and features. Single acting cylinders with lock nut, low height for confined spaces Lock nut hydraulic cylinders low height in high pressure. Pushing force from 60 to 500 tons with a stroke range from 45mm to 50 mm. Low Profile and low height to be used in confined areas with locking collar to hold the load on fully safety, suitable for lifting and pushing operations. Operating pressure 700 bar. Guide surfaces are sized to guarantee optimal performance in absorbing the offset load and the end stroke ring increases safety for the operator by avoiding the extra stroke of the piston.
