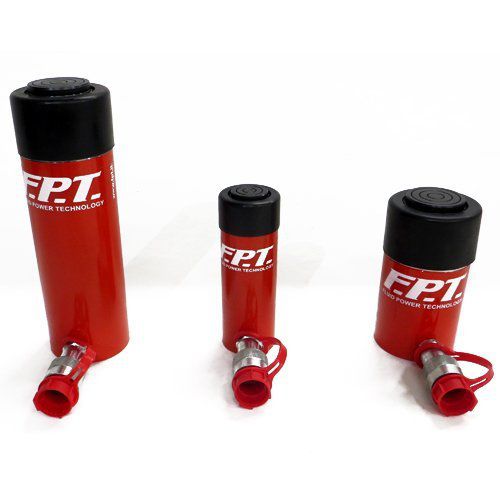

Hydraulic cylinder CRM series
pistonspring-returnfor lifting

hydraulic cylinder
hydraulic cylinder
hydraulic cylinder
hydraulic cylinder
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Technology
piston
Configuration
spring-return
Applications
for lifting
Other characteristics
for heavy loads, long-stroke, high-tonnage, high-pressure
Stroke

Max.: 360 mm (14.173 in)

Min.: 25 mm (0.984 in)

Force

Max.: 929 kN

Min.: 45 kN

Pressure

700 bar (10,152.6 psi)

Description

• Single-acting cylinders with spring return for various utilizations, general purpose, extremely versatile and suitable for diverse fields of applications. • Hydraulic cylinders with spring return, 700 bar. • The guide ring and stop ring not only guarantees maximum operator safety, preventing plunger over-stroke, but also outstanding eccentric load absorption. • The wiper reduces contamination between ring and rod. • High-strength removable head. • Drilled and threaded base for additional attachments. Single acting cylinders with spring return hydraulic cylinder in high pressure. Pushing force from 5 to 100 tons with a stroke range from 25 mm to 360 mm. Extremely versatile hydraulic cylinders, suitable for diversified uses, for general purpose suitable for lifting and pushing operations. Operating pressure 700 bar. Guide surfaces are sized to guarantee optimal performance in absorbing the offset load and the end stroke ring increases safety for the operator by avoiding the extra stroke of the piston. Hydraulic jacks equipped with high strength gaskets for maximum durability up to 60° C, upon request it is possible to equip the cylinder with gaskets resistant to high temperatures up to 200° C. Furthermore, the presence of the wiper prevents contamination from impurities present in the environment of use. Cylinders are equipped with a 3/8 “NPT female coupler equipped with an anti dust cap and can be secured to structures or machinery through the fixing holes on the bottom and the thread on the cylinder’s external body. Removable high resistance head and possibility of mounting a self-leveling head for a better distribution of the load to be lifted.
