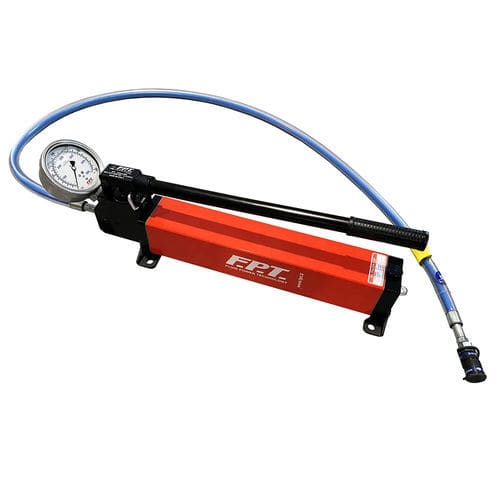

Piston pump PDSA

polymeroilhand

• Manual pumps for very high pressures, light, compact and easy to carry, made in aluminium • At the maximum pressure of 1600 bar – 23000 psi the manual pumps develop a very low lever effort and the two flow rates with 40 cm3 / pumped in the approach phase allow rapid operations and less operator fatigue. • Strong and functional pumps, typically used in the hydraulic bolting sector for operating hydraulic bolt tensioners and hydraulic nuts. They are also indicated for the bearing’s installations, bearing mounting and dismounting, test benches, tank and pipe tests. • Pumps equipped with the hole for mounting the pressure gauge directly on the head and the practical lever locking system for the transport. The anodizing and fire painting treatments complete the product, ensuring high resistance to wear and corrosion even in aggressive environments such as the offshore sector. • Equipped with an internal safety valve set at the maximum working pressure. 1600 bar – 23000 psi hand pumps – very high pressure hydraulic hand pumps produced in light aluminum alloy of aeronautical derivation to reduce as much as possible the weight. Maximum operating pressure: 1600 bar / 23000 psi – Double stage high speed. Equipped with an ergonomic bypass hand wheel in techno polymer for controlled pressure relief, with integrated pressure gauge connection that allows direct mounting of the measuring instrument with 45 ° inclination for a correct reading and lever locking system for easy and better portability. Oil filler cap with integrated breather. Sturdy feet with holes for attachment to machinery or structures.
