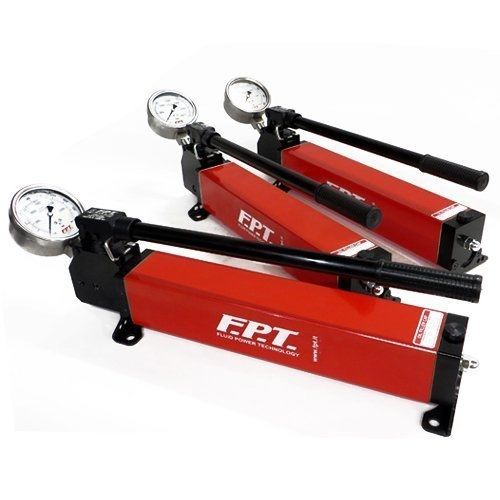

Hydraulic piston pump PMS-PDS

handaluminumtwo-speed

Very high pressure hydraulic hand pumps 1600 bar – 3000 bar and 4000 bar. • Manual pumps for very high pressures, light, compact and easy to carry, made in aluminum • At the maximum pressure, the 1600 bar and 3000 bar hand pumps develop a very low lever effort and the two flow rates with 40 cm3 / pumped in the approach phase allow rapid operations and less operator fatigue. • Pumps equipped with the hole for mounting the pressure gauge directly on the head and the practical lever locking system for the transport. The anodizing and fire painting treatments complete the product, ensuring high resistance to wear and corrosion even in aggressive environments such as the offshore sector. • Equipped with an internal safety valve set at the maximum working pressure. • Robust and functional pumps, typically used in the bolting sector for operating hydraulic bolt tensioners and hydraulic nuts. They are also indicated for the bearings installations, test benches, tank and pipe tests. Equipped with an ergonomic bypass hand wheel in techno polymer for controlled pressure relief, with integrated pressure gauge connection that allows direct mounting of the measuring instrument with 45 ° inclination for a correct reading and lever locking system for easy and better portability. Oil filler cap with integrated breather. Sturdy feet with holes for attachment to machinery or structures. Pressure safety valve integrated in the pump body for maximum operator safety. Design studied to have high performances maintaining an optimal effort on the lever, a reduced weight and an excellent ergonomics. Robust hand pumps – heavy duty – with long maintenance intervals.
