3.5" Dual Core CPU with LVDS/VGA/SSD/LAN/Audio Port
Bus Type: 3.5" architecture
Processor: Celeron440/423 and dual-core L2400/T2500/U2500 CPU
System Chipset: Intel945GM + Intel ICH7M
System Memory: 1 x SO-DIMM 533/667 DDR II slot, supports up to 2 GB DDR II memory
Onboard Video: Support VGA/18/24-bit TFT LVDS/TV-OUT independent dual-display
Onboard Audio: AC¡¬97 audio port
I/O Interface: 4 x USB ports, 1 x PS/2 KB/Mouse port, 1 x RS-232, 1 x RS-232/422/485
SSD: 1 x CompactFlash socket
Watchdog Timer: 256 levels, second/minute programmable, timeout interrupt or system reset
Expansion Bus: EVOC Multi-functional expansion bus
Power Supply: AT/ATX power supply
Dimensions: 146mm x 102mm
Operating Temp.: -20"aC¡X60"aC
Operating Humidity: 5%-90%, non-condensing
Power Consumption: Typical 16W (Celeron440/423 CPU, 2GB memory)
IDE Controller: 1 x ATA100 port supports 2 x IDE devices |
|
| Intel-based computers that deliver full PC functionality to the user from a centralized location. The blades are compact and house the latest PC components including Intel® Core™ 2 Duo, Xeon® and Pentium® 4 processors with Hyper-Threading, DDR2 memory, SATA hard drives and NVIDIA® graphics cards. |
|
- 6U CompactPCI system slot board, up to 64 Bit/66MHz, PCI-X
- Pentium M up to 2GHz or Celeron M, 1GHz
- Cyclone FPGA for customized computer I/O
- 2 GB DDR2 ECC SDRAM soldered against shock and vibration
- Windows®, Linux, VxWorks®, QNX |
|
The new SLC-8550-LVA is the 5-inch bay sized (203mm×145mm) CPU board and is a lead-free and RoHS-compliant product. This CPU board supports the Intel 855GME + ICH4 chipset and is compatible with 1.6G-2.0GHz (FSB400MHz) Intel Pentium M processor and 1.3G-1.5GHz (FSB400MHz) Intel Celeron M processor. The main memory complies with PC2700 DDR SDRAM (supports both ECC and non-ECC memory) and is able to contain up to 1 GB.
The SLC-8550-LVA provides the expansion capability including six 232C serial communication ports (two of them are pin header connector), six USB 2.0 ports, CF slot (enables boot-up), AC97 audio and PCI slot, making it ideal for complicated embedded applications. LVDS interface and analog RGA enables the dual independent displays. CONTEC strives to customize contained devices and BIOS of the new SLC-8550-LVA as its custom ordered (OEM) product.
|
|

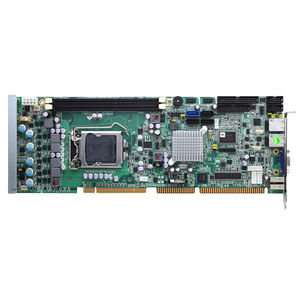

CPU: Support LGA775 Celeron/Celeron-D/Core 2 Duo CPU
Chipset: Intel Q965+ICH8/ICH8DO
Memory: Support 533/667/800MHz DDR2 memory, up to 4GB
Graphic: Intel Q965 Express chipset integrated GMA3000 graphic core, 2 VGA ports allow for dual display
Ethernet: Extend one 10/100/1000Mbps network interface via ICH8/ICH8DO, one 1000M network chip, support Wake on line
Audio: AC97 2.3 audio controller, support MIC-in/Line-in/Speaker-out
SATA ‡U: Support SATA ‡U x4 or x6 (ICH8DO supports RAID 0, 1, 5, 10))
I/O Interface: 10 x USB 2.0, 2 x serial port, 1 x parallel port, 1 x PS/2 interface
Hardware Monitor: Monitoring system status, voltage, temperature and fan speed
Watchdog Timer: 1~255 seconds/minutes interval, 510 levels, timeout interrupt or system reset
Power Supply: Support AT/ATX power supply
Operating Temp.: 0‹C~60‹C |
|

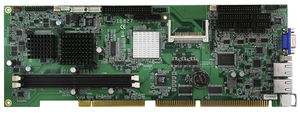

Full Size PICMG 1.3
High performance slot CPU offering PCI express
Fast The PCI-960 combines Intel‘s latest low power processor, the Core 2 Duo, with the 945GM chipset to deliver outstanding performance and bandwidth. It allows you to set the pace with innovative applications today ... |
|
EPIC-Express Onboard Celeron M Single-board Computer with CF, LCD and CRT Display Modes
Model Number:EC4-1713CLDNA
Supports Intel FSB 400/533MHz Celeron-M and Pentium-M processors
Intel 915GM and Intel ICH6-M chipset
1 x DDR2 SO-DIMM slot
Integrated Intel GMA900 graphics controller
Supports VGA, CF, LCD, CRT, LVDS, VGA and DVI dual display modes
Onboard 10/100Mbps Ethernet controller and AC 97 audio codec
1 x EPIC-Express compliant PCI-Express slot and 1 x PC/104-slot
Supports 4 x USB 2.0, 1 x parallel port, 3 x RS-232, 1 x RS-232/422/485, 1 x PS/2, 1 x SATA, 1 x IDE and 1 x CF interfaces |
|
PICMG 1.0 CPU Board
PICMG 1.3 CPU Board
PCISA CPU Board
PICO/PICOe CPU Board
ISA CPU Board
5" 1/4 CPU Board
Embedded CPU Board
ETX CPU Board
ATX CPU Board
Mini ITX CPU Board
PIAGP CPU Board
|
|
| Based on AT91SAM9263 SOC (with ARM926EJ-S CPU) from ATMEL, this high performance CPU module board is an ideal platform for applications such as Point Of Sales, Point of service, GPS, and HMI for Industrial control. Having support for Embedded Linux with JAVA or Win CE with .NET framework migration of your applications from platform such as PC becomes seamless thus adding value to your solution by saving cost. This CPU module board supports peripherals such as TFT LCD, USB host, USB device, SDIO, SD/MMC, CAN, 10/100 Mbps Ethernet, CMOS camera, ADC, SPI, I2C, Hard Disk etc and up to 64 MB RAM and up to 64 MB Flash. Application of AT91SAM9263 CPU module board : Audio/Video based consumer application, Military and aerospace, Industrial and control systems Automotive, Storage and networking, Medical electronics, Point of sale terminals, Point of Service terminals, HMI application. |
|

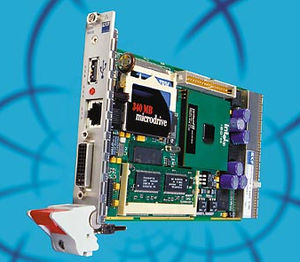

- Standard-Hardware on 3U CompactPCI
- Nios® II from Altera® - an “ARM-class” soft core
- Wishbone connection supports use of a wide variety of open cores |
|
FPGA Processors
TS Series Processor boards are the foundational element of our FPGA Computing family. Each TS Series board has an Altera FPGA processor chip, a PCI interface, SRAM, SDRAM, an I/O module, and expansion slots for additional FPGA Computing power. These elements are interconnected by a high speed bus on the board.
If your needs are for advanced signal processing using multiprocessors, click here to see those products within the Multiprocessors family, including the V4DSP. |
|
