General description
Application

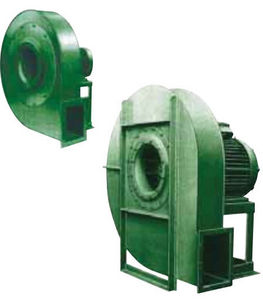

These fans are designed especially for local ventilation. They are installed on wall brackets inside the rooms. Ability to over-come signi! cant " ow resistances makes them especially useful in installation with local exhausts.
Structure
It consists of a spiral steel housing, motor with a radial impeller mounted on its shaft. The fan inlet is equipped with a " ange, to install it on the wall bracket or ! ltering unit. It is recommended to install silencers type TK at the fan inlet and outlet.
|
|

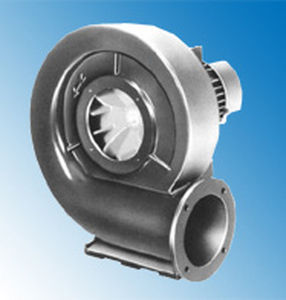

The air-flow giant in the Leister blower program. At 50 Hz the air output is 13 500 l/min and 15 900 l/min at 60 Hz.
With the appropriate accessories, it supplies one or more
Leister air heaters.
• High air flow
• Robust
• Continuous operation
• Can be fitted in every position
|
|
Radial blowers achieve high delivery volumes with very little pulsation. The frequency inverter integrated on the motor provides the capability of matching volumetric flow exactly to customer requirements. Accessories, such as intake filter or suction sound absorber, are available as optional extras.
|
|
DESCRIPTION: Single Stage, Hi ideal for coatinggh-Speed Centrifugal Compressor, Oil-Less, SpindlDesign.
DRIVE SYSTEM: DirectDrive™ Technology (Patent Pending), Impeller directly coupled to Motor Shaftwith Variable Speed Frequency Drive Control. Integrated Motor Protection, Maximum Air Inlet Temperature: 150ºF [60ºC]
CONSTRUCTION: A356-T6 Alluminum, 79lbs. [36kg]
HIGH-SPEED MOTOR: TEFC, IP54, External Junction Box, 10/7.5HP [7.5/5.5kW] 3-Phase, 190-600VAC, 50/60Hz, 105ºF [40ºC] Ambient.
VARIABLE FREQUENCY DRIVE: IP20 (IP66 Available), 10/7.5HP [7.5/5.5kW] 3-Phase, 190V-600V, 50/60Hz, CE EMI/RFI Electrical Filter, Digital & Analog I/O, Network Communication.
|
|
RTS Fans
New York Blower RTS Fans combine the rugged construction required in heavy industrial-process applications with pre-engineered fan designs for unequaled performance, quality and value. RTS radial-tip wheels handle a wide variety of airstreams usually reserved for field-erected equipment including baghouse exhaust, recirculation of dust-laden gases and induced-draft service.
|
|
| ... products without technical information |
| |
... see all the products in the category
Blowers
|
The series of SEPA® HYB... fans are designed for active cooling in flat systems. The radial fans are equipped with ball-bearings and metal- or plastic-housing.
Despite of compact design the fans are providing high air flow. As usual for all SEPA products, superior reliability because of 100% burn-in.
SEPA Europe GmbH provides 7 different sizes from 35x35x5 mm up to 65x65x12,3 mm. Standard supply-voltage is 5VDC, optional it is possible to get an alarm-output or a special connector.
|
|
|
|
