Aluminium Shoring System GASS
Aluminium shoring system to discharge heavy loads coming from great heights useful in every construction area
* To be used as shoring system, table form, load-tower, single support
* Low weight parts
* Up to 6.5 m height only one leg
* Variable thanks to 8 connection possibilities at one leg
* Fast wedge link for connection frame/leg
* Frame height 1 m usable as security railing at an all-over live load of 1.5 kN/m²
* Complete table form unit movable by crane
Dimensions: Leg length 467 / 358 / 249 / 140 cm
Frame width 120 / 180 / 240 / 300 cm
Max. Load: Max. load per leg 140 kN
|
|
Staxo 100
The ultra-heavy-duty, easy-to-use load-bearing tower made of steel, complete with built-in safety
Staxo 100 has all the tried-and-tested advantages of Staxo - robustness, ease of use, versatility. Now a comprehensive safety package has been integrated as well, and load-bearing strength significantly increased.
|
|

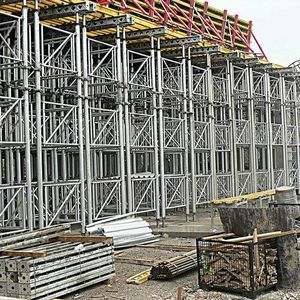

MEVA offers a cost-saving, safe and economical alternative solution to form high columns or circular columns: the shoring tower Space.
The tower segments with a square dimension of 4.80 m are preassembled at ground level and connected with screws. The system provides tower units with a height of 3.00 m and extensions of 0.50 m and 1.00 m. With these you can build a safe access to building parts at almost any height – even of more than 30 m. At the same time the shoring tower Space serves to brace and align the formwork. Wind loads can also be transferred into the shoring tower
|
|
The right shoring system for each application
The different slab formwork systems, in connection with falsework and support constructions at large heights, require different systems depending on the scaffold tower height and loads to be carried. The most important criterion when selecting a shoring system is the level of adaptability to the formwork to be used.
With its extensive programme, PERI offers the most economical solution for each application in the area of scaffold systems and slab tables.
ST 100 Stacking Tower
PD 8 Table System and Shoring Tower
MULTIPROP System
PERI UP Rosett Shoring Tower
|
|
|
|
