Bistable solenoids have two stable end positions which are maintained without current. Between the two end positions switching is effected with a current impulse of varying polarity.
90 % of our solenoids are made to customer’s specifications. Please do not hesitate to contact us concerning any solenoid specific questions.
|
|
Heavy duty solenoids feature a fully encapsulated design. Thanks to the high material fraction the solenoid system contains a lot of iron allowing optimum use of the available space in relation to the required output. We supply these solenoids in cylindrical or square design.
90 % of our solenoids are made to customer’s specifications. Please do not hesitate to contact us concerning any solenoid specific questions.
|
|

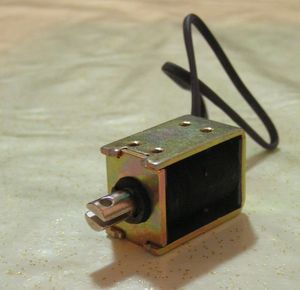

Open frame linear solenoids are made of a punched and bended yoke. Thanks to numerous standard variations, these solenoids can be used for a wide range of applications.
90 % of our solenoids are made to customer’s specifications. Please do not hesitate to contact us concerning any solenoid specific questions.
|
|
Rotary solenoids perform an angle limiting rotary movement between two end positions. We supply these solenoids in cylindrical or square design.
90 % of our solenoids are made to customer’s specifications. Please do not hesitate to contact us concerning any solenoid specific questions.
|
|
Compact dimensions and low power consumption but maximum
linear work, fast switching times and smooth operation characterise
these solenoids. They are used in all types of engineering
applications - in machine tools and packaging machines,
in automatic systems and office equipment, in regulation and
control systems. In short, these reliable components can be used
wherever high demands are placed on operational reliability.
Deliverable are also:
- Magnets for EX applications with ATEX certification
- Spreading solenoids for braking operations
- Locking solenoids
Standard voltage: 24 V DC
with plug-in connector with integral rectifier:
230 V AC, 40 - 60 Hz (205 V DC)
Other voltages available on request (for a surcharge).
Standard duty cycle: 100 %
Stroke length: 8 - 60 mm
|
|
Part number 8.01.42.03 8.02.13.62 8.54.AA.62
Shown in
energised position
For a more detailed drawing
please request the
specifications sheet
of the product
8.02 8.54
Nominal stroke 3 mm 4 mm 4 mm
Absorbed
1,3 4,8 21,5 4 13 40 5,3 16 60
power (W)
Force at beginning of stroke (N) 0,05 0,2 0,8 0,3 0,8 2 0,5 1,5 5,6
Force at end of stroke (N) 0,5 1,1 2 2,4 3,4 5 2,4 4,9 12
Duty cycle 100% 25% 5% 100% 25% 5 % 100% 25 % 5 %
Total length of cycle 2 mn 2 mn 2 mn 2 mn 2 mn 2 mn
Standard voltage 12 Vdc 24 Vdc 24 Vdc
Function Pull Push-Pull Push-Pull
Incorporating return spring no no yes
Plunger retainer no no no
Totale weight 10 g 30 g 45 g
Plunger weight 2,5 g 10 g 10 g
Protection rating IP00 IP40 IP00
|
|
DC single direction linear solenoids are the universal, inexpensive
answer for precision engineering and industrial applications as
well as for locking/latching requirements.
They can be installed in any position. Push or pull actuation is
possible. However, the force transfer should be in the axial direction
only; lateral loads increase the wear on the bearings.
Specifications with or without return spring possible. Optionally monostable or bistable operation method possible.
Standard voltage: 24 V DC/ 205 V DC
Standard duty cycle: 100 %
Stroke length: 3 - 30 mm
|
|
|
More than 30 years experience and a real know-how for standard or specific products. We have references in all industry sectors. Present us the function you need to comply with, we will offer the solenoid perfectly adapted to your requirements.
|
|
|
solenoids - electromagnets for stop and accelerations of the diesel motors - of traction and push - to continuativo or intermittent service
|
|
Switching and proportional solenoids
Flange connection with robust body made of steel
Submerged solenoids
Potted as a standard
Sizes 29 mm, 35 mm, 45 mm
and 60 mm
Static pressure proof up to 350 bar
DC executions (10...250 VDC)
AC executions (24...250VAC) with integrated
rectification
|
|
Made according to the following norms: DIN VDE0580, NFC79300 y UNE-EN 60204-1..
Bistable solenoid is a simple effect product, the stroke from the initial position (s) to the end is made by a direct or retified electrical polarized signal. To return to the initial position it is necessary to send an electrical signal of inverse polarity (direct or alternating) equal to the nominal voltage, this signal will only vary the force of the magnet, it will not produce any returning or repulsion force. To make the plunger return to its initial position it is necessary to use external forces such as a spring.
CE-This product is made according to the 73/23/CEE Low Voltage European Guideline about electrical appliance for certain limits of voltage and modification 93/68/CEE. The fulfilment of the 89/336 CEE (electromagnetic compatibility) norms must be assured by the user.
|
|

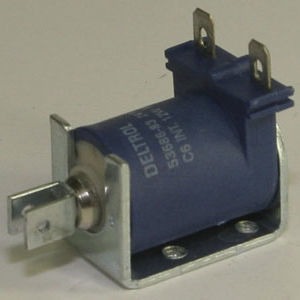

Deltrol Controls offers a wide range of standard linear solenoids. We have C-Frame, D-Frame, and tubular constructions. In addition to our standard product line, we have the ability to offer custom solutions that range from simple modifications of a standard product to an entirely new solenoid designed for your application.
Many of our products utilize class F (155 C) thermoplastic encapsulated coils. This provides for excellent thermal properties and protection for the coil windings.
Our solenoids are thoroughly tested to insure you receive a high quality product. Additionally, many of our solenoids carry UL certification either as a component or for the insulation system used.
Contact one of our sales engineers to discuss your specific application
Phone: (01) 414 671 6800
Fax: (01) 414 671 6809
Email: brian-cahill@deltrol.com
Website: www.deltrol-controls.com
|
|
LEDEX linear DC solenoid
Dimensions (mm) Ø 13x27 - Ø 38x63
Duty cycle continuous or intermittent
100% 50% 25% 10%
Stroke Up to 63.5 mm
Force Up to 43 N
Life >25 million cycles
Power (W) 4-200
Supply (V) 2.4-534 VDC
Housing Shock and vibration integrity
Characteristics • Push/pull engagement: well-suited to lock/latch operations
• Multiple plunger designs
• on/off operation
|
|
Standard Voltage: 24V D.C. 230V A.C. (another voltages under demand)
Protection Rate: IP-40
For further data and for ETN technical explanations, please request the corresponding technical sheet.
|
|
Linear Solenoids and Rotary Solenoids
Specializing in Special
We Fit Our Product to Your System
We have all been there. The new design is perfect with one exception. The "off the shelf" product just won't cut it. In solenoid terms, it can be for a number of reasons. The force is too low. The mounting or interface won't work. The voltage range is incorrect. Or maybe the plating or materials are insufficient for the environment. This is where your special needs demand a special product. GW Lisk makes custom solenoids to meet your specific needs.
The concept is simple. A coil of copper magnet wire is placed inside a steel housing with end iron and a steel armature. An electrical current is applied to the coil and a magnetic field is created, moving the armature to close a preset air gap. With varied geometry, that linear force can be turned into a rotational torque. That is where the simple ends and the customization begins.
|
|
Deltrol Controls offers a wide range of standard linear solenoids. We have C-Frame, D-Frame, and tubular constructions. In addition to our standard product line, we have the ability to offer custom solutions that range from simple modifications of a standard product to an entirely new solenoid designed for your application.
Many of our products utilize class F (155 C) thermoplastic encapsulated coils. This provides for excellent thermal properties and protection for the coil windings.
Our solenoids are thoroughly tested to insure you receive a high quality product. Additionally, many of our solenoids carry UL certification either as a component or for the insulation system used.
Contact one of our sales engineers to discuss your specific application
Phone: (01) 414 671 6800
Fax: (01) 414 671 6809
Email: brian-cahill@deltrol.com
Website: www.deltrol-controls.com
|
|
Dormeyer AC open frame linear solenoid
Dimensions (mm) up to 51 x 44 x 77mm
Duty cycle continuous or intermettent
100% 50% 20% 10%
Stroke Up to 25.4mm
Force Up to 49N
Life 50,000 to 100,000 cycles
Power (W) 1.4 - 190
Supply (V) 6-388 VDC/240 VAC
Housing Compact box frame and C frame designs
Characteristics • Pull-in engagement (push types available): well-suited to lock/latch operations
• AC or DC activated
• economic design for volume applications
• on/off operation
|
|
DESCRIPTION:
In the reversible linear solenoid the stroke is made by electromagnetic forces. The end of the stroke in one sense is the beginning in the other.
(Made according to the German norm VDE0580 and the French NFC79300).
The terms used are according to ETN technical explanations. The magnetic force values (FM) depending on the stroke are obtained in the following conditions: Ambient temperature = 35º C Coil stabilized to its work tempearture. Supply voltage 90% of the standard. Solenoid in horizontal position The effective force is obtained of the magnetic force (FM), adding or substracting the weight of the core.
- When the solenoid pulls upwards: Effective force = Magnetic force - weight of the core
- When the solenoid pulls downwards: Effective force = Magnetic force + weight of the core
- When the solenoid pulls in horizontal position: Effective force = Magnetic Force
Duty cycle calcule (ED%) = ( Energised time/ energised time+ off time) x 100
|
|
LEDEX DC rotary solenoid
Dimensions (mm) Ø 25x16 - Ø 70x45
Duty cycle continuous or intermittent 100% 50% 20% 10%
Life 1 million cycles: 50 million cycles on extended life types
Power (W) 10-100
Supply (V) 2.6-123
Housing Compact design with a variety of enclosures
Characteristics
• "Snap" acting engagement
• maximum versatility
• on/off operation
|
|
|
|
|
|
Lisk provides custom rotary solenoids based on two different technologies. Whether you need the high shock resistence of the Radial Armature Rotary or the superior torque performance of the Cam Armature Rotary, we can make a solenoid that is right for your application.
Cam Armature Rotary
The Cam Armature Rotary relies on efficient design to provide superior torque performance. Single ball design eliminates the "Out of Sync" problem of multi-ball designs. Up to 180 degree rotaion.
Up to 50 in-lb (5.65 N-m) of intermittent duty carry torque.
Up to 50 in-lb (5.65 N-m) of continuous duty hold torque.
Zero axial motion.
1 million cycle life.
Sizes from 1.0 to 4.0 inches in diameter.
Radial Armature Rotary
The Radial Armature Rotary is the solenoid of choice for high shock and vibration environments.
Designs available with 30, 45, and 70 degrees of rotation.
Up to 25 in-lb of intermittent duty carry torque.
Excellent resistance to shock and vibration.
Zero axial motion.
10 million cycle life.
Sizes from 0.8 to 4.0 inches in diameter.
Internal return springs available.
|
|
Deltrol Controls offers a wide range of standard linear solenoids. We have C-Frame, D-Frame, and tubular constructions. In addition to our standard product line, we have the ability to offer custom solutions that range from simple modifications of a standard product to an entirely new solenoid designed for your application.
Many of our products utilize class F (155 C) thermoplastic encapsulated coils. This provides for excellent thermal properties and protection for the coil windings.
Our solenoids are thoroughly tested to insure you receive a high quality product. Additionally, many of our solenoids carry UL certification either as a component or for the insulation system used.
Contact one of our sales engineers to discuss your specific application
Phone: (01) 414 671 6800
Fax: (01) 414 671 6809
Email: sales@deltrol.com
Website: www.deltrol-controls.com
|
|
Standard voltage: 24V d.c. (another voltages under demand)
Protection rate: IP-00
Return spring under demand
For further data, please request the corresponding technical sheet.
*Other values of force, stroke, duty cycle, dimensions etc, can be consulted.
|
|
Short description:
Industrial Solenoids are electromagnets which come in many different sizes and apply a straight line force, in a push or pull motion, when energized. (CR9500, CR9503 Series)
|
|
G.W. Lisk's commercial solenoids come in 25 standard sizes. (1/4" Dia thru 3" Dia.) Our forte is to customize these standard sizes to meet your specific needs.
They can be used on a wide variety of applications from heavy vehicle engine control to precise control of medical equipment.
No quantities are too small or too large.
DESIGN DATA SHEET
Need a special or unique linear solenoid? Please complete the Design Data Sheet form and we will respond promptly to your request.
|
|
|

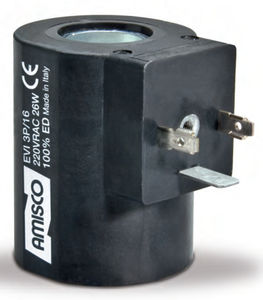

Solenoid coils work in conjuction with solenoid valves. The coil provides electrical power to the solenoid valve, causing the solenoid valve to open or close depending on the valve model.
|
|
HYDAC Solenoid Technology:
Variety due to customer-orientated design.
coils
poletubes
compact solenoids
LVDT-systems
complete solenoid with strippable tube
|
|
|
Industrial Solenoids are electromagnets which come in many different sizes and apply a straight line force, in a push or pull motion, when energized. (CR9500, CR9503 Series)
|
|
|
|
