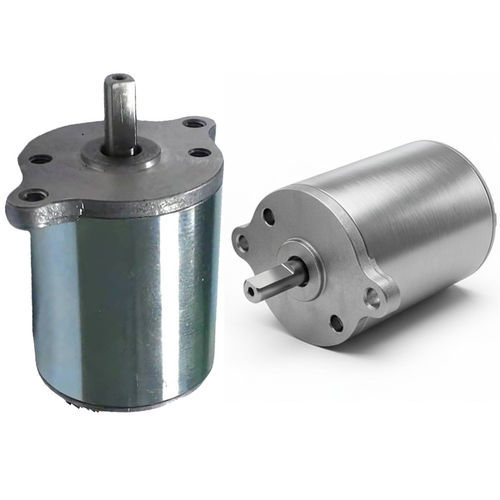

Holding solenoid WL0432

rotarylockingsorting

Product Overview
The Weilong Rotary Solenoid WL0432 is an electromechanical actuator that converts electrical input into precise angular displacement (preset up to 90°). It produces controlled rotary motion using a coil-driven magnetic field and a return mechanism (spring or reverse polarity) for reliable positioning in industrial automation applications.

Key Features

• Compact rotary output with fast response suitable for automation and locking applications.
• Stable torque and high repeatability for accurate indexing and positioning.
• Multiple voltage options (DC 12V / 18V / 24V) and torque/power variants.
• Standard configurations include automatic return spring and configurable shaft/mounting options.
• Simple, serviceable construction enabling long service life with minimal maintenance.

Structure & Operation
The WL0432 comprises a coil, stator, rotor (armature), shaft and return spring. Energizing the coil generates a magnetic field that rotates the rotor to the preset angle (commonly 25°, 45°, 60° or 90°). Available in AC or DC variants and different mounting/shaft arrangements depending on application requirements.

Applications
Suitable for industrial automation (sorting, indexing, part positioning), locking and safety devices, HVAC actuators, office equipment (printers/copiers), automotive subsystems, electronic doors and selected medical devices where compact, repeatable angular motion is required.

Advantages & Disadvantages

• Advantages: Precise repeatable angular motion without complex linkages, compact footprint, fast actuation and low maintenance.
• Disadvantages: Limited to preset rotation angles (typical up to 90°), torque constrained for very heavy loads, possible heating under continuous duty and may require return springs or driver electronics for specific motion profiles.

Troubleshooting (selected highlights)

• No rotation: verify power supply, rated voltage, coil resistance and terminal connections.
• Weak/incomplete rotation: check voltage/current, reduce mechanical load and inspect for contamination or wear.
• Slow response: confirm supply stability, duty cycle, cooling and ensure correct driver circuitry.
• Overheating: check duty cycle compliance, correct voltage and heat dissipation.
• No return to neutral: inspect/replace return spring, remove obstructions and verify alignment.
• Noise/vibration: check mounting fasteners, shaft alignment and internal wear.

Product Datasheet (key data)
Brand: Weilong
Model Number: WL0432
Rated Voltage (V): DC 12V, 18V or 24V
Rated Power (W): 40–80 W
Work Mode: Rotation (preset angle)
Holding Force: approx. 150–300 GF
Rotating Angle: 25°, 45°, 60° or 90°
Working Duty: typical 25% (range 1–100% available)
Service Life: ~500,000 cycles
Certifications: CE, RoHS, ISO9001
Material: Carbon steel housing
Lead Wire Length: 200 mm
Mounting: screw
Dimensional Tolerance: +/- 0.1 mm
Ingress Protection: none (standard)
Insulation Class: B
Dielectric (Hi-Pot): AC 600V 50/60Hz 2s
Operating Temperature: -10°C to 100°C
Warranty: 1 year
MOQ: 1000 pcs; Supply: 5000 pcs/week; Delivery: 30 days (Shenzhen)

Technical Specifications

• Brand: Weilong
• Model: WL0432
• Rated Voltage: DC 12V / 18V / 24V
• Rated Power: 40–80 W
• Work Mode: Rotary (preset angle)
• Holding Force: ~150–300 GF
• Available Angles: 25°, 45°, 60°, 90°
• Working Duty: typical 25% (spec range 1–100%)
• Service Life: ≈500,000 cycles
• Certifications: CE, RoHS, ISO9001
• Housing: Carbon steel
• Lead Wire: 200 mm
• Mounting: screw
• Tolerance: +/- 0.1 mm
• IP Rating: none (standard)
• Insulation Class: B
• Hi-Pot: AC 600V 50/60Hz 2s
• Operating Temp: -10°C to 100°C
• Warranty: 1 year
