Electric actuator WL590

electromechanicalrotaryspring-return

Product Description

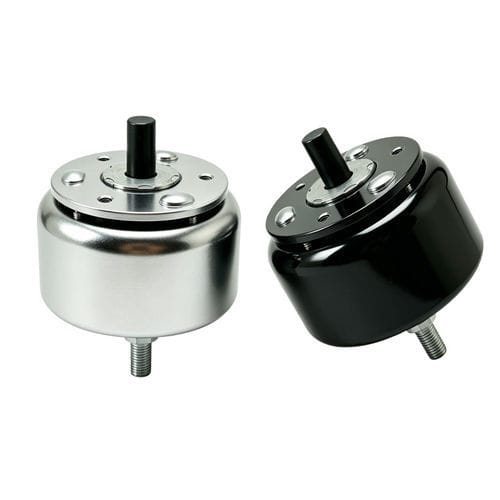

The WL590 is a compact rotary solenoid actuator that converts electrical input into a controlled angular displacement (typical angles: 25° to 90°). The coil-generated magnetic field interacts with the rotor to produce torque and repeatable rotation. Units can be configured with a return spring (single-direction) or as bi-directional (bistable/latching) actuators for applications requiring defined end positions and minimal backlash.

Main Features Of Rotary Solenoid Motor

• Compact form factor with defined holding torque.
• Fast electrical response and rapid switching.
• Repeatable angular displacement with minimal backlash.
• Simple mechanical design for reduced wear and easy integration.
• Available as spring-return (single-direction) or latching (bi-directional) versions.
• Optimizable for duty cycle to minimize energy consumption and maintenance.
• Options for higher operating temperature and continuous-duty configurations for industrial environments.

Product Overview
The WL590 combines a durable housing, electromagnetic coil and rotor mechanism to deliver consistent torque and accurate angular control in a compact package. Multiple sizes, torque ratings, mounting options and shaft configurations are available to simplify mechanical integration into automation, robotics and control systems where space and response time are critical.

Applications
Common applications include:

• Valve actuation and valve control systems.
• Robotics: small gripping mechanisms and joint actuation.
• Packaging machinery: sorting, sealing and labeling units.
• Automated assembly and positioning systems.
• Precision equipment such as printing, textile machines and certain medical devices.

Technical Datasheet (excerpt)
Brand: Weilong Technology
Model Number: WL590
Rated Voltage (V): DC 12V or 24V
Rated Power (W): 80–100 W
Work Model: Rotation
Holding Force (N·m): 0.05 — 0.08 N·m
Rotating Angle: From 25, 45, 60 or 90 degrees
Working Duty: 10% — 100%
Service Life: 500 Thousand Times
Certification: CE, RoHS, ISO9001
Material: Carbon Steel Housing
Lead Wire Length (mm): 300 mm
Install Style: screw
Tolerance of Dimension: +/- 0.1 MM
Water-proof: None
Insulation Class: B
Hi-Pot Test: AC 600V 50/60Hz 2s
Non-excitation Holding Force: 0
Working Temperature: -10°C - 100°C
Duty Cycle: 1 - 100%
Payment Term: TT, or LC At Sight
Sample Order: Yes
Warranty: 1 Year
MOQ: 1000 PCS
Supply Ability: 5000 pcs per Week
Delivery Time: 30 Days
Port of Loading: shenzhen

Technical Specifications

• Model: WL590
• Rated voltages supported: DC 12V or 24V
• Rated power range: 80–100 W
• Available rotation angles: 25°, 45°, 60°, 90°
• Holding torque: approx. 0.05–0.08 N·m
• Working duty: intermittent to continuous (10%–100%) depending on configuration
• Service life: around 500,000 cycles (typical)
• Material/housing: carbon steel
• Lead wire length: 300 mm
• Insulation class: B; hi-pot tested at AC 600V 50/60Hz for 2s
• Operating temperature range: -10°C to 100°C
• Typical delivery lead time: 30 days; MOQ: 1000 pcs; production capacity: ~5000 pcs/week
