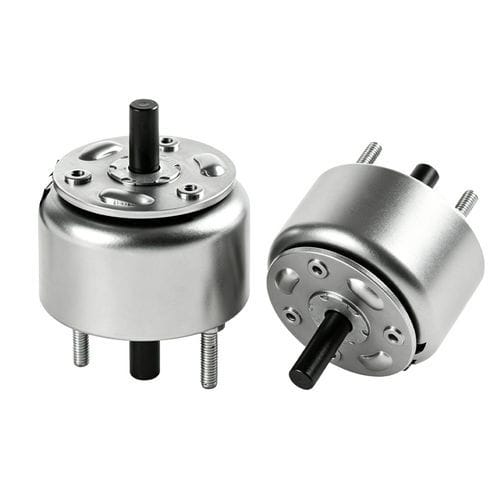

Rotary solenoid WL340

high-performancemaintenance-freecompact

Product Overview
A rotary solenoid actuator WL340 provides fast, limited-angle rotary motion by converting axial magnetic force into controlled angular displacement. Typical available angles range from 25° to 95°, with common factory options at 25°, 30°, 45°, 60° and 70°. The mechanism uses a shaped pole piece and inclined raceway (ball-bearing or helical) so axial attraction produces rotation; an internal return (usually spring) restores the initial position when power is removed.

Main Features

• Limited-angle rotary motion (typical options: 25°, 30°, 45°, 60°, 70°, 90°).
• High torque density for compact size; torque dependent on model and supply voltage.
• Available in bidirectional or unidirectional configurations.
• Very fast response times (typical 5–50 ms).
• Compatible with DC and selected AC voltages (examples: 6V, 12V, 18V, 24V, up to 110V where specified).
• Low holding current or mechanical/magnetic latching options to reduce power consumption.
• Duty cycles from intermittent to near-continuous depending on model.
• Optional protections and customizations: IP40 to IP67 enclosures, flanged mounting, custom rotation angles, extended-temperature coils.

How It Works
When the coil is energized an axial magnetic force pulls the rotor toward the stator. Inclined raceways or bearing geometry transform the axial displacement into a controlled angular travel up to the designed stop. On de-energization an internal return mechanism (typically a spring) restores the rotor. Rotation direction and final angle are set by the raceway slope and mechanical design.

Applications
Rotary solenoids are used where fast, repeatable limited-angle actuation is required: camera and projector shutters, optical filter wheels, conveyor diverters and sorters, vending and dispensing mechanisms, locking and latching devices, HVAC vents, medical device valves, automotive latches and fuel-cap locks, robotic end-effectors and tool changers, and other industrial automation tasks. IP67 variants suit wet or washdown environments.

Advantages

• Very fast switching for high-cycle applications.
• Compact size for space-constrained designs.
• Reliable, repeatable fixed-angle actuation.
• High torque relative to physical size for short angular displacements.
• Low maintenance when operated within specifications.

Disadvantages

• Limited angular travel—unsuitable for continuous rotation tasks.
• Potential heat build-up under continuous-duty unless latching variants are used.
• Less precise position/speed control compared with steppers or servomotors.
• Mechanical wear (bearings, springs) over very long lifetimes if misapplied.

Technical Specifications

• Brand: Weilong Technology
• Model Number: WL340
• Rated Voltage (V): DC 12V, 18V, or 24V
• Rated Power (W): 20–90 W
• Work Model: Rotation
• Torque Force (Nm): 0.01 — 0.04 N.m (datasheet value)
• Rotating Angle: available 25°, 45°, 60°, or 70° (model-dependent)
• Working Duty (from datasheet): 10%—100% (model-dependent; follow specific rating)
• Service Life (datasheet): 500,000 cycles (consult variant datasheet for exact figure)
• Certifications: CE, RoHS, ISO9001
• Material: Carbon Steel Housing
• Lead Wire Length: 200 mm
• Install Style: screw mounting
• Tolerance of Dimension: +/- 0.1 mm
• Water-proof (datasheet field): None (IP67 variants available on request)
• Insulation Class: B
• Hi-Pot Test: AC 600V 50/60Hz 2s
• Non-excitation Holding Force: 0
• Working Temperature: -10°C to 100°C
• Duty Cycle (detailed): 1–100% (confirm for chosen configuration)
• Payment Term: TT or LC At Sight
• Sample Order: Yes
• Warranty: 1 Year
• MOQ: 1000 PCS
• Supply Ability: 5000 pcs per week
• Delivery Time (typical): 30 Days
• Port of Loading: Shenzhen
