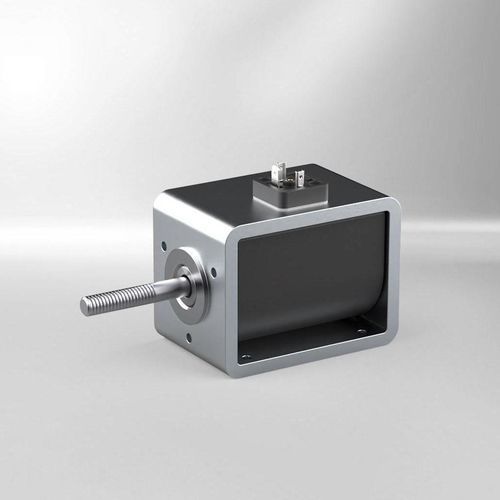

Linear solenoid Frame Solenoids

maintenance-freecustom-madecompact

Overview

Frame Solenoids are universal, cost-efficient actuating solenoids designed for precision mechanical and industrial applications. They convert electrical energy into linear actuation and are engineered for compact installation and long-term operation with a maintenance-free armature bearing and flexible mounting options.

Key features

• Universal, cost-efficient actuating solenoids
• Push and pull operation
• Individual/custom mounting options (end-face or side-mounted)
• Maintenance-free armature bearing
• Compact design for space-constrained installations
• Available with high protection class IP54

Applications

• Transportation industry
• Automation technology
• Conveyor technology
• Precision mechanical and industrial applications

Technical specifications

• Brand: Kendrion
• Commercial name: Frame Solenoids (series)
• Design: compact actuating solenoid
• Armature bearing: maintenance-free
• Mounting: individual/custom mounting options (end-face or side-mounted)
• Electrical connection: 24 / 205 V DC
• Duty cycle: 5 / 25 / 40 / 100 %
• Stroke: 3 - 30 mm
• Force: 0.5 - 550 N
• Pull-in time: 17 - 450 ms
• Drop-out time: 15 - 81 ms
• Thermal class: B
• Enclosure (device): IP00 / IP54 (LCL with bellows)
• Connector protection: IP00 (free leads) / IP65 (connector)
• Accessories: device socket with/without integrated bridge rectifier; connector with overexcitation (max rated power 48 W); fork head; return spring
