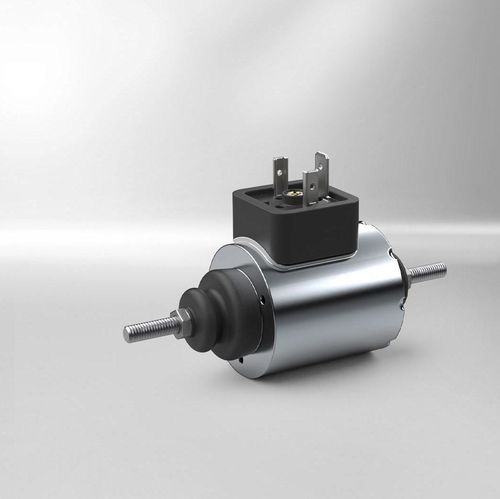

Linear solenoid High Power Linear Solenoids

sortinghigh-performancemaintenance-free

Product overview

The High Power linear solenoids are single-stroke pot magnets designed to provide high output forces, long stroke lengths and maintenance-free operation. They combine compact dimensions with low power consumption across a wide supply voltage range, making them suitable for high-frequency switching and continuous industrial use.

Benefits

• High forces and long strokes (8–600 N, 8–50 mm)
• Functional safety and reliable operation
• Extended service life with low maintenance requirements
• Short switching times and smooth actuation
• Electric operation only — no pneumatic or hydraulic infrastructure required

Applications

The High Power solenoids are used in machine building, packaging, automation technology and recycling. Compared to pneumatic or hydraulic cylinders they require only an electrical supply (no hoses, compressors or filters) and, combined with fast switching times, are particularly suitable for diverting, sorting and indexing tasks in packaging and material handling systems.

Characteristics / Technical specifications

• Supply voltage: 24–205 V DC
• Duty cycle: 5 / 25 / 40 / 100 %
• Stroke: 8–50 mm
• Force: 8–600 N
• Pull-in time: 80–780 ms
• Release time: 40–380 ms
• Thermal class: B
• Protection class (device): IP54
• Installation: front side by threaded holes
• Protection class (connection): IP65
• Accessories:
  • Female connector with/without rectifier
  • Fork head with/without ES-bolt
  • Mounting flange
