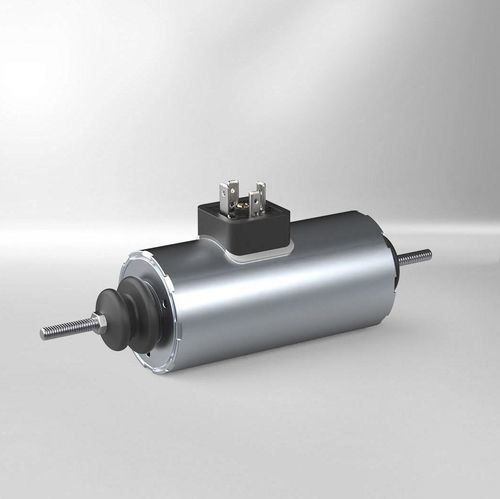

Holding solenoid Reversible Linear Solenoids

linearlaboratorymaintenance-free

Overview
Kendrion reversing linear solenoids are bidirectional linear solenoids with two magnetic systems. They enable movement in both stroke directions without an external return force and are especially suitable for applications requiring high forces, long strokes, and controllable switching times.

Advantages

• Both stroke directions can be electrically controlled
• No external armature return required
• High forces and long strokes
• Short switching times and smooth operation
• Maintenance-free operation through precise bearing
• Long service life at high switching frequency
• Optional connector with rectifier for AC operation available

Application Areas

• Packaging industry
• Automation technology
• Mechanical engineering
• Industrial automation and safety
• Medical technology and laboratory equipment
• Device technology
• Energy and railway technology

Key Technical Data

• Product type: reversing linear solenoid / bidirectional linear solenoid
• Function: stroke movement controllable in both directions
• Electrical connection: 24 V DC / 230 V AC
• Duty cycle: 5%, 25%, 40%, 100%
• Stroke: 7 mm to 40 mm
• Force: 6 N to 880 N
• Pull-in time: 85 ms to 420 ms
• Thermal class: B
• Device protection rating: IP54
• Connection protection rating: IP65
