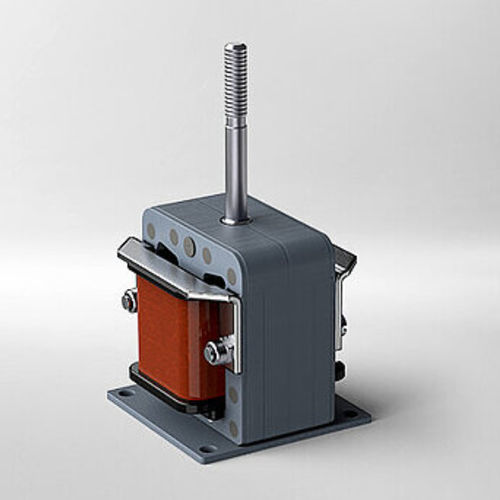

Linear solenoid AC Solenoids

compact24-voltAC

Overview
Kendrion AC Linear Solenoids are linear actuators operated with alternating current. They are designed for very fast switching movements, high attraction forces, and large strokes in a compact design. This makes them suitable for applications where quick actuation and dynamic force behavior are required.

Advantages

• Extremely fast switching times
• Very high attraction forces
• Large stroke in a compact design
• More compact than comparable DC solenoids with similar performance
• Designed to reduce buzzing noise in the closed position
• Available in different types: WL, WTI, and WLF
• WLF version with closed aluminum housing for rougher conditions

Application Areas

• Industrial automation and safety
• Energy technology
• Machine building
• Switchgear construction
• Medical technology and laboratory equipment
• Industrial appliances

Key Technical Data

• Product type: AC linear solenoid
• Types: WL, WTI, WLF
• Supply voltage: 12, 24, 110, 230, 400 V AC / 50, 60 Hz
• Duty cycle: 5% to 100%
• Stroke: 5 mm to 50 mm
• Force: 20 N to 400 N
• Pull-in time: 27 ms to 106 ms
• Release time: 27 ms to 106 ms
• Thermal class: B
• Protection rating: IP00 / IP54
