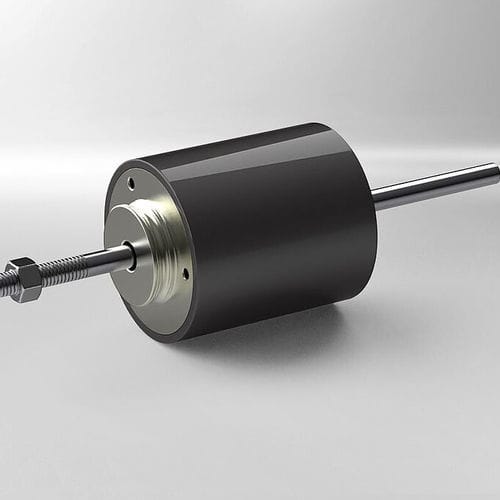

Linear solenoid Heavy Duty Linear Solenoids

high-performancemaintenance-freepower

Overview
Kendrion Heavy Duty Linear Solenoids are robust linear solenoids with closed housings for applications requiring high force and long service life. They are available in cylindrical and square designs and are suitable for demanding industrial, medical, and device technology applications.

Advantages

• Maintenance-free armature bearings
• High lifting force
• Long service life
• Short switching cycles
• Compact design
• Short switching times
• Versatile application options
• Custom versions possible

Application Areas

• Industrial automation and safety
• Medical technology
• Laboratory equipment
• Device technology
• Positioning and locking functions
• Machines and systems with high force requirements

Key Technical Data

• Product type: Heavy Duty Linear Solenoid
• Series: RM series / V series
• Nominal voltage: 24 V DC / 205 V DC, others on request
• Duty cycle: 100% ED, 40 / 25 / 5% ED on request
• Nominal stroke: 3 mm to 30 mm
• Initial force: 1.45 N to 390 N
• Thermal class: B / F
• Protection rating: IP00 to IP54
• Connection protection rating: IP00 to IP65
