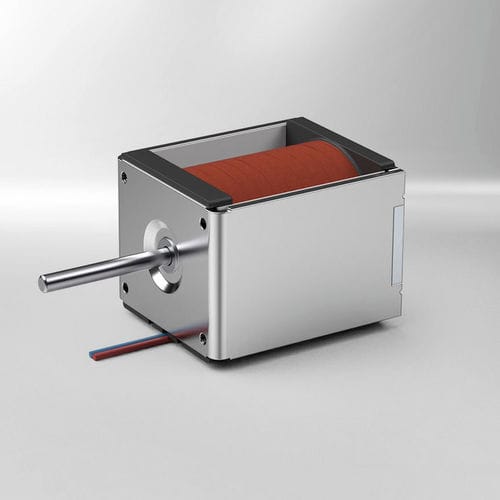

Linear solenoid

custom-madecompactpower

Overview
Kendrion single stroke solenoids are compact linear solenoids for short, precise linear movements. They are available as push, pull, or combi-type solenoids with integrated return spring and can be supplied from stock or adapted to specific application requirements.

Advantages

• Compact design
• Low power consumption
• High forces
• Short switching times
• Maintenance-free operation
• Versatile use
• Custom versions possible, e.g. stroke-force characteristics, mounting holes, operating voltage, duty cycle, or connection type

Application Areas

• Industrial automation and safety
• Access control systems
• Positioning and locking functions
• Medical and laboratory equipment
• Industrial appliances
• Machines and devices with short linear actuation movements

Key Technical Data

• Product type: single stroke linear solenoid
• Versions: push, pull, or combi type with return spring
• Nominal voltage: 24 V DC / 205 V DC, others on request
• Duty cycle: 100%, 40%, 25%, or 5% ED
• Nominal stroke: 1.8 mm to 30 mm
• Initial force: 0.03 N to 35 N
• Thermal stability: E / B
• Protection rating: IP00
