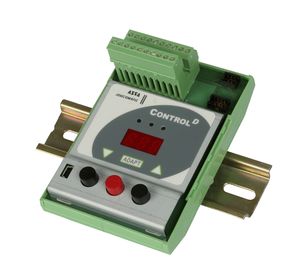

The Control is a PID controller that makes any solenoid valve "intelligent", the choice of solenoid valve depending on the user's application (from among the 601, Posiflow, Preciflow solenoid valves etc), and on the installation, which may be in a critical environment.
The Control can control 2 loops in the same manufacturing process, whether they are open, closed or double (cascaded). For instance:
- In an open loop: the Control adjusts the valve's pressure or flow rate (without a sensor) by measuring the feedback value.
- In a closed loop: the Control continuously compares the set pressure or flow with the set point thanks to a signal emitted by the sensor. The benefits? Very precise control (hysteresis of 1%) that reacts to external interference
- In a double loop (with 2 sensors): the first loop adjusts the valve's pressure or flow for optimum control, while the second loop returns the signal of the relevant feedback value (pressure, position, force etc). Because the process's response time is integrated into the control process as a whole, the latter is more stable.
|
|
LS-C41
Hybrid PID Controller/Driver
The LS-C41 is a complete, high-speed, high-accuracy analog PID controller paired with an efficient PWM-based valve driver to maximize the performance of the LS and M2 Valves.
Features:
* Mutiple PID and Feed Forward Options
* "Nested Loop" Control Architecture
* Adjustable Dither Frequency and Amplitude
* Adjustable Dead-Band Compensation
|
|

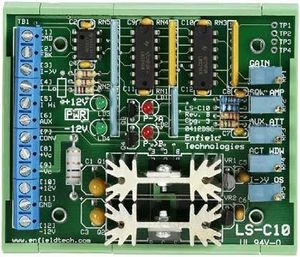

LS-C10
Proportional Controller/Driver
The LS-C10 combines a proportional closed-loop controller with a proportional high current driver. Designed to optimize the performance of the LS and M2 valves, the LS-C10's driver can also control other current driven devices.
Features:
* Proportional Gain Adjustment
* Analog Response and Resolution
* 2 kHz Dither with Adjustable Amplitude
* Regulated Linear Current Output
|
|
|
|
|
|
The Control is a PID controller that makes any solenoid valve "intelligent", the choice of solenoid valve depending on the user's application (from among the 601, Posiflow, Preciflow solenoid valves etc), and on the installation, which may be in a critical environment.
The Control can control 2 loops in the same manufacturing process, whether they are open, closed or double (cascaded). For instance:
- In an open loop: the Control adjusts the valve's pressure or flow rate (without a sensor) by measuring the feedback value.
- In a closed loop: the Control continuously compares the set pressure or flow with the set point thanks to a signal emitted by the sensor. The benefits? Very precise control (hysteresis of 1%) that reacts to external interference
- In a double loop (with 2 sensors): the first loop adjusts the valve's pressure or flow for optimum control, while the second loop returns the signal of the relevant feedback value (pressure, position, force etc). Because the process's response time is integrated into the control process as a whole, the latter is more stable.
|
|
General Description

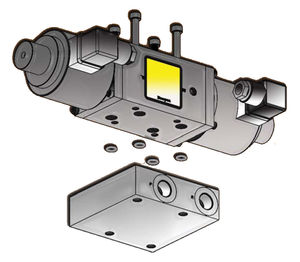

The D3C and D3D Series directional control valves are high-performance, 4-chamber, direct operated, cam controlled, 3 or 4-way valves. They are available in 2- position and conform to NFPA?s D05/CETOP 5 mounting patterns.
Features
Choice of 2 cam roller positions (D3C and D3D)
Short stroke option
High flow, low pressure drop design
|
|
| ... products without technical information |
| |
Normally open or closed solenoid options. Coils range from 12 VDC to 230 VAC coils.
Flow control options include needle valve, flow control with reverse free flow check, or pressure compensated flow control.
All valves are available with adjustment screw, hand knob, calibrated hand knob or fixed settings.
|
|
|
|
|
|
Traditionally, standard valves apply the same pressure for extending and retracting double acting cylinders. However, this newENERGYSAVER® valve revolutionizes the way cylinders are controlled,by reducing the cylinder retract pressure. The Series W60 ENERGYSAVER® valve is a 5-port, 2-position, subbase mounted valve that supplies full line pressure to port 4 and reduced pressure (30 psig - 2 bar) to port 2. This provides full cylinder force to move the load, but returns the cylinder with less pressure thus reducing your compressed air consumption by up to 30%. Although reduced, the pressure in port 2 is enough for quick return of the cylinder. The energy saving function is accomplished by action of the spool and works as quickly as a pressure regulator.
ADVANTAGES:
- Reduces compressed air consumption up to 30%.
- Replaces conventional ISO 5599/I valves without any adaptation.
- Spool & sleeve construction for long valve life.
- Leakage in cylinder and fittings reduced due to low applied pressure.
- Noise reduction.
- Extends life of cylinders and other equipment.
|
|
2 WAY ANTIWATER HAMMER VALVES
2 WAY DIRECT ACTING VALVES
2 WAY DIRECT LIFT VALVES
2 WAY HIGH PRESSURE VALVES
2 WAY INTRINSICALLY SAFE
2 WAY PILOT OPERATED VALVES
2 WAY REMOTE PRESSURE OPERATED VALVES
2 WAY STEAM VALVES
|
|
|
When medical device manufacturers require miniature, high speed miniature solenoid valves with extremely low leak rates for their FDA-approved instruments, they turn to Parker Pneutronics. Proven technical expertise and lean operations ensure that you will keep your technical risks low and your business results high.
|
|
|
|
|
|
No Pressure Differential Design:
For maximum application flexibility these heavy duty solenoid valves have been designed so that no pressure differential is needed for them to operate reliably. Their unique design eliminates problems such as sticking and "chattering" due to system pressure differentials that can affect ordinary solenoid valves. And their performance is not effected by downstream restrictions caused by nozzles, flow meters or other equipment. This is a real benefit in these types of applications. The valve will operate with up to 40 PSI of backpressure and up to 120 PSI of inlet pressure. There are no minimum pressure requirements.
Normally Closed Operation:
When electric power is applied to the solenoid, the electromagnetic coil is energized, opening the valve. When the coil is de-energized, the valve closes.
Innovative Coil Design:
Unique in design, the valve coil rectifies AC current to DC current, resulting in lower coil operating temperatures than other plastic solenoid valves. This permits the coil to be rated for 100% continuous duty applications. Thus, the valve can be left in the open position indefinitely or it can be cycled continuously with no coil damage.
Unique Seal Cartridge:
Hayward Solenoid Valves feature an easy to replace seal cartridge. No fumbling with small parts and o-rings to replace worn seals. Just install the one-piece cartridge containing the plunger assembly and all of the seals.
Corrosion Resistant Coil:
The powerful coil assembly and electronics are completely encapsulated in a molded polyester housing, resistant to the harsh corrosive environments to which solenoid valves are often exposed.
|
|
|
In most refrigeration applications, in order to automatically control the flow of fluids in a system, it is necessary to be able to start or stop the flow in the refrigerant circuit. An electrically operated solenoid valve is usually used for this purpose. Its basic function is the same as a manually operated shutoff valve, but it can be positioned in remote locations, and may be conveniently controlled by simple electrical switches. Solenoid valves can be operated by a thermostatic switch (the most common in refrigeration systems), float switches, low pressure switches, high pressure switches or any other device used for making or breaking an electric circuit.
|
|
Deltrol Controls manufactures low-pressure, direct-acting valves specifically designed to control the flow of water and cleaning solution in floor scrubber applications. They provide excellent flow characteristics and sealing ability. They are manufactured with seal and body materials that are proven to withstand the harsh chemicals used in the floor scrubbing process. Deltrol offers a broad standard product line with many valve and configuration options, as well as the ability to customize a valve for unique applications. These are among the many reasons why Deltrol Controls' valves are already used in many floor scrubber machines.
Visit our website or contact us directly to find out more about our solenoid valves for floor scrubbers.
|
|
The Posi-flate control assembly meets NEMA 4, 4X, 7, 9 and 12 requirements. It consists of three major components - the solenoid valve, the central manifold and the seat sensor cartridge.
The solenoid is available in numerous electrical voltages and can be configured so that the butterfly valve is normally open or normally closed. Clean, dry air at 80 to 115 PSIG is supplied to the solenoid air supply port.
|
|
Directional valves direct the flow of fluid, at the desired time, to the point in a fluid power system where it will perform work.
These valves may be classified in several ways:
- type of control
- the number of ports in the valve housing
- the specific function of the valve
D03 & DO5 Directional Control Valve
· Maximum operated pressure up to 4479 PSI
· Allowed back pressure up to 2276 PSI
· Flow rate up to 21 GPM
· Maximum operating frequencies up to 120 CPM
D07 & DO8 Directional Control Valve
· Maximum operated pressure up to 3555 PSI
· Allowed back pressure up to 1991 PSI
· Flow rate up to 80 GPM
· Maximum operating frequencies up to 120 CPM
|
|
Compact and lightweight Air Filters, Regulators, and Filter/Regulators.
A diaphragm is used in the regulator to provide good regulating performance. Conforms to non-grease
Note specification.
It is easy to install and use at airline ends.
Fittings are supplied with the product as standard, making it easy to connect into applications.
Standard products can be used as non-ion (NCU) specification products (excluding pressure gauge).
|
|
|
|
|
|
The Liquid Controls E-7 Electronic, Two-Stage, Preset Valve is designed for refined fuel applications including gasoline, gasohol, diesel fuel, and fuel oil. The valve is available as part of a complete, new metering system with electronic registration or as a retrofit when upgrading from mechanical to electronic registration. The E-7 valve may be used with M5, M7, and M10
Class 1 meters.
Features of the E-7 Valve include:
- Indexible design for 90° rotational adjustment of valve outlet.
- Interchangeability (same mounting dimensions) with the V-7 and K-7 mechanical valves.
- Two-stage operation for preset deliveries.
- Fast response for quick valve shut-off.
The E-7 Series electronically-actuated piston valve is mounted on the meter outlet and provides a compact installation. The valve is operated by two solenoids. These solenoids control two-stage closure with a dwell period to eliminate hydraulic shock. The valve solenoids are wired to a Liquid Controls LectroCount Electronic Register and are controlled by the register software. During a delivery, the valve opens to allow full flow through the meter. For preset deliveries, the full flow solenoid de-energizes at the point where dwell flow is activated. This reduces the flow rate through the meter. Once the delivery preset volume is reached, the valve fully closes without hydraulic shock to the system.
|
|
| ... products without technical information |
| |
|
|
|
|
2002 Series Valve
Modular reality, plug together flexibility in design! Sub-miniature 3-way and 4-way solenoid air pilot actuated valves. Available in manifold & base mount. Electronic interface options include DeviceNet, Profibus-DP, 1771 Remote I/O, and DeviceLogix.
Standard Specifications:
Cv: 0.20 to 0.25
Port Sizes: 1/8 NPTF, 4mm, 6mm
5 ported, 2 & 3 position, 4 way
Flow Capacity: 11.5 SCFM @ 80 PSIG / 246 NI/m @ 6 bar
Operating Pressure Range: 28" Hg. Vacuum to 150 PSIG / Vacuum to 10 bar
Pilot Pressure Range: 35 to 115 PSIG / 2.5 to 8 bar
Temperature Range (Ambient): -10°F to 115°F / -23°C to 46°C
2004 Series Valve
Modular reality, plug together flexibility in design! Miniature direct solenoid and solenoid air pilot actuated valves. Manifold mounting with DIN rail option. Electronic interface options include DeviceNet, Profibus-DP, 1771 Remote I/O, and DeviceLogix.
Standard Specifications:
Cv: 0.35 to 0.40
Port Sizes: 1/8 & 1/4 NPTF, 4mm
Flow Capacity: 16 to 18 SCFM @ 80 PSIG / 345 to 394 NI/m @ 6 bar
Operating Pressure Range: 28" Hg. Vacuum to 150 PSIG / Vacuum to 10 bar
Pilot Pressure Range: 20 to 115 PSIG / 1.5 to 8 bar
Temperature Range (Ambient): -10°F to +115°F / -23°C to +46°C
|
|
|
|
|
|
CL18 & CL26
Our CL18 & CL26 Series valves offer a low-cost alternative! 4-way solenoid air pilot actuated. Conform to ISO 15407-1. Simple wiring connectivity using 17mm DIN connectors. Available on bar stock manifolds, up to 12 stations.
ISO 5599/2 & 15407-2 Series Valve
Numatics ISO series valves are high speed, heavy duty valves, designed for general service on all types of automation. Valves comply with ISO standard 5599/2 for valve unit to base interchangeability. Direct solenoid and solenoid pilot actuated models available. They are true multi-purpose valves and employ the patented Numatics spool and sleeve assembly.
ISO 5599/1 Series Valve
Numatics ISO series valves are high speed, heavy duty valves, designed for general service on all types of automation. Valves comply with ISO standard 5599/1 for valve unit to base interchangeability. Direct solenoid, solenoid pilot and air pilot actuated models available. They are true multi-purpose valves and employ the patented Numatics spool and sleeve assembly.
|
|
|
Solenoid coils work in conjuction with solenoid valves. The coil provides electrical power to the solenoid valve, causing the solenoid valve to open or close depending on the valve model.
|
|
|
|
