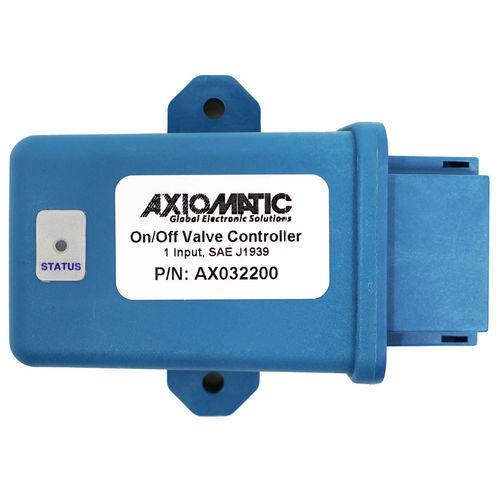

Digital valve controller AX032200

for solenoid valveshydraulic

The 1 Digital Signal to 2 Digital Outputs Valve Controller features 1 digital signal input up to +Vps (ignition switch signal) and 2 digital outputs up to 4 A. It comes in compact, fully sealed enclosure with IP67 protection. This product meets the surge requirements of SAE J1445. Specifications Input(s) 1 Ignition Signal Input 0 to +Vps Optional Input Configuration as One Digital Input with 10K Pull-up or Pull-down Protected against shorts to Ground or +Vps Output(s) High Side Current Sensing, Grounded Load Overcurrent Protected Against Shorts to GND or +Vps Digital On/Off: Sourcing from Power Supply or Off Load at Supply Voltage must not Draw more than 4A Operating Voltage The minimum allowable supply voltage for the power pin is 7 VDC. 12 V or 24 Vdc Nominal; 8…36 Vdc Enclosure Molded Enclosure, Integral Connector Nylon 6/6, 30% Glass Ultrasonically Welded Connection(s) Integral 8-pin receptacle (TE Deutsch equivalent P/N: DT04-08PA) Operating Temperature -40 to 85 ºC -40 to 185 ºF Applications Ignition switch operated valve controller for on/off valves.
