Vehicle detector AX184200

vibrationRTDscanning

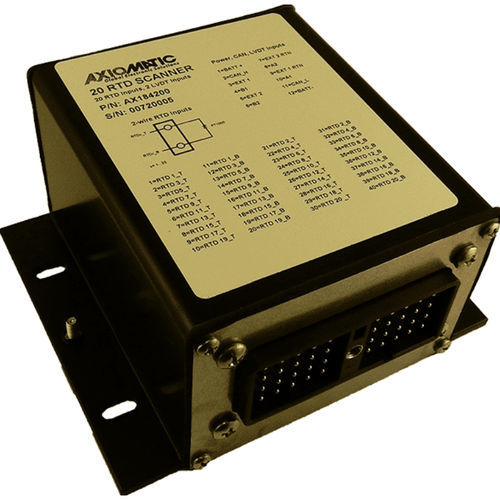

The 20 PT1000 RTD Scanner monitors 20 2-wire PT1000 inputs from a diesel engine and the temperature information is provided to the engine control system over a SAE J1939 CAN bus. Temperature information can include exhaust temperature, winding temperature, and fluid temperature. All channels of temperature data are automatically sent over the CAN bus when power is applied with no additional programming or configuration required. The RTD Scanner is designed to meet the environmental, EMC and vibration requirements of vehicle and power generator set applications. Specifications Technical Specifications Twenty (20) 2-wire PT1000 Inputs CAN, SAE J1939 20 Inputs (200 - 4000 Ohms, Suitable for Pt1000) Operating Voltage 12V, 24V or 48Vdc Nominal (8 to 65 VDC Power Supply Range) Enclosure Rugged Aluminum Housing, Stainless Steel End Plates, Neoprene Gaskets 142.88 x 149.00 x 73.00 mm 5.63 x 5.86 x 2.87 inches (L x W x H) Operating Temperature -40 to 85 ºC -40 to 185 ºF
