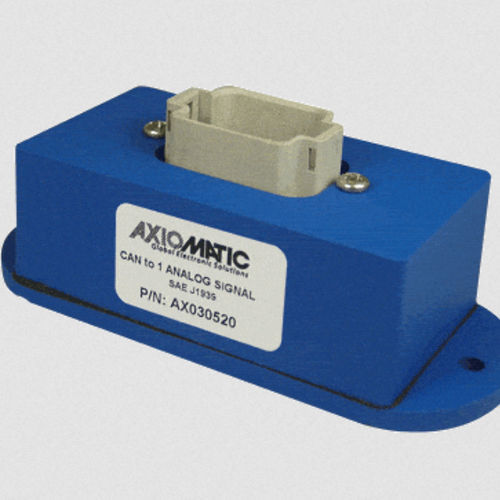

Analog signal converter AX030520

The 1 Analog signal input CAN controller belongs to a family of Axiomatic smart controllers with programmable internal architecture. This provides users with flexibility, allowing them to build their own custom controller with a required functionality from a set of predefined internal functional blocks using the PC-based Axiomatic Electronic Assistant software tool. Application programming is performed through the CAN interface, without disconnecting the controller from the user’s system. Specifications Technical Specifications 1 Analog Signal Output Controller, SAE J1939 Input(s) CAN Messages, SAE J1939 No. of Output(s) 1 Output(s) 1 analog output user selectable from the following. 0-5V, 0-10V, +/-5V, +/-10V, 0-20mA, +/- 20 mA, or 4-20 mA No. of Communication Port(s) 1 CAN Port(s) CAN (SAE J1939) Operating Voltage 12VDC, 24VDC or 48VDC nominal (9...60VDC power supply range) Control Logic Standard embedded software is provided Enclosure Aluminum housing with mounting holes Encapsulated Protection Rating IP67 Operating Temperature -40 to 85 ºC -40 to 185 ºF Compliance CE / UKCA marking User Interface Axiomatic Electronic Assistant P/N: AX070502 or AX070506K Applications Distributed controls for commercial vehicles, off-highway equipment, industrial equipment, etc. Distributed controls for power generation, co-generation, stationary power
