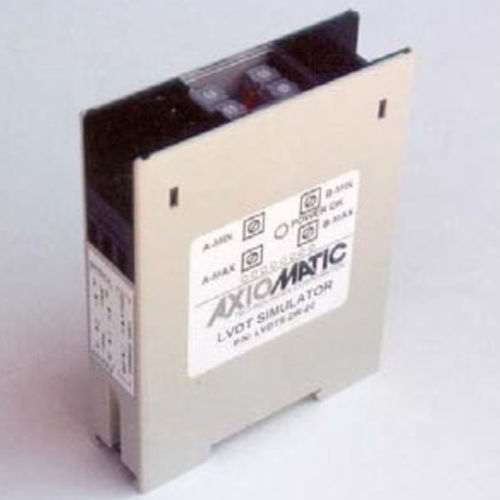

Simulator LVDTS-DR-02

The LVDT/RVDT Simulator is used to test LVDT (Linear Variable Differential Transformer) or RVDT (Rotary Variable Differential Transformer) sensors. Using a 0- 10VDC command signal input and an excitation (drive input), the unit provides two simulation outputs of 1-5VAC. An internal 3kHz oscillator can be used as an alternative excitation source. Both outputs are fully isolated. The unit accepts power supply input from 4 to 32VDC. When the input voltage increases from 0-10VDC, the output voltage A increases from 1 to 5VAC and the output voltage B decreases from 5 to 1VAC. Factory settings for the offset (minimum) and span (maximum) are user adjustable. Phase difference between inputs and outputs is 60 degrees. An LED indicates if the power is ON. The unit is conformal coated and available in a DIN rail mount enclosure. Specifications Input(s) 0-10VDC Command Signal Input 2-10 VAC Drive Input (5VAC Nominal) Output(s) 2 simulation outputs 1-5VAC and 5-1VAC 60° phase difference between input and output signals 1 oscillator output 3kHz, 3VAC Settling Time 30 ms Operating Voltage 4-32 VDC Enclosure 16 Amp max. Current Rating Polycarbonate 75 x 98.5 x 22.5 mm (W x H x D) 2.95 x 3.87 x 0.88 Inches Connection(s) Screw Terminals Accept 14-24 AWG Wire Conformal coated PCB Operating Temperature -40 to 85 ºC -40 to 185 ºF
