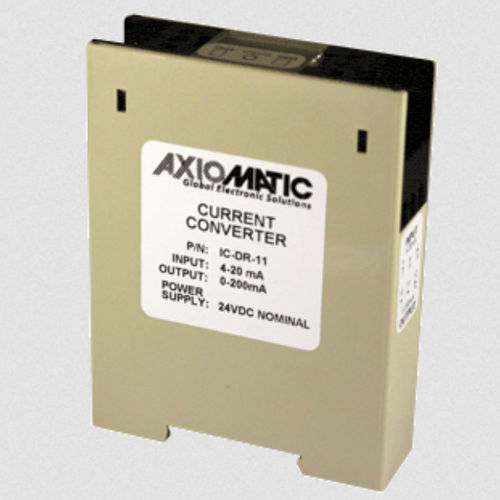

Signal converter IC-DR-11

4-20 mADIN railindustrial

These Current Converters accept a 24Vdc power supply (nominal) and a 4-20mA input signal converting it to a 0-200 mA current output. Span and zero is user adjustable. A diagnostic LED indicates operational status, glowing green when the load, input signal, and power supply are connected. The load should be floating, isolated from ground. The circuit board is conformal coated and the unit is available in a 35 mm DIN rail mount housing. Specifications Input(s) 4-20 mA Output(s) 0-200 mA Operating Voltage 24 VDC Nominal (9-45VDC Operating Range) Enclosure Connection(s) Screw terminals Protection Rating IP40 rated enclosure IP20 rated terminals Conformal coated PCB Operating Temperature -40 to 85 ºC -40 to 185 ºF Applications Mobile Equipment Industrial Controls
