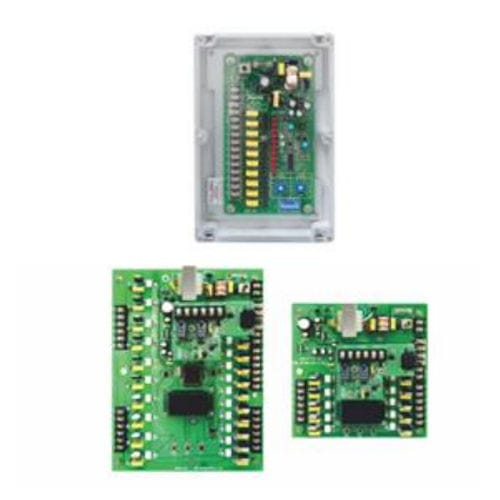

Solenoid valve valve controller AE series

pneumatic

AEX6 is specifically designed for use with pneumatic dust collector systems. It comprises of a microproprocessor and a logic analysis & control circuit, with an output of 10, 20 points (up to 620 points with an expansion board) to control the solenoid of the diaphragm valve which in turn controls the pulse jet sequence of the valves, thus achieving the dust collector's main objective of cleaning the bag liter. The LED display panel indicates the current pulse jet position. Pulse Jet time and interval time can be adjusted. The number of controi points can also be adjusted and Increased. Wide application range, with user-friendly operation. It has an external current input terminal, which can be connected to a differential pressure transmitter used for dust concentration detection. When the current reaches the set value, the fabric bag is attached to a greater degree, and the pulse jet interval is automatically shortened to improve the efficiency of bag cleaning. Continuous low current indicates that the fabric bag has broken and pressure has reduced. A buiit-in relay contact can be used as an alarm output. Description AEX Controller for Dust Collector System AE series is a product line to control dust collector valves. They provide control and sequencing capability to help maintain dust collector efficiency and effectiveness. The AE units are programmable sequencing or differential pressure type controllers. Features 。Programmable sequencing and differential pressure controllers 。Digital display for easy operation and real-time control of operation status. 。Microprocessor control - accurate and precise operation.
