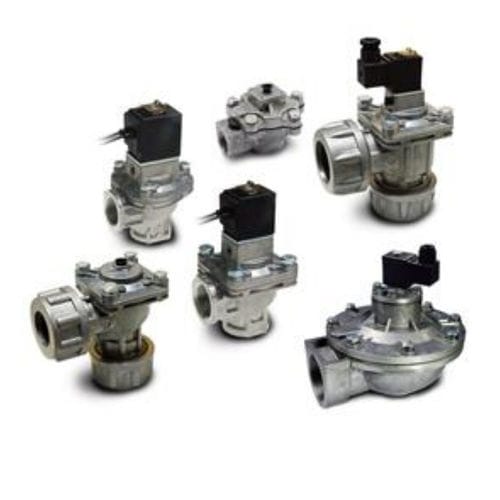

Diaphragm valve BRD series

pneumatically-operatedfor controlfor oil

The BRC/BDV series are used specifically as dust collector valves in dust collector systems. Each valve consists of two air chambers divided by a diaphragm. The two models, BRD and BDV, perform the same function with slightly different designs. They are used to provide a sudden burst of air pressure into dust collector filter bags for cleaning purposes. Description BRC/BDV Series Diaphragm Valve BRC and BDV series are dust collector valves used specifically in dust collector and baghouse systems. The two chambers of the dust collector valves are connected together through an air passage (smaller in diameter than the pilot valve orifice when so equipped). When the orifice is opened, the air in the upper chamber is exhausted, at a much faster rate than the speed of which air enters through the air passage, therfore the air pressure in the upper chamber drops significantly. As this occurs, the higher air pressure in the lower chamber pushes the diaphragm up allowing a large volume of air through to the bottom chamber and its outlet connected to the dust collector bags. This sudden burst of air inflates the filter bags or “pops” the filter bags so as to shake loose accumulated material on the outside of each filter bag. When the orifice closes, the pressure in the upper and lower chambers equalize and the diaphragm returns to its original position, aided by the force of a return spring. The dust collector valves are important components to keep dust collector systems operating efficiently and effectively. Features 。Diaphragm and solenoid valves in a variety of sizes and connections 。Pilot valve, remote solenoid enclosures, fittings and other accessories
